JUNG BT S1 B2 U JUNG HOME Ρελέ 1-πλό Mini με 2 δυαδικές εισόδους

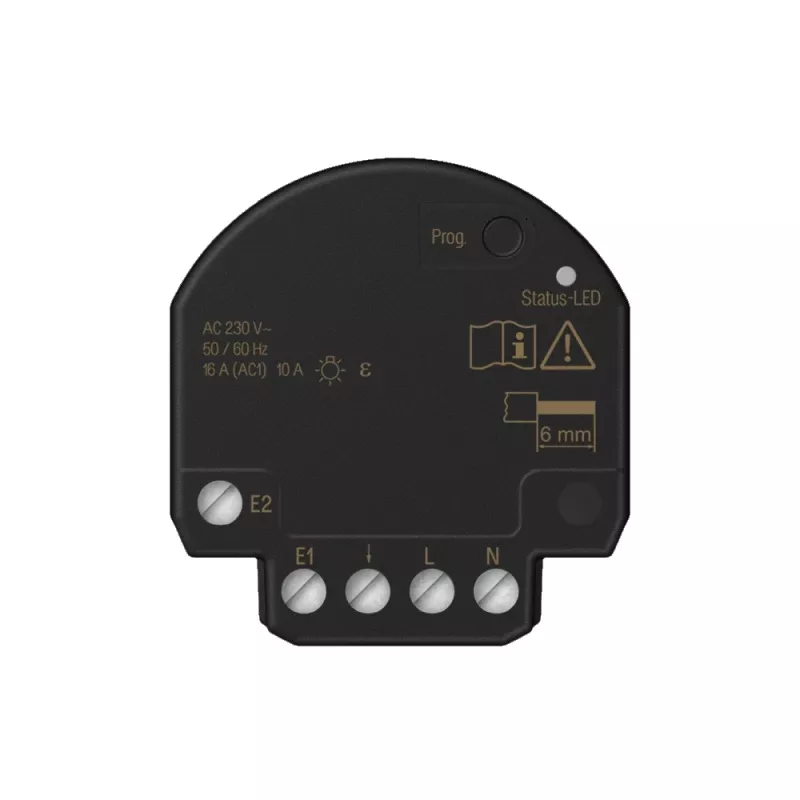

The JUNG BTS1B2U is a compact switching actuator for the JUNG HOME smart home system. It enables convenient and automated control of lighting and electrical loads via the JUNG HOME app or push-buttons. With two independent channels, it is ideal for switching lights, blinds, or other devices in flush-mounted installations.

Advantages

Easy integration into existing JUNG HOME systems; no additional gateway required thanks to Bluetooth Mesh; supports scene and time functions; provides status feedback and overload protection.

Suitable for

• Switching lighting circuits (incandescent, halogen, LED)
• Controlling blinds or shutters
• Automation of small electrical loads in residential and commercial buildings

Key specifications

• Product Type: Switching Actuator
• Smart Home System: JUNG HOME
• Communication Protocol: Bluetooth Mesh
• Number of Channels: 2
• Mounting Type: Flush-mounted
• Supply Voltage: 230 V AC, 50/60 Hz
• Max. Switching Current per Channel (Ohmic): 3 A
• Max. Switching Power per Channel (Incandescent/Halogen): 500 W
• Max. Switching Power per Channel (LED): 60 W
• Standby Power: < 0.5 W
• Protection Class: IP20
• Operating Temperature: -5 °C to +45 °C

Recommendations

For optimal performance, use with JUNG HOME push-buttons and ensure proper flush-mounted box installation. Suitable for DIN 49073-1 boxes.
