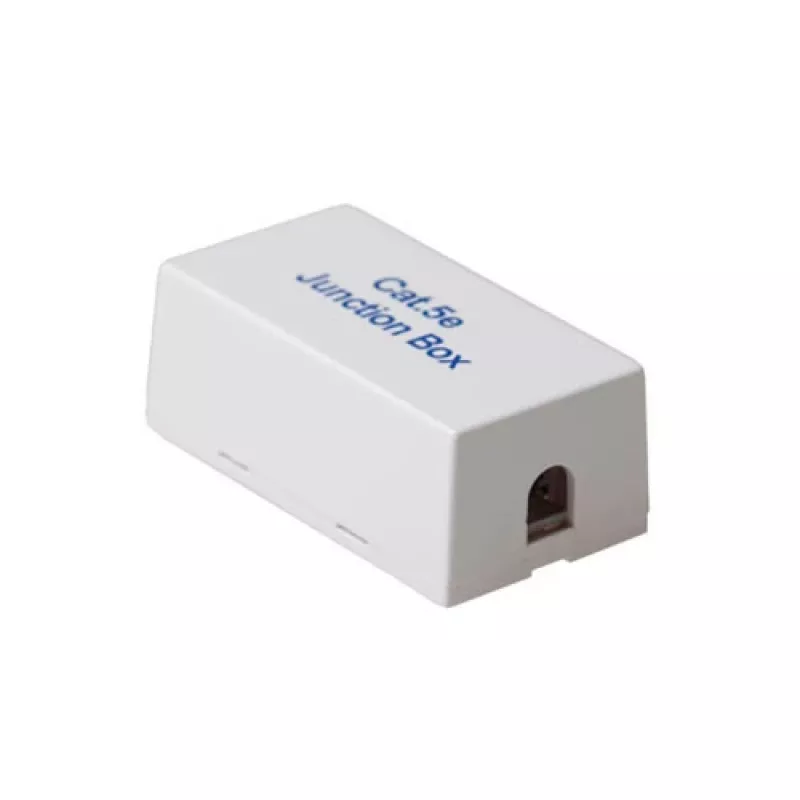

Junction Box unshielded CAT5E ACT SD5021

The ACT Junction Box unshielded CAT5E (SD5021) provides a compact and compliant solution for establishing reliable network connections. It uses a 110 block/Krone punch-down interface compatible with standard 110 and Krone tools and is CE and RoHS certified. The unit’s small footprint—33.7 mm wide, 61.6 mm deep and 23.4 mm high—allows installation in limited spaces and is supplied as a single piece per pack.

Advantages

The junction box supports unshielded CAT5E cabling and accepts both 110 block and Krone punch-down terminations, ensuring compatibility with common installation tools. Its compact dimensions make it suitable for tight mounting locations, while CE and RoHS certifications confirm conformity with relevant safety and environmental requirements.

Suitable for

• Residential and small office Ethernet terminations
• Patch panel or wall-box extension points
• Local network repairs and quick cable joins
• Installations requiring 110 or Krone punch-down tools

Key specifications

• Model: ACT SD5021
• Type: Junction Box, unshielded CAT5E
• Termination: 110 block / Krone punch-down compatible
• Dimensions: 33.7 mm (W) × 61.6 mm (D) × 23.4 mm (H)
• Certifications: CE, RoHS
• Package contents: 1 unit per pack

How to use

Position the junction box at the desired mounting point and route the unshielded CAT5E cables into the box. Terminate each conductor onto the 110/Krone punch-down block using a compatible 110 or Krone tool, ensuring correct pair alignment and secure punch-down connections. Close or secure the box as required by the installation to protect terminations from strain and environmental exposure.

Recommendations

Use standard 110 or Krone punch-down tools for reliable terminations. Verify cable pairs with a network tester after installation and avoid bending cables sharply near the termination points to maintain signal integrity.
