JULTEC JPS0501-16M μετατροπέας μονού καλωδίου Unicable II 1/16 UB

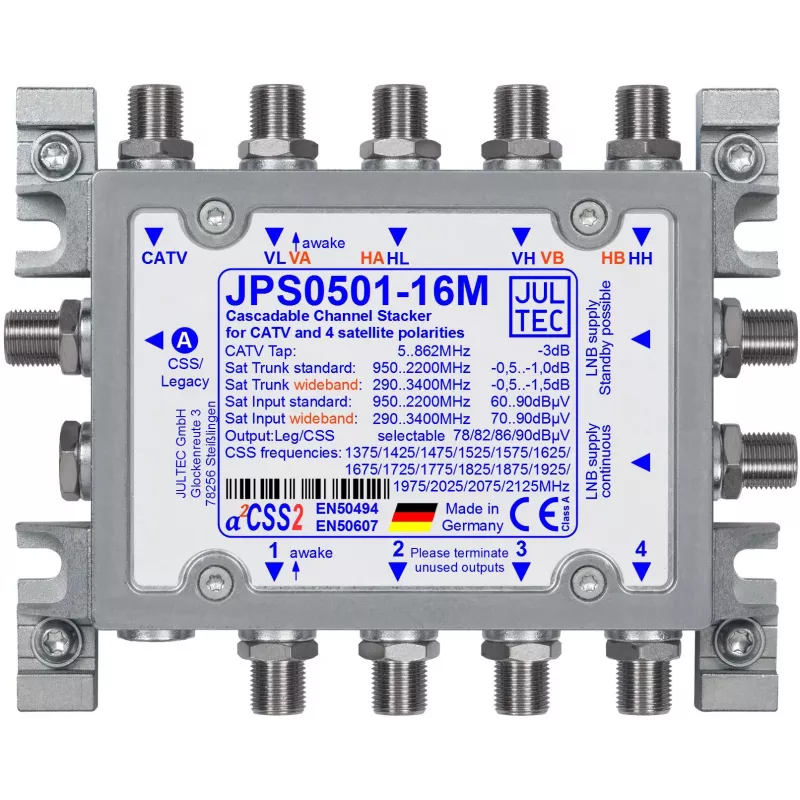

The JULTEC JPS0501-16M is a professional single cable converter (Unicable II / JESS) designed to distribute satellite and terrestrial signals to up to 16 user bands over a single coaxial cable. Ideal for multi-room installations, it converts four SAT IF inputs from a Quattro LNB or multiswitch and one terrestrial input into a single Unicable output, supporting both EN50494 (Unicable I) and EN50607 (Unicable II / JESS) protocols.

Advantages

Simplifies cabling by using only one cable per drop, reduces installation costs, and supports up to 16 independent user bands for flexible TV distribution. Compatible with DiSEqC control and features a passive terrestrial loop-through for antenna signals.

Suitable for

• Multi-room satellite TV installations
• Hotels, apartment buildings, and single-family homes
• Upgrading existing single-cable systems to Unicable II

Key specifications

• Product Type: Single Cable Converter (Unicable II / JESS)
• Number of SAT IF Inputs: 4 (for Quattro LNB or Multiswitch)
• Number of Terrestrial Inputs: 1
• Number of Unicable Outputs: 1
• Number of User Bands (UBs): 16
• SAT IF Input Frequency Range: 950 - 2150 MHz
• Terrestrial Input Frequency Range: 5 - 862 MHz
• Unicable Output Frequency Range: 950 - 2150 MHz (User Programmable)
• Supported Protocols: EN50494 (Unicable I), EN50607 (Unicable II / JESS)
• DiSEqC Support: DiSEqC 1.0, 1.x, 2.x
• Max. SAT Output Level (Unicable): 90 dBµV
• Power Supply: External (e.g., 18V DC) or via receiver
• Power Consumption (without LNB): ~150 mA
• LNB Power Supply: Yes (for Quattro LNB)
• Configuration Interface: USB (via optional JPC03 programmer)
• Housing Material: Die-cast zinc
• Operating Temperature: -20 to +50 °C
• Terrestrial Loop-through: Yes (passive)

Recommendations

For optimal performance, use with a Quattro LNB and ensure the receiver supports Unicable II. Configuration requires the optional JPC03 USB programmer.
