JAVEL Πρίζα με γείωση 1 μονάδα χωνευτή λευκό 16A 250V

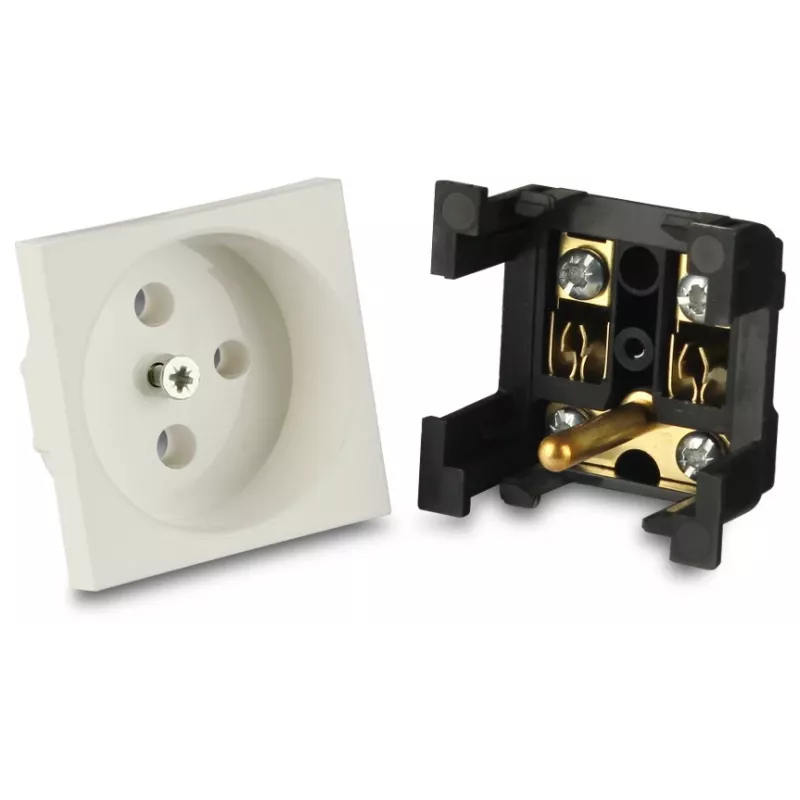

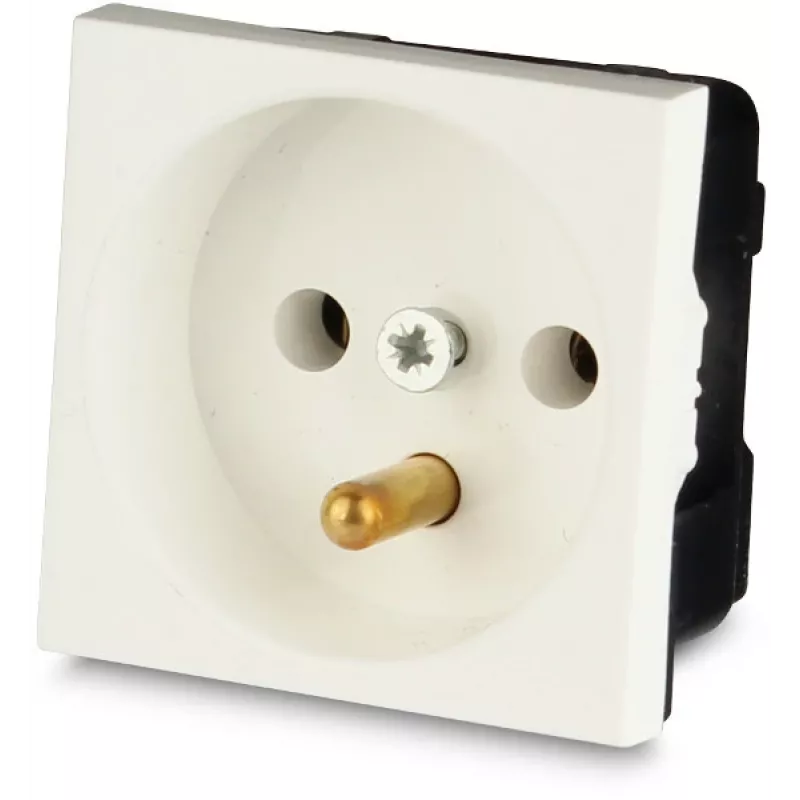

The JAVEL Single Earthed Socket is a high-quality electrical socket designed for indoor residential and commercial installations. Manufactured from durable thermoplastic (PC/ABS), this flush-mounted socket offers reliable performance and a modern square design. It features child protection shutters for enhanced safety and screw terminals for secure connections. Rated at 16A and 250V AC, it is suitable for a wide range of applications.

Advantages

This socket combines safety, durability, and ease of installation. The integrated child protection shutters prevent accidental insertion of objects, making it ideal for homes with children. The high-quality thermoplastic material ensures long-lasting performance and resistance to impact. Screw terminals provide a secure and stable connection for wires up to 2.5 mm². Its flush-mounted design offers a clean, unobtrusive appearance.

Suitable for

• Indoor residential rooms (living rooms, bedrooms, kitchens)
• Commercial offices and retail spaces
• Flush-mounted electrical installations in walls
• Single module applications requiring a standard earthed socket

Key specifications

• Socket Type: Single Earthed Socket (Polish/French standard pin earthing)
• Rated Current: 16 A
• Rated Voltage: 250 V AC
• Frequency: 50/60 Hz
• Number of Poles: 2P+E
• Mounting: Flush-mounted
• Connection: Screw Terminals (up to 2.5 mm²)
• Material: High-quality Thermoplastic (PC/ABS)
• Colour: White
• IP Rating: IP20
• Child Protection Shutters: Yes
• Installation Depth: Approx. 30 mm
• Operating Temperature: -5°C to +35°C
• Certifications: CE, RoHS
• Design: Modern, Square

Recommendations

For optimal performance, ensure that the socket is installed by a qualified electrician in accordance with local regulations. Use appropriate cable sizes and ensure the circuit is protected by a suitable fuse or circuit breaker. This socket is designed for indoor use only and should not be exposed to moisture or extreme temperatures.
