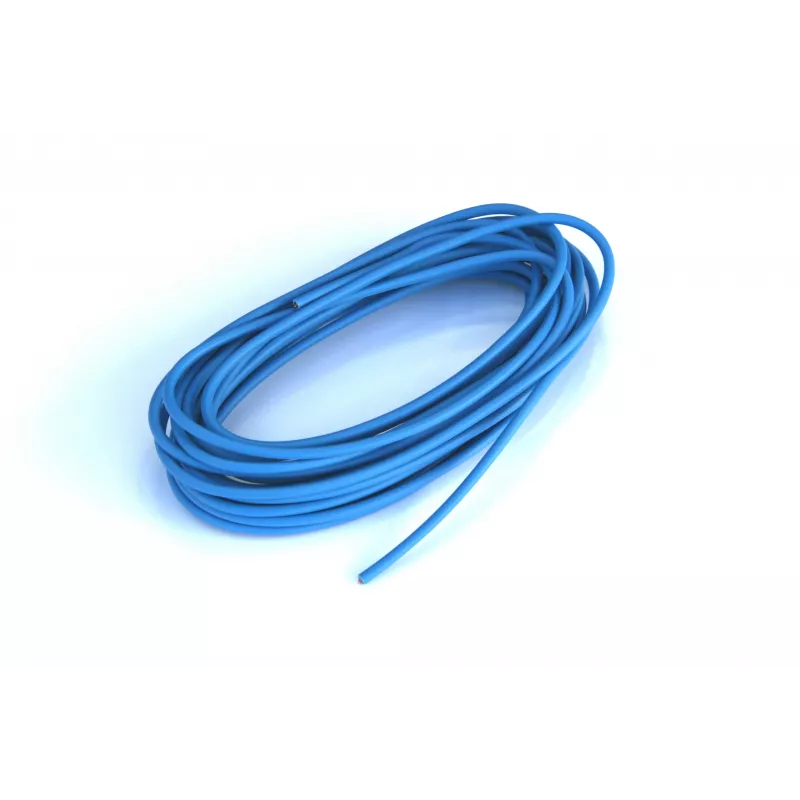

IWH Καλώδιο οχήματος 5m, 1,5mm², μπλε (19038)

This single-core vehicle cable stands out for its fine-stranded electrolytic copper conductor and reduced-wall PVC insulation, making it flexible and easy to route in tight automotive spaces. The blue insulation provides clear identification for low-voltage circuits.

Highlights

• Conductor cross-section: 1.5 mm²
• Length: 5 m
• Insulation colour: blue
• Temperature range: -40°C to +105°C
• Complies with DIN 72551 and ISO 6722

In daily use

Ideal for automotive wiring, trailer connections, and caravan electrics. The cable is self-extinguishing and suitable for nominal voltages up to 60 V DC or 50 V AC.

Full specifications

• Cable type: single-core vehicle cable
• Conductor material: electrolytic copper (E-Cu)
• Conductor construction: fine-stranded
• Insulation material: PVC (polyvinyl chloride)
• Insulation type: FLRY-B (reduced wall thickness, asymmetrical)
• Outer diameter: 2.2 – 2.5 mm
• Resistance at 20°C: max. 12.7 Ohm/km
• Packaging: ring / coil

Final note

A dependable choice for low-voltage vehicle electrical systems, offering flexibility and durability.
