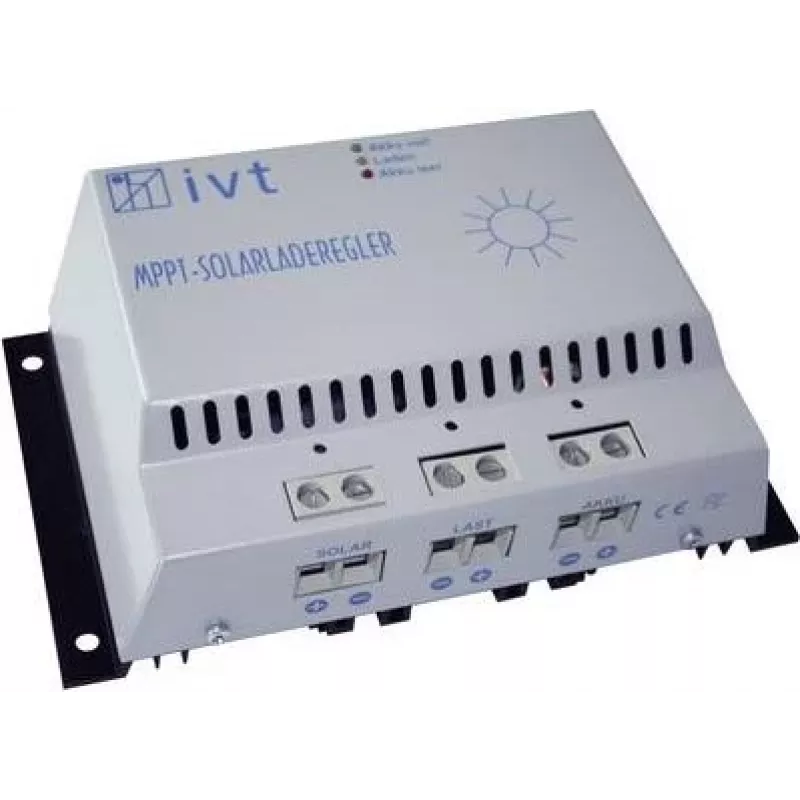

IVT MPPT ηλιακός ρυθμιστής φόρτισης 30 A, 12/24 V, LCD, RS485 18319

Solar systems often waste energy because traditional PWM controllers cannot fully utilise the power from modern solar panels. The IVT MPPT Solar Charge Controller 30 A solves this by using Maximum Power Point Tracking to extract the maximum available power from your PV array, even under changing light and temperature conditions. It supports both 12 V and 24 V battery systems with automatic detection and works with lead-acid (GEL, AGM, flooded) and lithium (LiFePO4) batteries.

Who is it for

This controller is for off-grid solar installations, motorhomes, boats, and remote cabins where efficient battery charging is essential. It suits users who need a reliable, high-performance charge controller with advanced monitoring and communication options.

Main features

• MPPT technology with tracking efficiency over 99.5% and conversion efficiency over 98%
• 30 A maximum charging and load current
• Automatic 12 V / 24 V system voltage detection
• Supports lead-acid (GEL, AGM, flooded) and lithium (LiFePO4) batteries
• LCD display for real-time system status
• RS485 communication port for remote monitoring and control
• Comprehensive protection: overcharge, over-discharge, reverse polarity, short circuit, over-temperature, over-current
• Multi-stage charging (bulk, boost, float, equalization)
• Common negative grounding
• Operating temperature range: -20°C to +50°C

Specifications

• Charging technology: MPPT
• Max charging current: 30 A
• System voltage: 12 V / 24 V (auto-detection)
• Max PV input voltage (Voc): 100 V
• Max PV input power: 390 W (12 V system), 780 W (24 V system)
• MPPT tracking efficiency: >99.5%
• Conversion efficiency: >98%
• Self-consumption: <10 mA
• Grounding: common negative
• Display: LCD
• Communication port: RS485
• Load output current: 30 A
• Enclosure protection rating: IP30
• Max wire size: 16 mm² (AWG 6)

Tips

For optimal performance, ensure the PV array voltage is within the controller's input limits and use appropriate wire gauge to minimise losses. The optional external battery temperature sensor improves charging accuracy in varying temperatures.
