IT-BUDGET Εργαλείο τοποθέτησης LSA για καλώδια δεδομένων σε πίνακες σύνδεσης LSA (90ITBLSA)

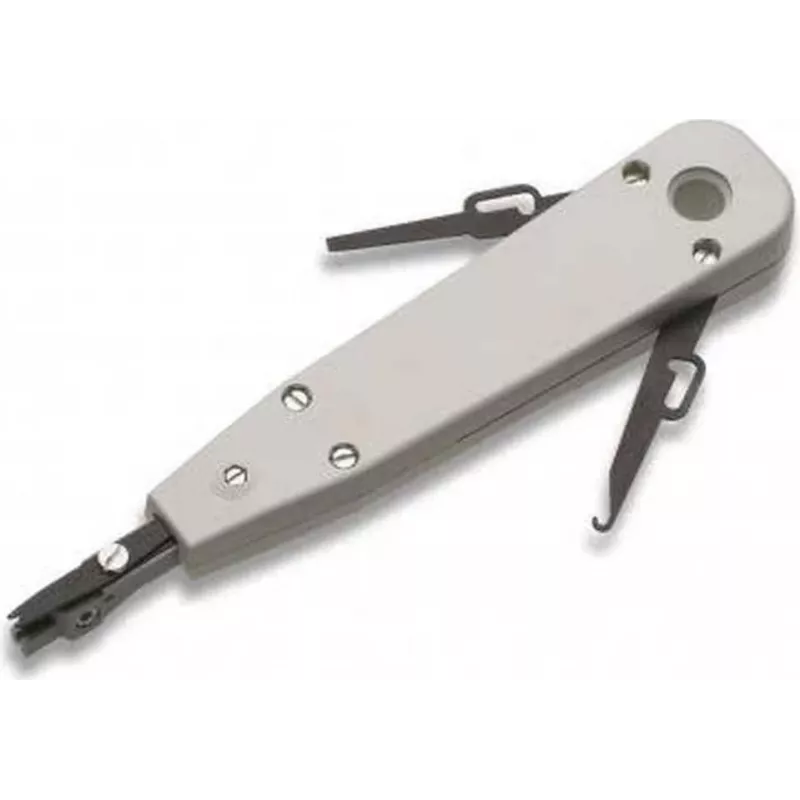

LSA punch down tool for terminating data cables onto LSA-Plus and Krone-compatible connection strips. The impact mechanism seats solid and stranded conductors (AWG 22-26) with one motion, while the selectable cut-off blade trims excess wire in the same step.

Advantages

Hardened steel blade and high-impact ABS housing withstand frequent use in network installation and telecommunications. The integrated wire extraction hook and connection strip removal blade reduce tool changes on site.

Suitable for

• Terminating data cables on LSA modules
• Network and telecommunications infrastructure
• IT cabling with solid or stranded conductors

Key specifications

• Tool type: LSA punch down tool
• Compatibility: LSA-Plus and Krone-compatible strips
• Wire gauge: AWG 22-26
• Cut-off function: selectable
• Blade material: hardened steel
• Housing material: high-impact ABS plastic
• Termination standards: TIA/EIA-568-A/B

Recommendations

For installers who need a reliable punch down tool with integrated cutting and extraction functions for LSA connection strips.
