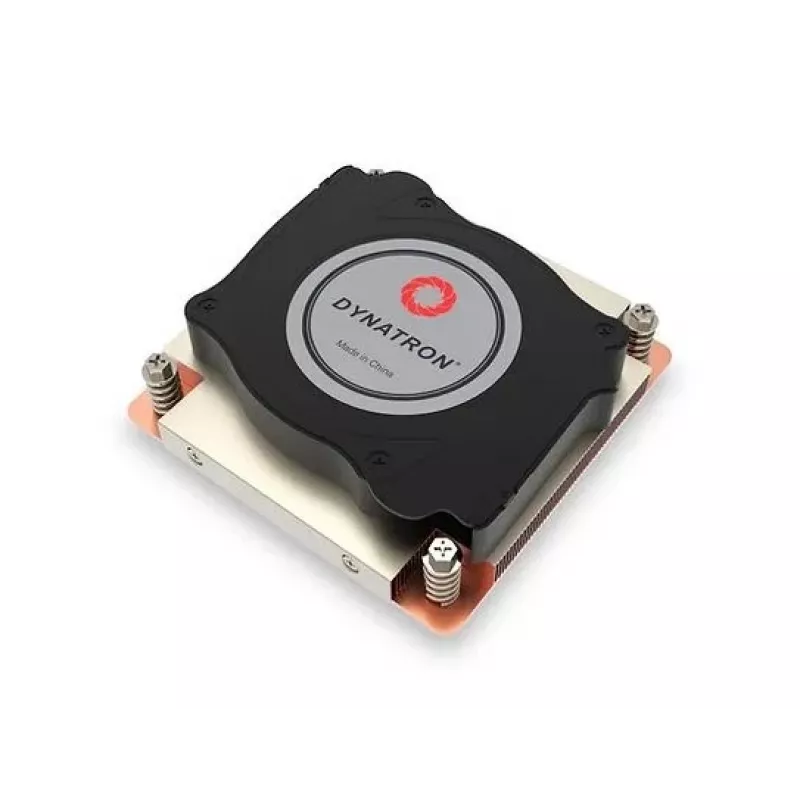

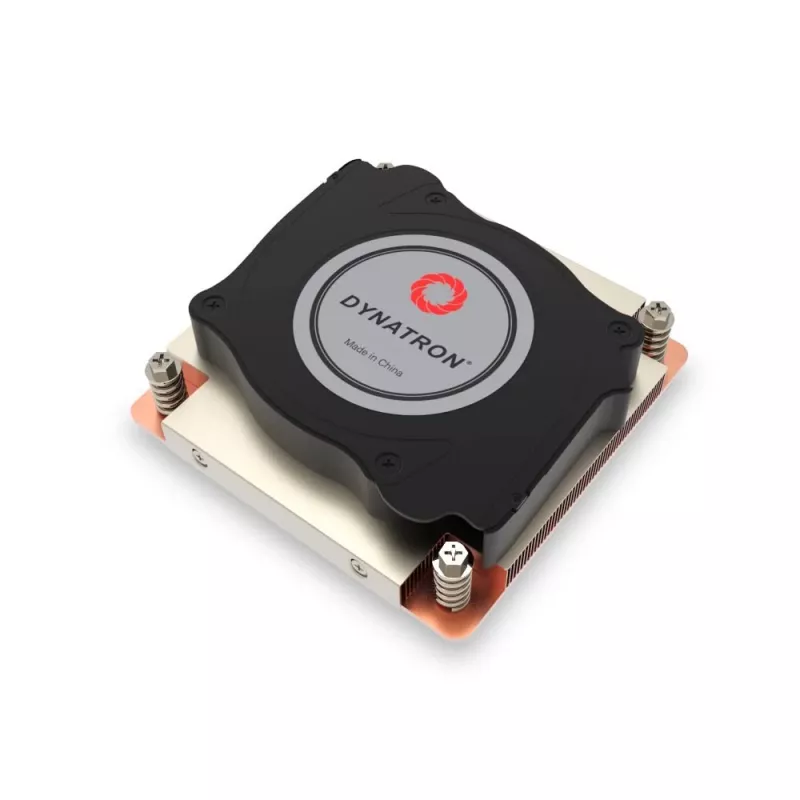

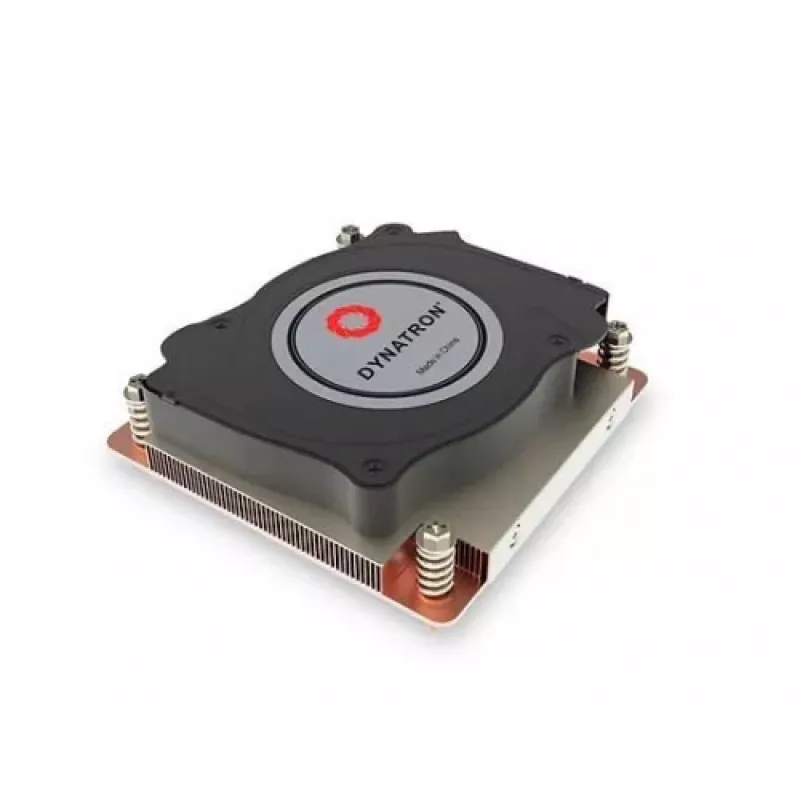

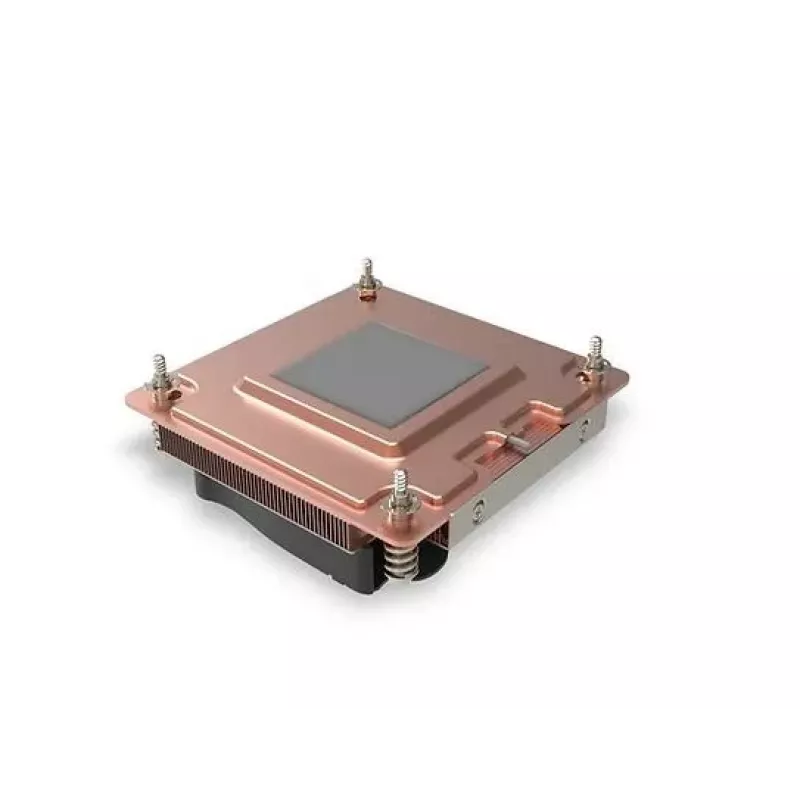

Inter-Tech Dynatron Q-7 1U ενεργή ψύκτρα CPU για Intel LGA 1700

In dense 1U server racks where every millimetre of height matters, the Inter-Tech Dynatron Q-7 keeps Intel LGA 1700 processors cool without exceeding the 1U form factor. Its active cooling design pairs an aluminum heatsink with a copper core to draw heat away from the CPU, while a 90 mm PWM fan adjusts speed between 1000 and 2500 RPM to match thermal load. This cooler is built for system integrators and IT administrators who need reliable, low-profile cooling in rackmount servers, network appliances, and compact workstations.

Key specifications

• Socket compatibility: Intel LGA 1700
• Cooler type: Active air cooler
• Form factor: 1U rackmount
• Heatsink material: Aluminum with copper core
• Fan dimensions: 90 x 90 x 15 mm
• Fan speed: 1000 - 2500 RPM (PWM)
• Airflow: 17.0 - 42.5 CFM
• Noise level: 17.0 - 30.0 dB(A)
• Bearing type: Hydraulic bearing
• Fan connector: 4-pin PWM
• Rated voltage: 12 V DC
• Rated current: 0.15 A
• Life expectancy (MTBF): 40,000 hours

Why choose it

The Q-7 is engineered for 1U environments where standard coolers simply won't fit. Its low-profile design and PWM control allow the fan to run quietly at idle and ramp up under load, balancing cooling performance with acoustic comfort. The copper core improves heat transfer from the CPU, while the hydraulic bearing ensures long-term reliability in always-on server deployments.

Ideal use cases

• 1U rackmount servers using Intel LGA 1700 CPUs
• Compact network appliances and storage nodes
• Small form factor workstations requiring low-profile cooling
• Data center environments with limited vertical clearance

Good to know

The cooler supports processors with a TDP of up to 95 W, making it suitable for a range of mainstream Intel Core and Xeon E-series chips. Installation uses a screw mounting system for secure attachment to the motherboard. The fan's PWM connector allows automatic speed control via the motherboard's BIOS or fan management software.
