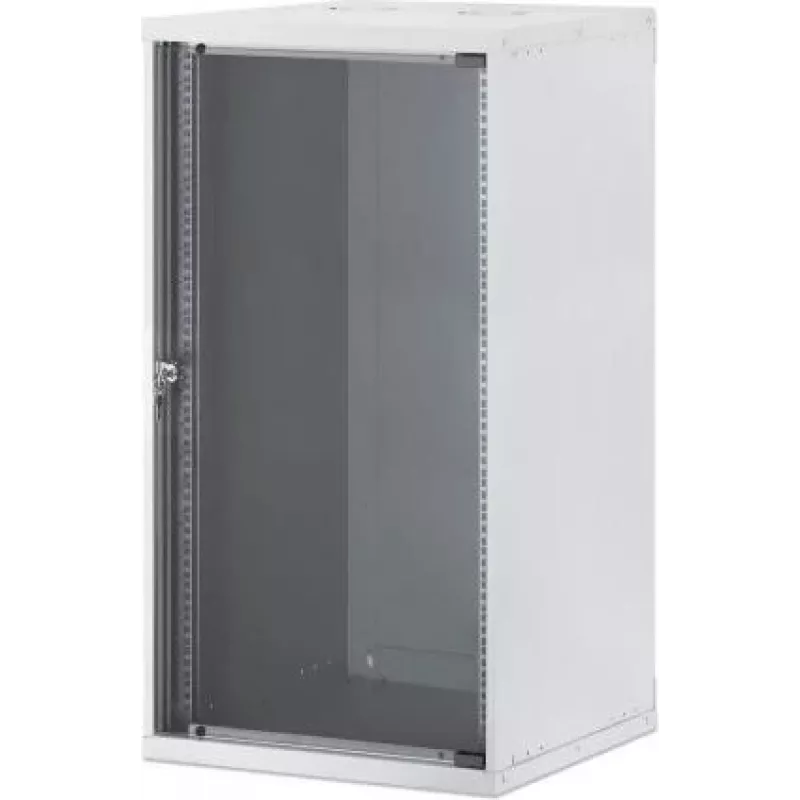

Intellinet Θήκη rack τοίχου 19 ιντσών Basic Line 20U βάθος 560mm γκρι RAL 9005 716802

Organizing network equipment in small spaces can be a challenge. The Intellinet 19" Wall-Mount Rack Cabinet Basic Line 20U provides a secure, space-saving enclosure for servers, patch panels, and networking gear, whether mounted on the wall or placed on the floor with optional castors.

Who is it for

IT professionals and businesses needing a compact, affordable rack solution for network equipment in offices, server rooms, or industrial environments where floor space is limited.

Main features

• 20U capacity with adjustable front and rear 19" mounting rails
• Flatpack design for easy transport and self-assembly
• Grey RAL 9005 finish with tempered glass front door and security lock
• Removable side panels with quick release and lock
• Top and bottom cable entry with brush strips for clean cable management
• Passive ventilation with option to mount fans
• Maximum static load capacity of 60 kg
• Optional castors for mobility

Specifications

• Rack standard: 19-inch
• Rack units: 20U
• External dimensions (W x D x H): 600 x 560 x 1000 mm
• Material: SPCC cold rolled steel
• Mounting type: Wall-mountable or freestanding
• Front door: Tempered glass with security lock
• Side panels: Removable with quick release and lock
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive (fan mounting possible)
• Maximum static load capacity: 60 kg
• Protection class: IP20
• Compliance: EIA-310-D

Tips

For improved airflow in high-density installations, consider adding optional fan units. Use the adjustable rails to accommodate equipment of varying depths.
