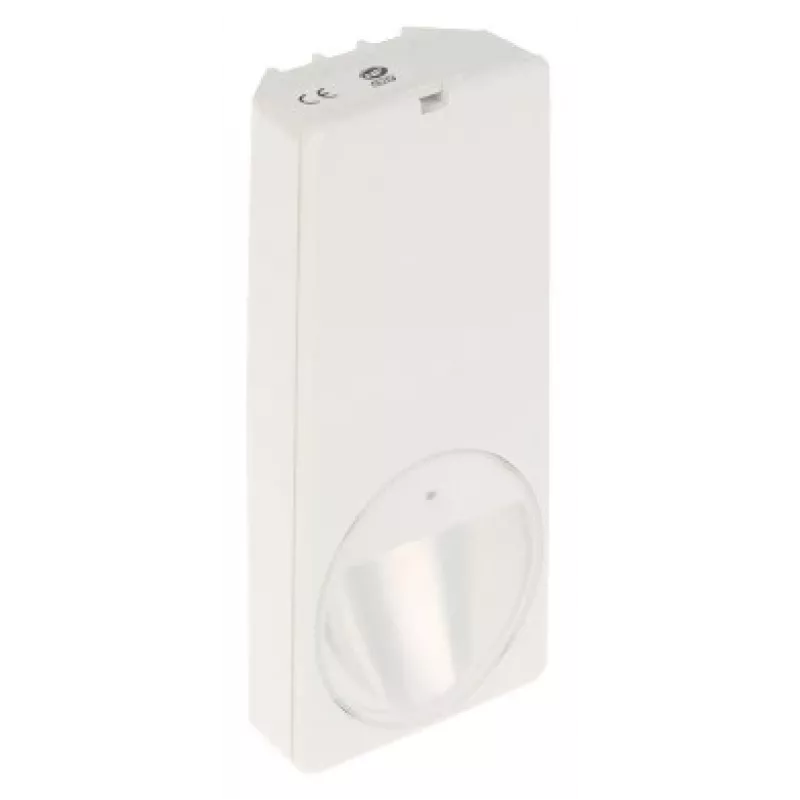

INNE Διπλός ανιχνευτής Microwave + PIR PDM-IXA12T

The INNE PDM-IXA12T is a professional dual technology motion detector combining passive infrared (PIR) and microwave sensing for reliable intrusion detection. Designed for wall-mount installation, it offers a 12m x 12m detection range and a 90-degree angle, making it ideal for commercial and residential security applications.

Advantages

Dual technology reduces false alarms by requiring both PIR and microwave triggers (AND logic) or allowing either (OR logic). Features active IR anti-masking, advanced temperature compensation, and double conductive shielding for robust performance in challenging environments.

Suitable for

• Indoor security systems in offices, warehouses, and homes
• Areas requiring high immunity to false alarms
• Installations where anti-masking is critical

Key specifications

• Detection Technology: Dual (PIR + Microwave)
• Detection Range: 12m x 12m (40ft x 40ft)
• Detection Angle: 90 degrees
• Mounting Height: 1.5m - 2.4m (5ft - 8ft)
• Power Supply: 9.5 - 16 VDC
• Current Consumption: 25 mA max
• Alarm Output: N.C. 28VDC, 0.2A max
• Tamper Output: N.C. 28VDC, 0.1A max (Cover Tamper)
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Environmental Protection: IP54
• Anti-Masking: Yes (Active IR)
• Microwave Frequency: 10.525 GHz
• PIR Zones: Multi-level (e.g., 78 zones)
• Sensitivity Adjustment: PIR and Microwave (Independent)
• Detection Logic: AND/OR selectable
• Walk Test Mode: Yes
• LED Indicators: Alarm, PIR, MW, Anti-masking
• Housing Material: ABS Resin
• Installation Method: Wall Mount

Recommendations

For optimal performance, mount at recommended height and avoid obstructions. Test walk test mode after installation. Suitable for use with compatible security panels.
