InLine βάση τοίχου για TFT 58-107cm 23 - 42 ίντσες μέγ. 30kg

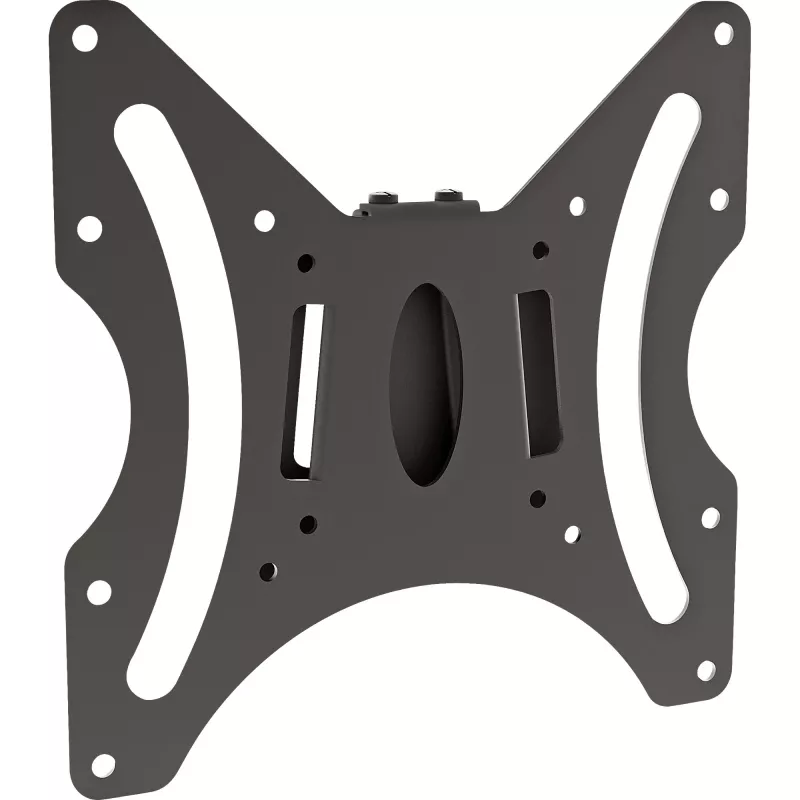

The InLine Wall Bracket is designed for TFT screens from 23" to 42" (58–107 cm) and supports VESA patterns from 75 x 75 mm up to 200 x 200 mm. It has a maximum load capacity of 30 kg and a slim profile with a minimum distance to the wall of 1.4 cm. The bracket is finished in black and is intended for fixed wall mounting of compatible monitors and TVs.

Advantages

The bracket provides a compact installation with a minimal 1.4 cm clearance from the wall, supports common VESA standards up to 200 x 200 mm and carries screens up to 30 kg. Its black finish offers neutral appearance suitable for various interiors. The design simplifies secure mounting of TFT displays within the specified size and weight limits.

Suitable for

• Mounting TFT monitors and small TVs 23"–42" (58–107 cm)
• Displays with VESA 75 x 75 mm up to 200 x 200 mm
• Installations requiring a low-profile wall mount

Key specifications

• Maximum screen size: 23"–42" (58–107 cm)
• Maximum weight capacity: 30 kg

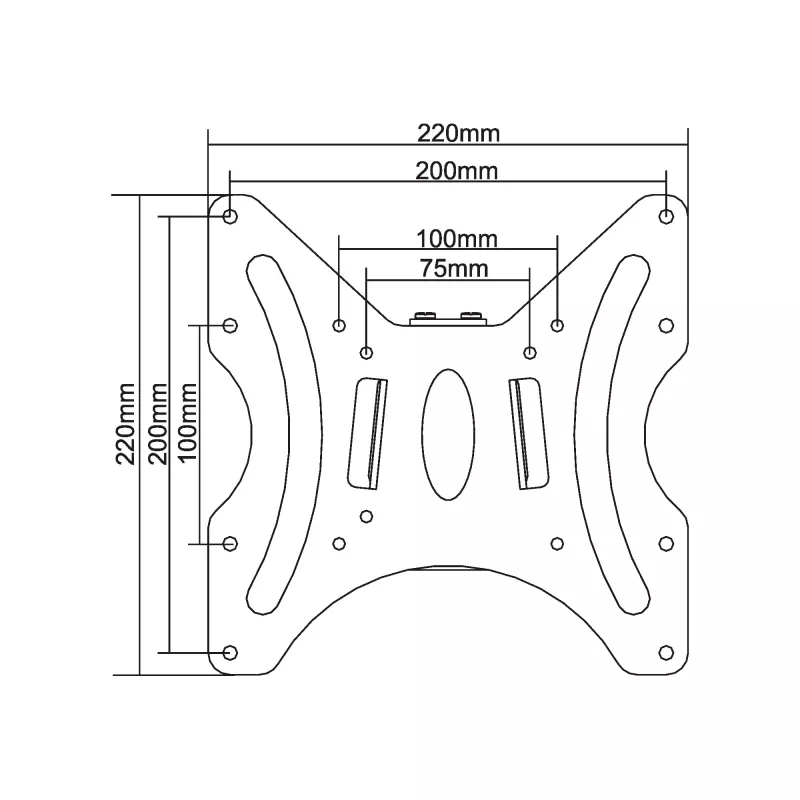

• Supported VESA mounts: 75 x 75 mm to 200 x 200 mm
• Minimum distance to wall: 1.4 cm
• Colour: Black

How to use

Confirm that your screen falls within the supported size and weight limits and that the VESA mounting holes match one of the supported patterns. Attach the bracket to a suitable load-bearing wall using appropriate anchors and screws (not included), then fix the monitor to the bracket following the VESA mounting points. Verify stability and tighten all fasteners according to the monitor manufacturer’s torque recommendations.

Recommendations

Use appropriate wall anchors for the wall material (concrete, brick, or stud), do not exceed the 30 kg weight limit, and periodically check mounting screws for firmness to ensure safe, long-term installation.
