InLine Βάση τοίχου, για οθόνες έως 69 cm (27 ίντσες), μέγιστο 15 kg

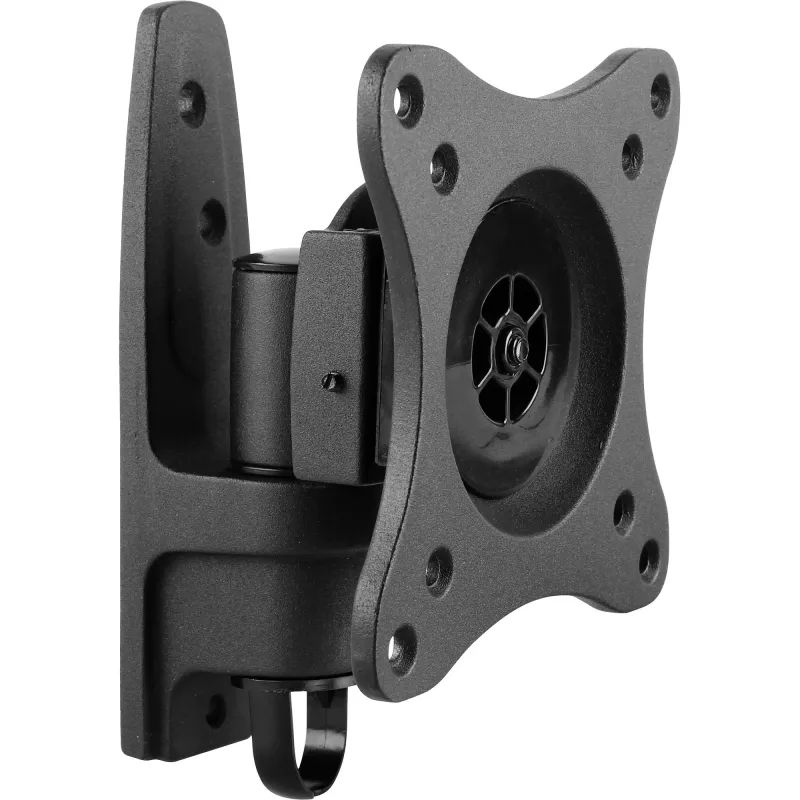

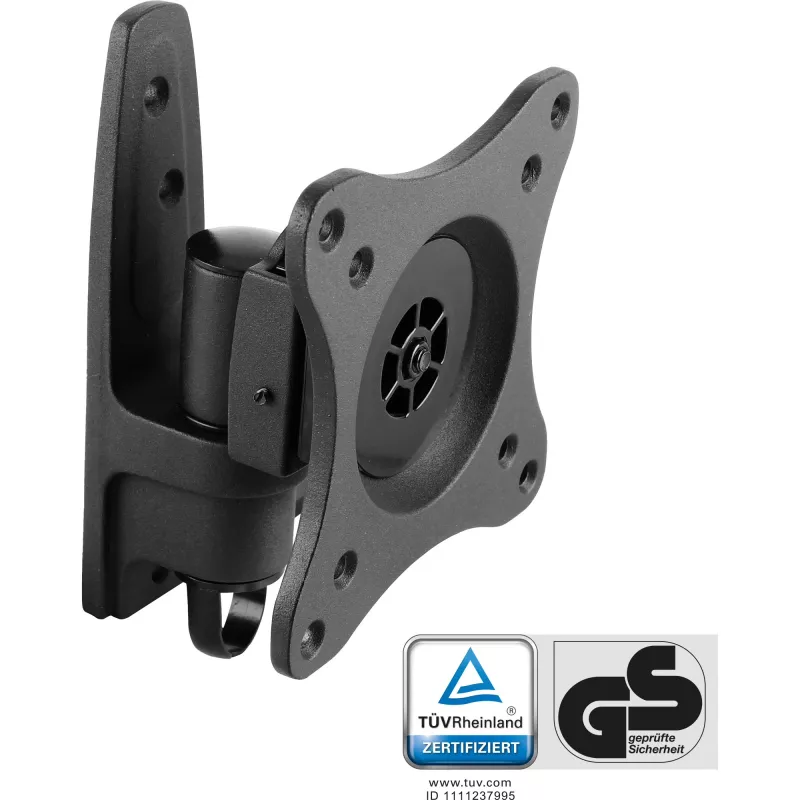

The InLine wall mount 23107D for monitors up to 69cm (27") is a compact fixed-and-adjustable bracket designed to hold a single display up to 15 kg. It is compatible with VESA 75 x 75 mm and 100 x 100 mm patterns and provides tilt and swivel adjustments while keeping the display close to the wall with a minimal extension of 8.8 cm. Finished in black, the mount is intended for residential and light-commercial installations where a stable, low-profile solution is needed for smaller monitors.

Advantages

The wall mount offers a small footprint and secure support for monitors within its weight limit, enabling tilt from -15° to 15° and swivel from -60° to 60° to achieve optimal viewing angles. Its shallow extension reduces the amount of space taken up by the monitor while maintaining stability. Compatibility with common VESA patterns simplifies installation and device interchangeability.

Suitable for

• Home offices and study desks where space is limited
• Reception areas and point-of-sale stations with compact screens
• Bedrooms or living rooms for secondary monitors or small TVs
• Workshops and production stations that need an adjustable display

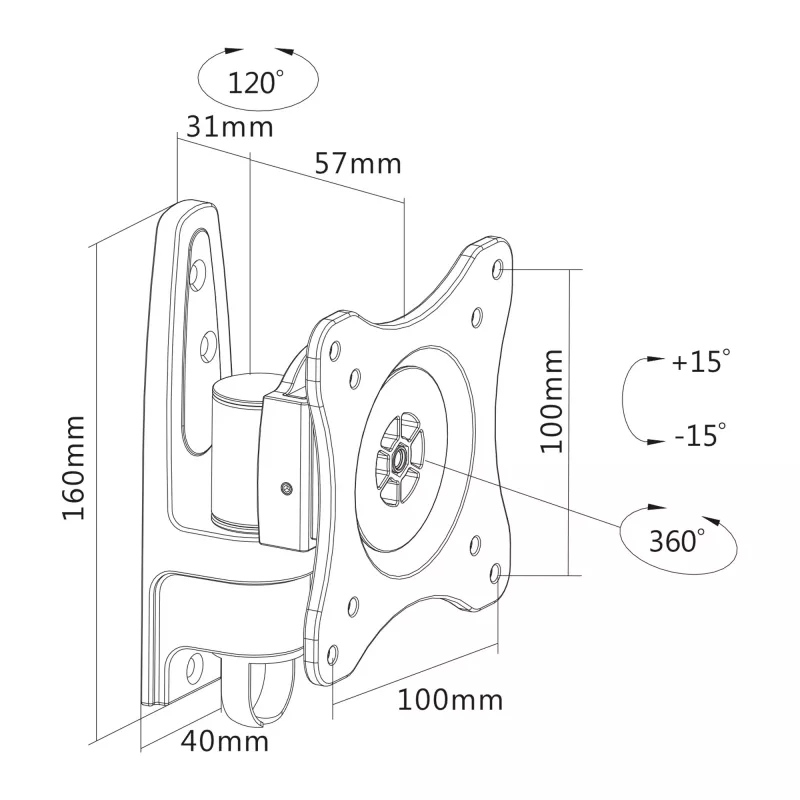

Key specifications

• Maximum screen size supported: 69 cm (27")
• VESA compatibility: 75 x 75 mm and 100 x 100 mm
• Maximum load capacity: 15 kg
• Tilt adjustment range: -15° to 15°
• Swivel adjustment range: -60° to 60°
• Wall extension distance: 8.8 cm
• Colour: Black
• Number of displays supported: 1

How to use

Mount the bracket onto a suitable solid wall surface following the included instructions and using appropriate fixings for the wall material. Attach the monitor to the VESA holes on the bracket, ensuring that the screws are tightened to secure the display. Adjust the tilt and swivel settings to the preferred viewing angle, checking that the total weight does not exceed the rated 15 kg. Periodically verify that mounting screws remain tight and that the wall anchors are secure.

Recommendations

Use the wall mount on a load-bearing wall or with anchors rated for the wall material; avoid mounting on thin partitions without proper reinforcement. For safety, confirm the monitor’s weight and VESA pattern before installation and use appropriate tools and fixings for the surface type.
