InLine βάση γραφείου για TV/LED/TFT οθόνη έως 69 cm (27 ίντσες), μέγ. 10 kg

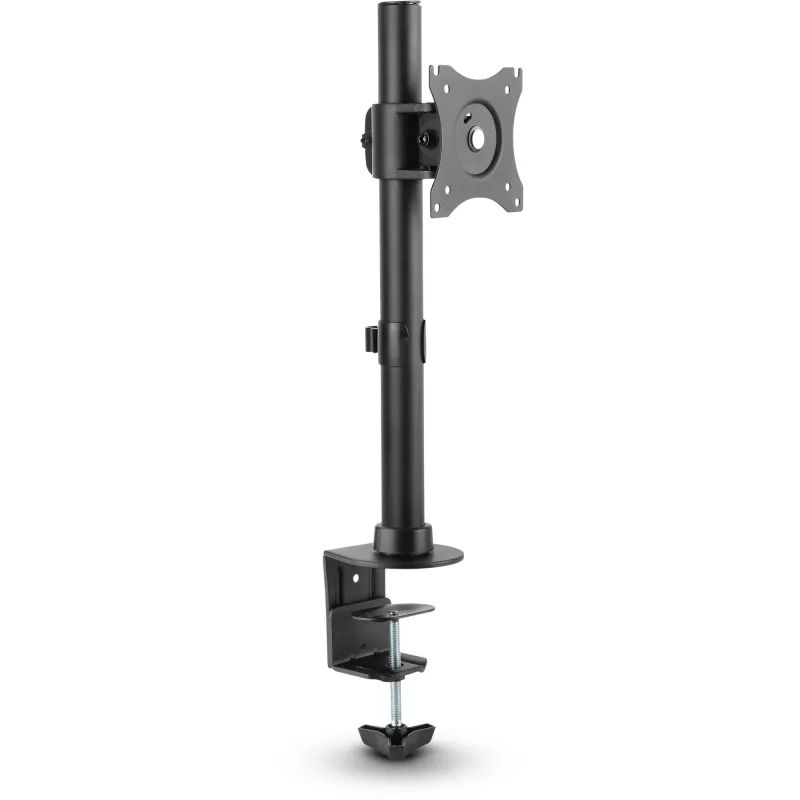

The InLine Desk Bracket for TV LED TFT Display 23108D is a desk mount designed for flat-screen monitors and small TVs up to 27" (69 cm) and a maximum load of 10 kg. It supports VESA 75x75 and 100x100 mm mounting patterns and includes a joint for flexible orientation plus a 360° rotatable display head and a tilt range of ±45°. The bracket is height adjustable up to 45 cm and comes in black with the necessary accessories for attachment.

Advantages

This desk bracket offers stable clamp and grommet mounting options for desks (edge clamp up to approx. 8.8 cm, through-desk grommet up to approx. 8 cm), straightforward height adjustment to position the screen up to 45 cm, and compatibility with common VESA sizes (75x75, 100x100 mm). The articulated joint and 360° rotation combined with a ±45° tilt provide flexible orientation and ergonomic monitor placement while the included screw set and Allen keys simplify installation.

Suitable for

• Home offices and workstations with monitors up to 27"
• Small meeting rooms requiring adjustable displays
• Users seeking space-saving desk mounting solutions

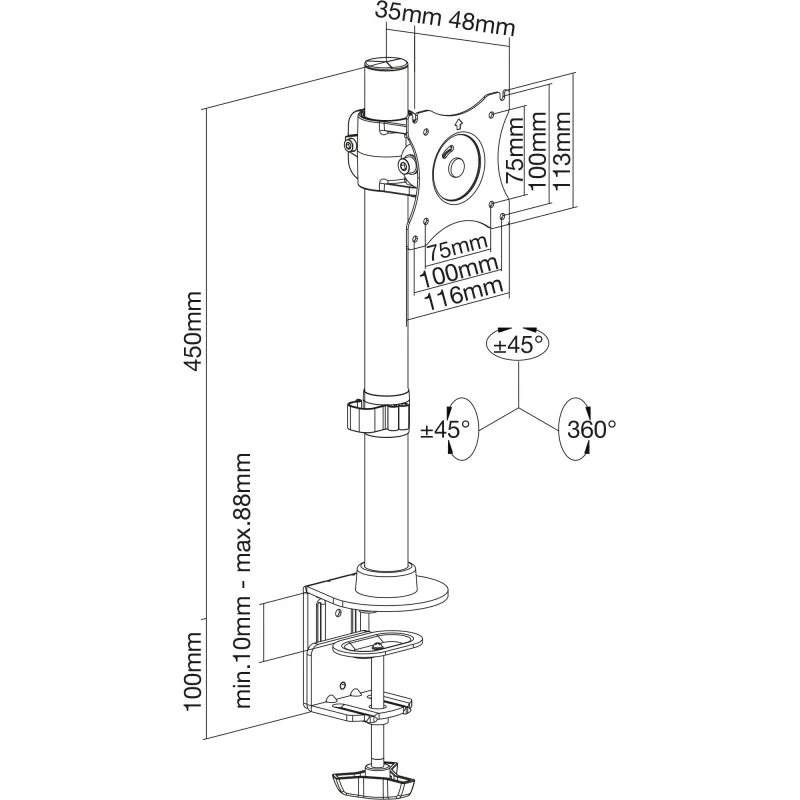

Key specifications

• Model: InLine 23108D
• Max. screen size: 27" (69 cm)
• Max. load capacity: 10 kg
• VESA compatibility: 75x75, 100x100 mm
• Tilt range: ±45°
• Rotation: 360°
• Height adjustment: up to 45 cm
• Mounting: screw clamp (edge) / grommet (through desk)
• Color: Black

How to use

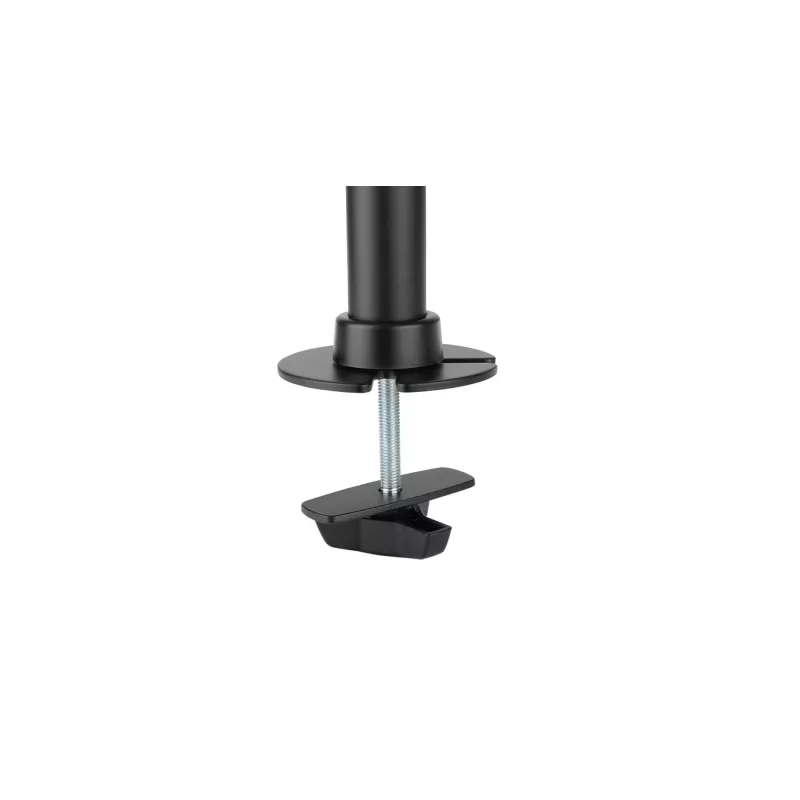

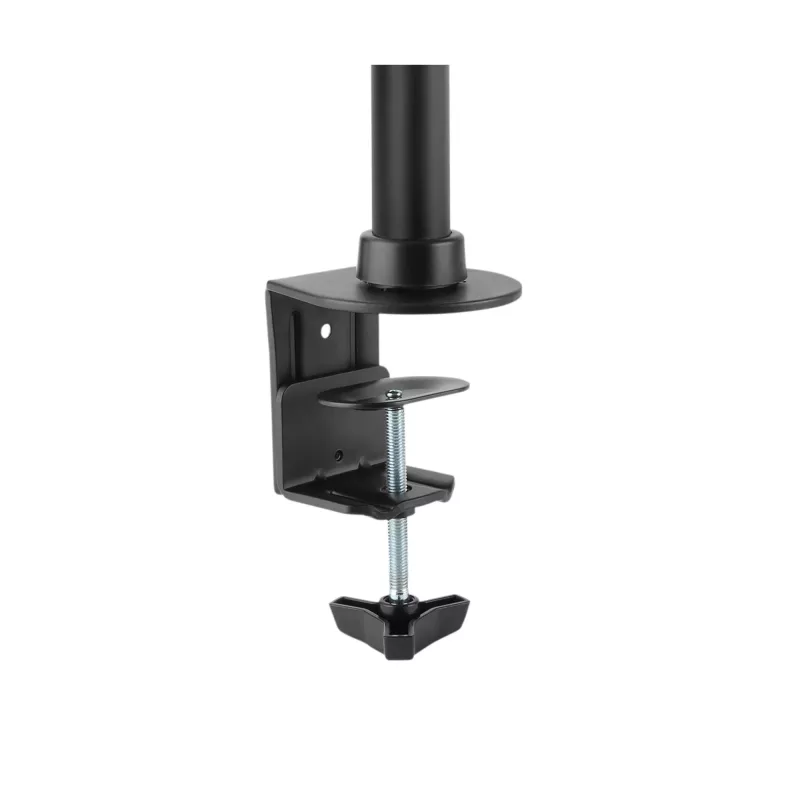

Attach the bracket to your desk using the screw clamp on the edge (fits up to approx. 8.8 cm desk thickness) or use the grommet mounting through a desk hole (fits up to approx. 8 cm). Fix the bracket body securely, mount the display using the supplied M4/M5 screws to match the VESA pattern, and tighten with the included Allen keys. Adjust height to the desired position and set the display orientation using the joint, tilt and rotation features.

Recommendations

To ensure safe operation, confirm that your monitor's weight does not exceed 10 kg and that the VESA pattern matches 75x75 or 100x100 mm. When using the clamp or grommet, verify desk thickness against the specified limits and tighten all fasteners according to the installation instructions.
