InLine βάση γραφείου για 3x TV / LED / TFT οθόνη έως 81cm 32 ίντσες μέγ. 7kg

InLine 23108G desk mount for flat screen monitors up to 32" provides a flexible mounting solution with tilt and rotation functions, compatible with VESA 75x75 and 100x100 mm. The mount includes a joint for multi-angle orientation, height adjustment up to 40 cm and can be fixed to the desk using a screw clamp for the edge or a grommet through the tabletop. It ships with the necessary accessories for attaching screens.

Advantages

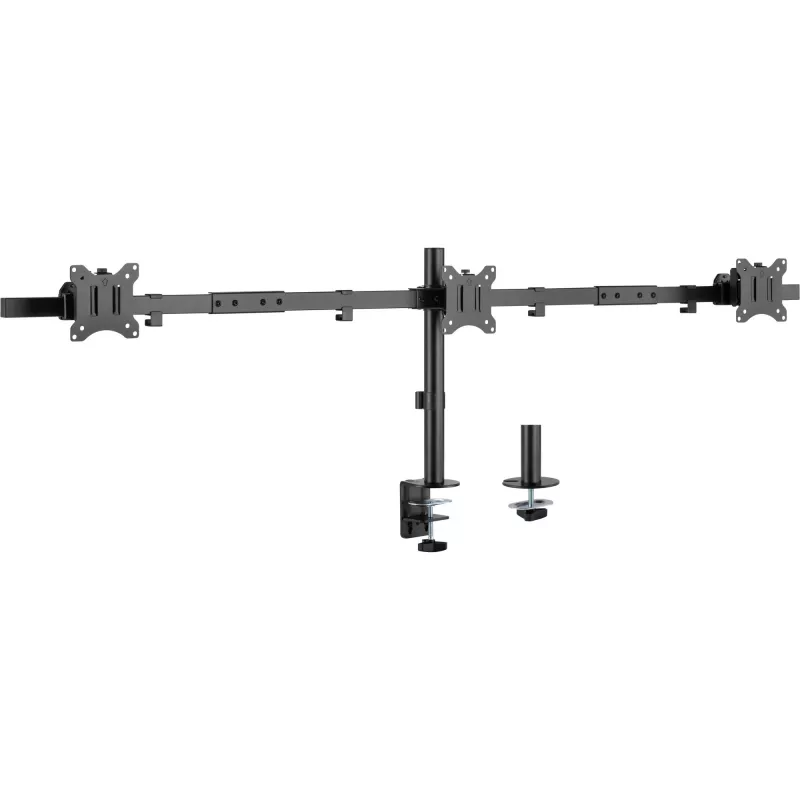

The mount supports a three-arm configuration with a maximum load capacity of 3×7 kg, allowing multiple monitors to be installed. It offers tilt of ±45° and 360° rotation for optimal viewing angles, and its VESA compatibility covers most 13–32" flat screens. Mounting options include a screw clamp for desk edges (up to approx. 85 mm) or a grommet installation through the desk (up to approx. 40 mm), and the package contains M4 and M5 screw sets and two Allen keys for assembly.

Suitable for

• Home offices and corporate desks where space-saving monitor mounting is required
• Multi-monitor workstations needing adjustable viewing angles
• Environments that require both edge-clamp and grommet mounting options

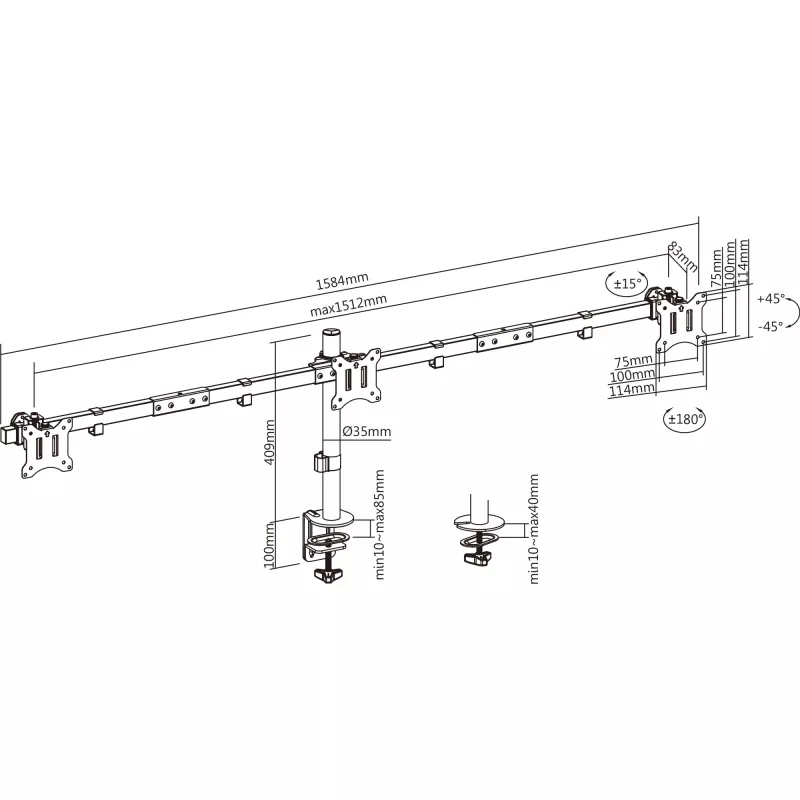

Key specifications

• Model: InLine 23108G
• Screen compatibility: up to 32" flat screens
• VESA: 75 x 75 mm, 100 x 100 mm
• Tilt: ±45°
• Rotation: 360°
• Height adjustment: up to 40 cm
• Mounting options: screw clamp (edge) up to ≈85 mm, grommet (through desk) up to ≈40 mm
• Max. load capacity: 3 × 7 kg
• Included accessories: screw set (M4, M5), 2× Allen keys, installation instructions

How to use

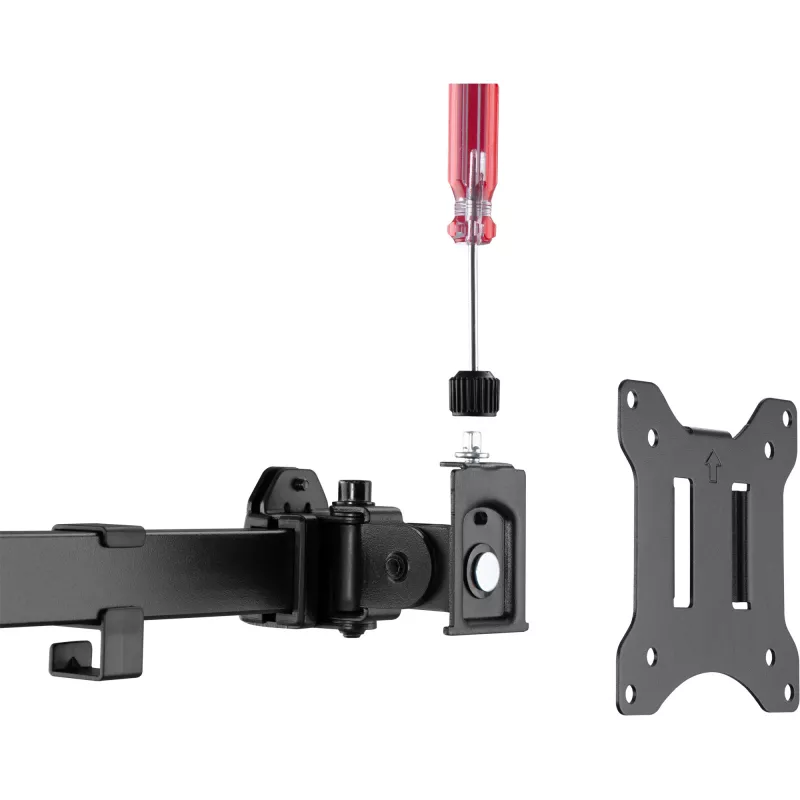

Assemble the mount following the installation instructions included in the package. Attach the table holder to the desk using either the screw clamp for edge mounting or the grommet for through-desk mounting, observing the indicated maximum thicknesses. Fix the monitor to the VESA plate using the supplied M4 or M5 screws, adjust the arm height up to 40 cm and set the desired tilt and rotation for comfortable viewing. Ensure all fasteners are tightened before use.

Recommendations

Do not exceed the maximum load of 7 kg per arm and verify VESA compatibility with your monitor. Periodically check and retighten screws and clamp fittings to maintain stability.
