InLine βάσεις ράγας τοποθέτησης για σκληρούς δίσκους 3,5 ιντσών 59959

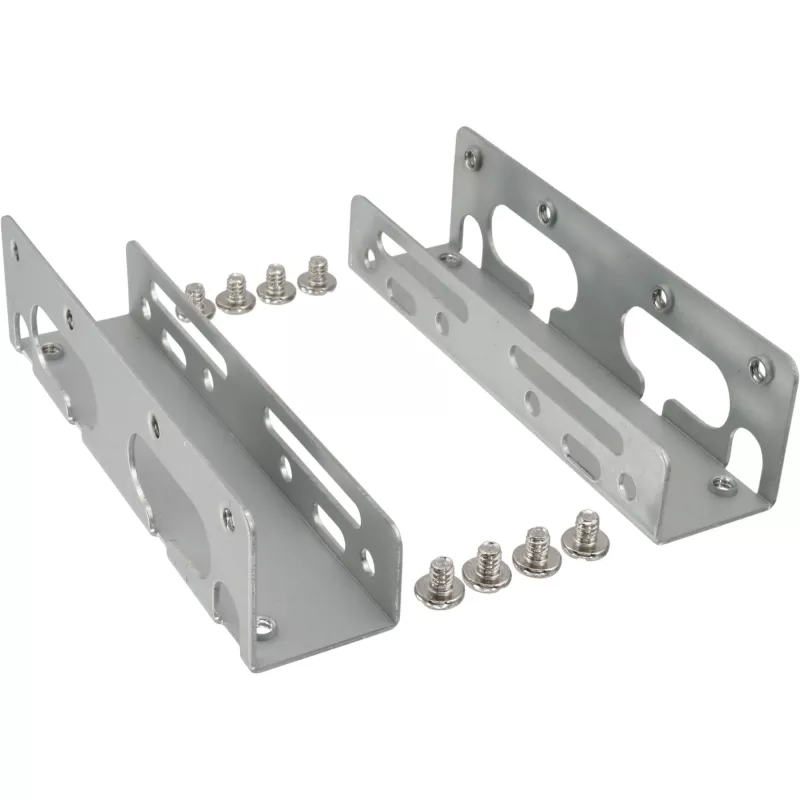

InLine Mounting Rails Brackets for 3.5" HDDs 59959 are metal mounting rails designed to install a 3.5" hard disk drive into a free 5.25" drive bay. The set includes two sturdy metal brackets and the necessary screws for fastening the HDD to the rails and securing the assembly in a 5.25" slot of a PC case. The rails are finished in bright yellow and fit standard desktop enclosures where a 5.25" bay is available.

Advantages

These mounting rails are made of metal for improved durability and stable support of 3.5" HDDs. The included screws simplify installation and eliminate the need to source fasteners separately. Their compact design allows mounting of a standard hard drive into a 5.25" bay without modifications to the PC case, while the bright yellow finish makes the rails easy to identify during installation or maintenance.

Suitable for

• Mounting a 3.5" HDD into a free 5.25" drive bay
• Upgrading or reorganizing desktop PC storage
• Systems that require quick identification of drive brackets (colored components)

Key specifications

• Brand: InLine
• Model / MPN: 59959
• EAN: 4043718010035
• Material: Metal
• Product colour: Yellow
• Includes: 2 metal brackets and screws for HDD mounting

How to use

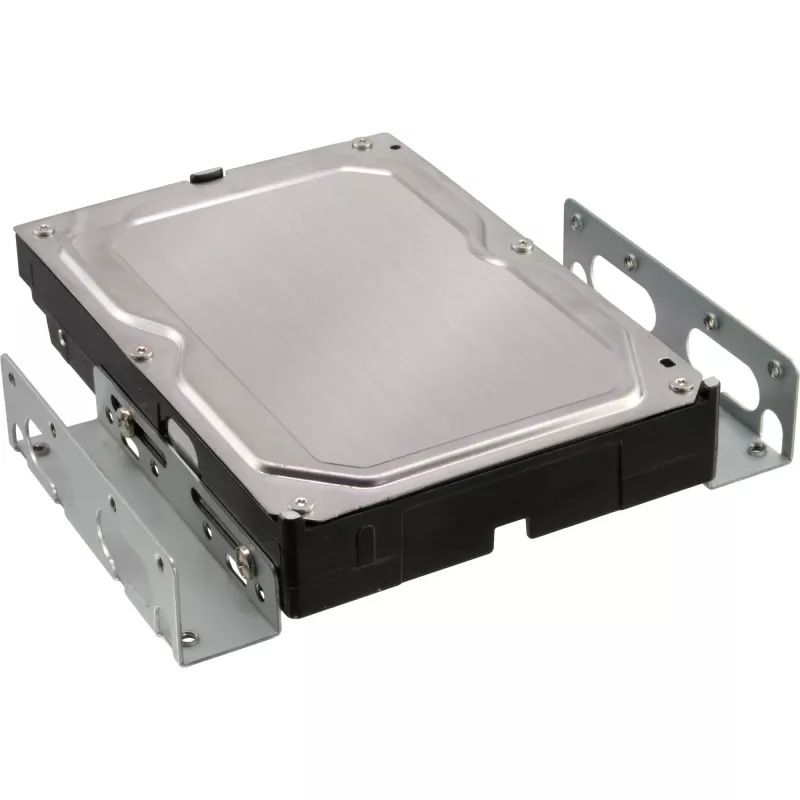

Fasten each bracket to the sides of the 3.5" HDD using the supplied screws, then slide the assembled drive into the free 5.25" bay of the PC case and secure the brackets to the bay with the provided screws. Ensure the drive is aligned with the bay and that all screws are tightened to prevent movement. After mechanical installation, connect the HDD power and data cables to the drive and verify operation in the system BIOS or operating system.

Recommendations

Before installation, power off the PC and disconnect it from the mains. Handle the hard drive and brackets on an anti-static surface and avoid excessive force when tightening screws to prevent damage to the drive or case.
