InLine SCSI U320 LVD/SE τερματικό εσωτερικό 68 Pin Mini Sub-D θηλυκό

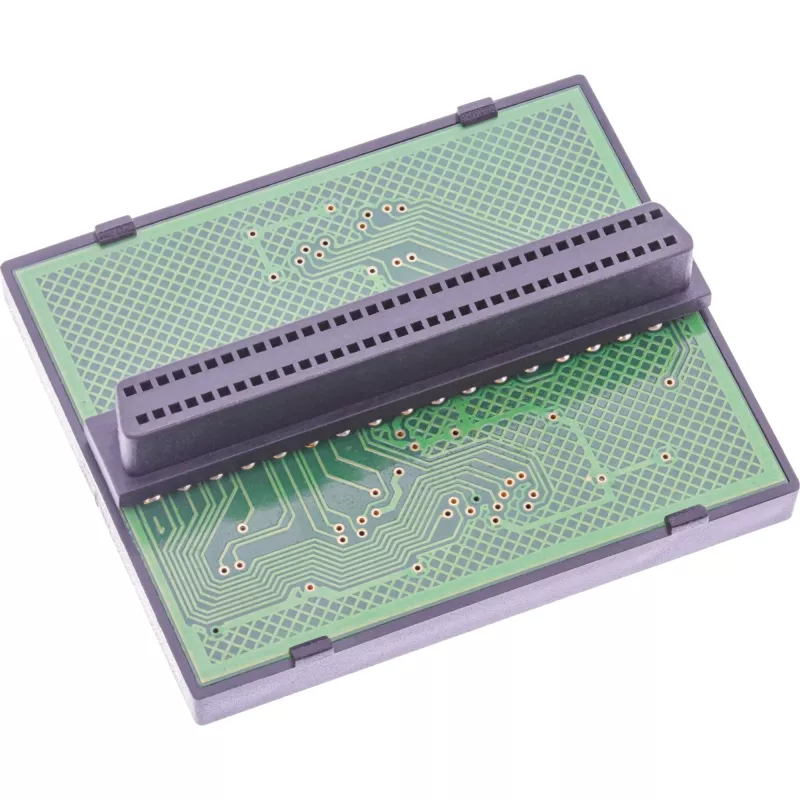

The InLine SCSI U320 LVD/SE Terminator internal 68 Pin mini Sub-D female provides a compact termination solution for SCSI U320 LVD and SE chains. Designed to connect to standard 68-pin mini Sub-D internal connectors, this terminator supports the SCSI U320 data rate and is intended for use inside computer systems or storage arrays. The unit is supplied individually and features a green housing for easy identification within racks or chassis.

Advantages

This terminator is compatible with both LVD and SE SCSI U320 environments and supports the full 0.32 Gbit/s data transfer rate defined for U320. Its internal 68-pin mini Sub-D female connector provides a direct fit to common internal SCSI ports, simplifying installation without additional adapters. The single-unit supply is useful for targeted replacements or upgrades, and the coloured housing helps technicians quickly locate terminated connections.

Suitable for

• Internal termination of SCSI U320 LVD/SE device chains
• Repair or replacement of a failed internal SCSI terminator
• Use in servers, RAID arrays, and legacy SCSI storage systems
• Service and maintenance tasks in data centers and lab environments

Key specifications

• Connector type: 68-pin mini Sub-D female (internal)
• SCSI standard: U320 (supports LVD and SE operation)
• Maximum data transfer rate: 0.32 Gbit/s
• Form factor: internal inline terminator
• Colour: green
• Unit configuration: single terminator

How to use

Ensure the host and device chain are powered down before installing the terminator. Insert the 68-pin mini Sub-D female connector into the corresponding internal SCSI port at the end of the device chain, making sure the connection is seated firmly and aligned correctly. Confirm that the chain is properly terminated by verifying device communication and running any available SCSI diagnostics after powering the system back on. Remove and replace the terminator only when the system is powered off to avoid signal disruption.

Recommendations

Use this terminator at the physical end of a SCSI U320 chain and avoid installing multiple terminators in parallel positions. For mixed LVD/SE environments, confirm the connected devices’ signalling modes and ensure termination matches the required mode. Store spare terminators in an anti-static environment to protect contacts and maintain reliable performance.
