InLine Προσαρμογέας δικτύου USB 2.0 10 / 100MBit

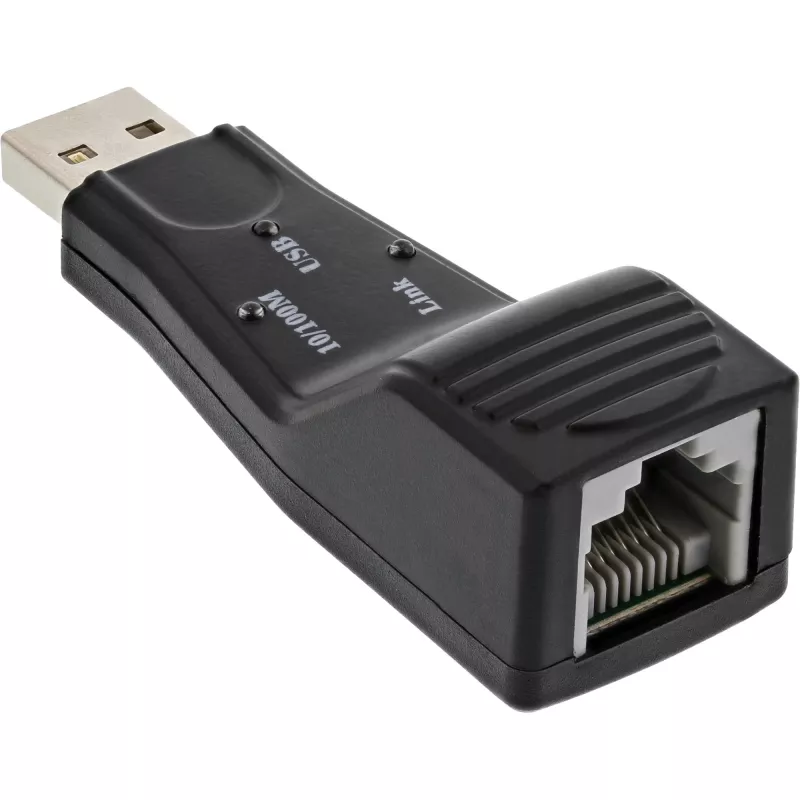

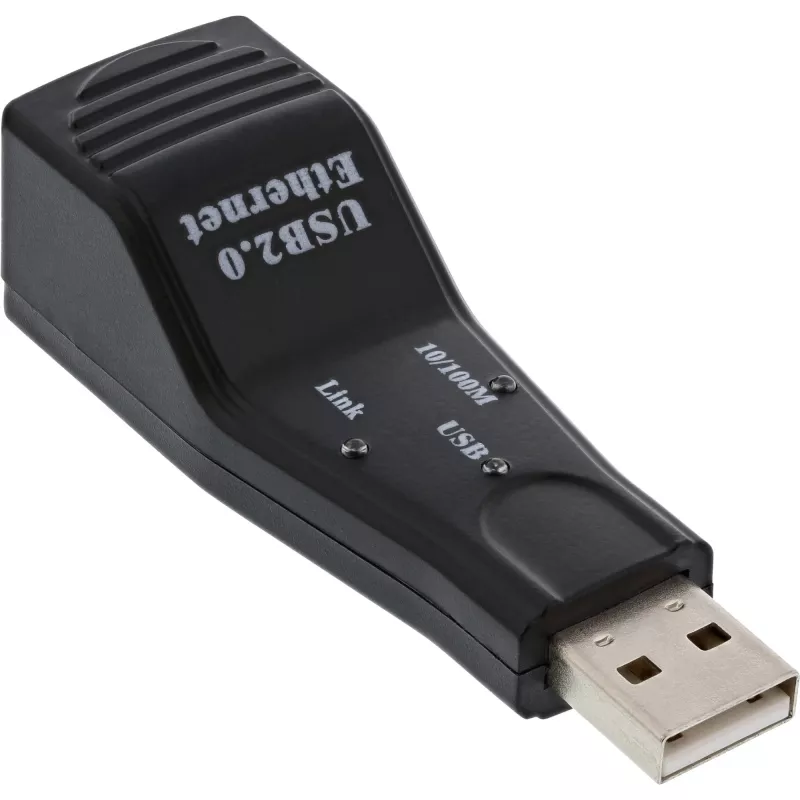

The InLine 33380H USB 2.0 Network Adapter provides wired Ethernet connectivity over a USB port. It supports 10/100 Mbps Ethernet speeds, draws power from the USB interface, and comes in a compact black housing. The adapter is suitable for systems that lack a built-in RJ45 port and enables a stable wired connection via a USB or USB 2.0 output.

Advantages

Supports 10 Mbps and 100 Mbps Ethernet connections and a maximum data rate of 100 Mbit/s. Powered directly from the USB port, no external power supply is required. Compatible with common Windows plug-and-play hardware detection and USB hot-swap functionality for quick integration. Compact and portable black design that occupies minimal space.

Suitable for

• Notebooks and ultrabooks without an RJ45 Ethernet port
• Desktop PCs needing an additional or replacement wired network interface
• Embedded systems or thin clients that require a USB-to-Ethernet connection

Key specifications

• Model: InLine 33380H
• Interface: USB / USB 2.0
• Ethernet standards: 10 Mbps, 100 Mbps (10/100BASE-TX)
• Maximum data rate: 100 Mbit/s
• Power: supplied via USB port
• Colour: Black
• EAN: 4043718026753

How to use

Connect the adapter to an available USB or USB 2.0 port on your computer. Attach an Ethernet cable to the adapter's RJ45 connector and to the network source (router, switch or modem). Allow the operating system to detect and install drivers automatically; on Windows systems this is typically handled by built-in hardware detection. After installation the network interface will be available for configuration in the system network settings.

Recommendations

Use a shielded Ethernet cable for optimal signal stability and place the adapter where the USB connection is not subject to frequent mechanical stress. For best throughput, connect to a 100 Mbps switch or router and use a USB 2.0 port rather than a USB 1.1 port.
