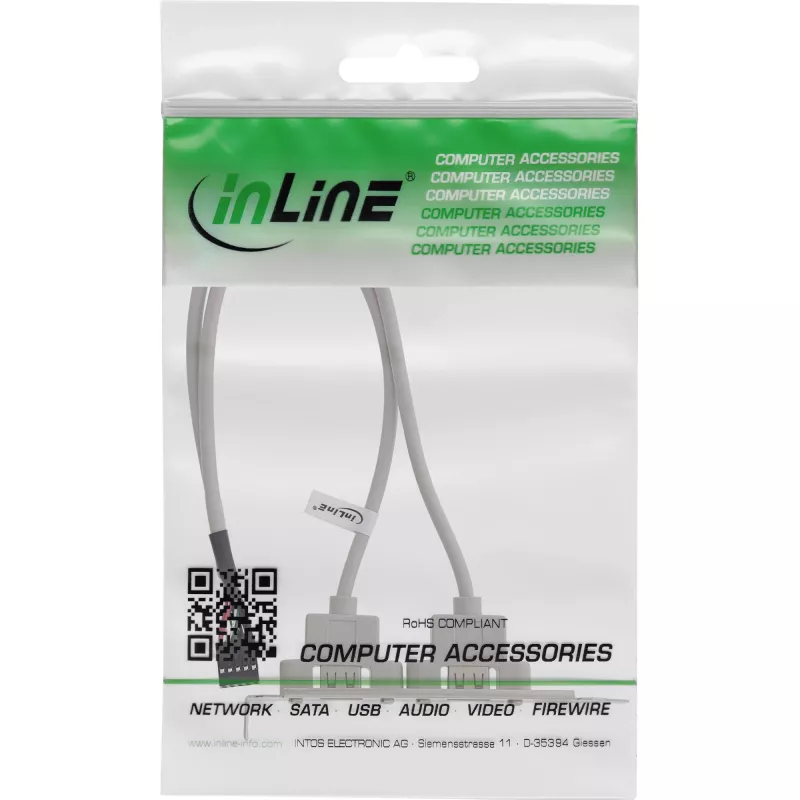

InLine Πλάκα PCI USB 2.0 2x USB Type-A υποδοχή θηλυκή σε 1x 10-Pin σύνδεση 0,35 m

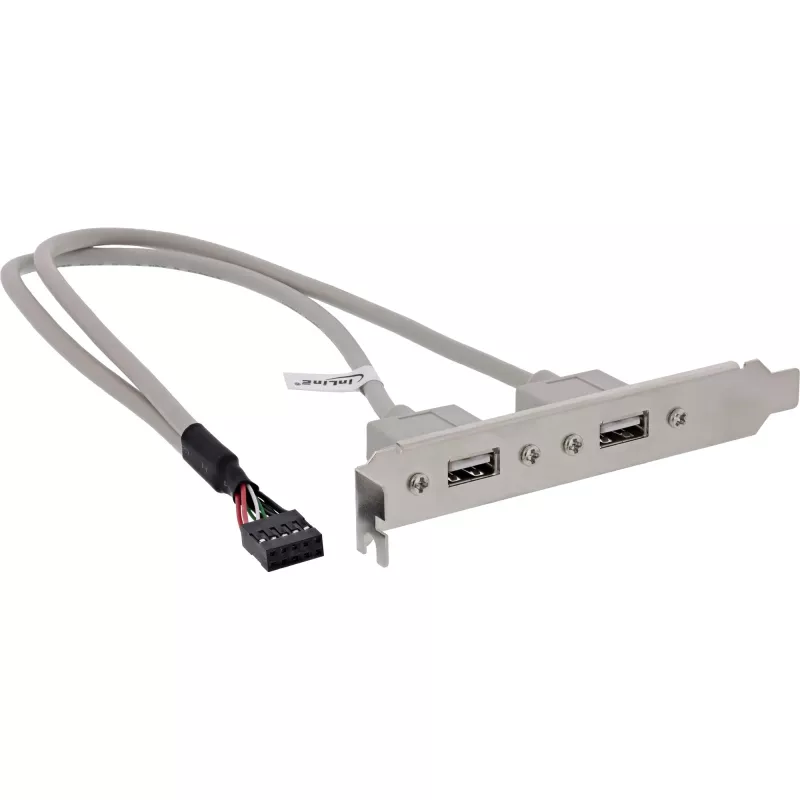

The InLine USB 2.0 Slot Bracket provides two USB Type A female ports mounted on a metal bracket and connected by a 0.35 m cable to a 10‑pin IDC connector. Designed to fit into a standard expansion slot at the rear of a desktop computer chassis, the bracket makes front- or rear-panel access to USB devices simple without modifying the motherboard layout. It supports USB 2.0 data rates for everyday peripherals and is supplied as a single ready-to-install unit.

Advantages

This slot bracket offers a compact and straightforward way to add two external USB Type A ports using an internal 10‑pin connector. The short 0.35 m cable reduces cable clutter inside the case while maintaining stable USB 2.0 connectivity. The metal bracket ensures secure mounting in a standard expansion slot and provides convenient external access for peripherals such as flash drives, keyboards and mice.

Suitable for

Key specifications

How to use

Turn off and unplug the computer before installation. Remove the case panel to access the motherboard and identify an available 10‑pin USB header. Align the IDC connector on the cable with the header, ensuring correct pin orientation, and press it gently into place. Secure the metal bracket in an empty expansion slot at the rear of the case using the existing screw. Reassemble the case, power on the system and verify that connected USB devices are recognized by the operating system.

Recommendations

For reliable operation, connect devices that conform to USB 2.0 or earlier standards. Avoid forcing the IDC connector onto the header and verify pin alignment to prevent damage. If high-power devices are needed, consider using a powered USB hub or a motherboard header that provides sufficient current.
