InLine Patchpanel 10 ιντσών Cat.6A 0,5HE 12-Port ανοιχτό γκρι RAL7035

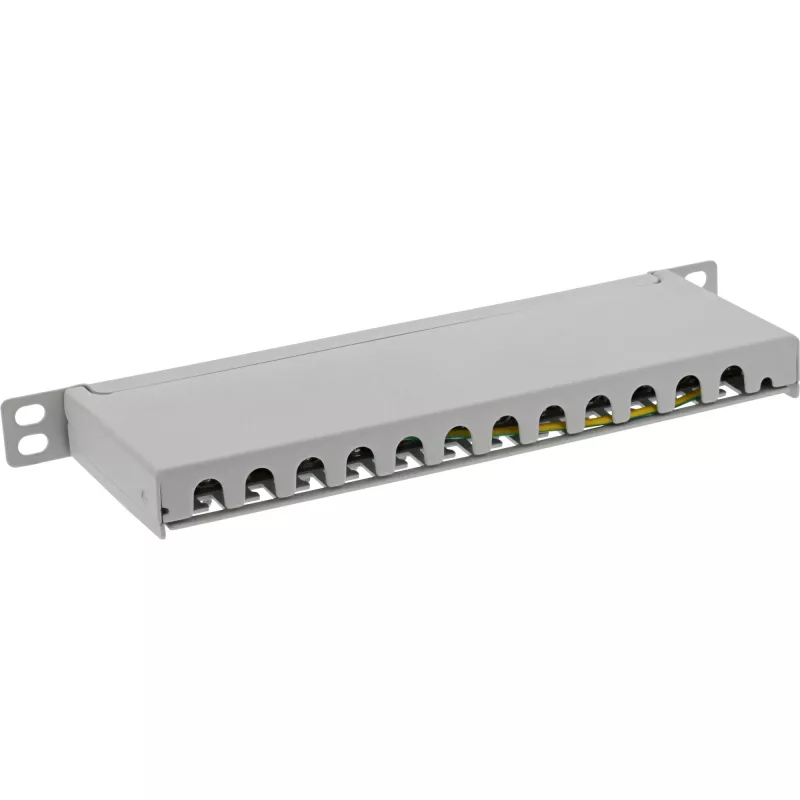

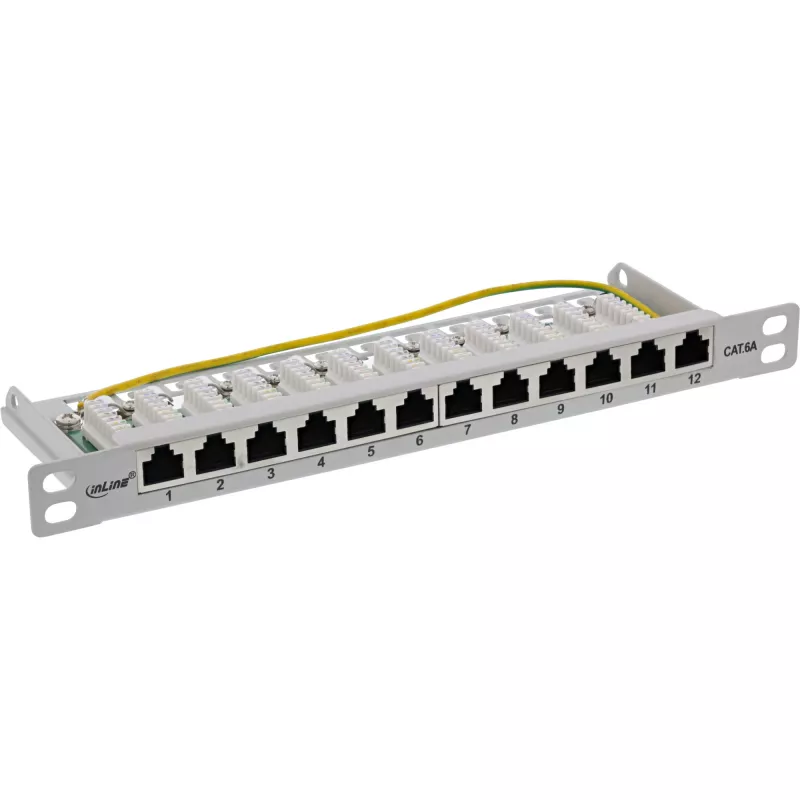

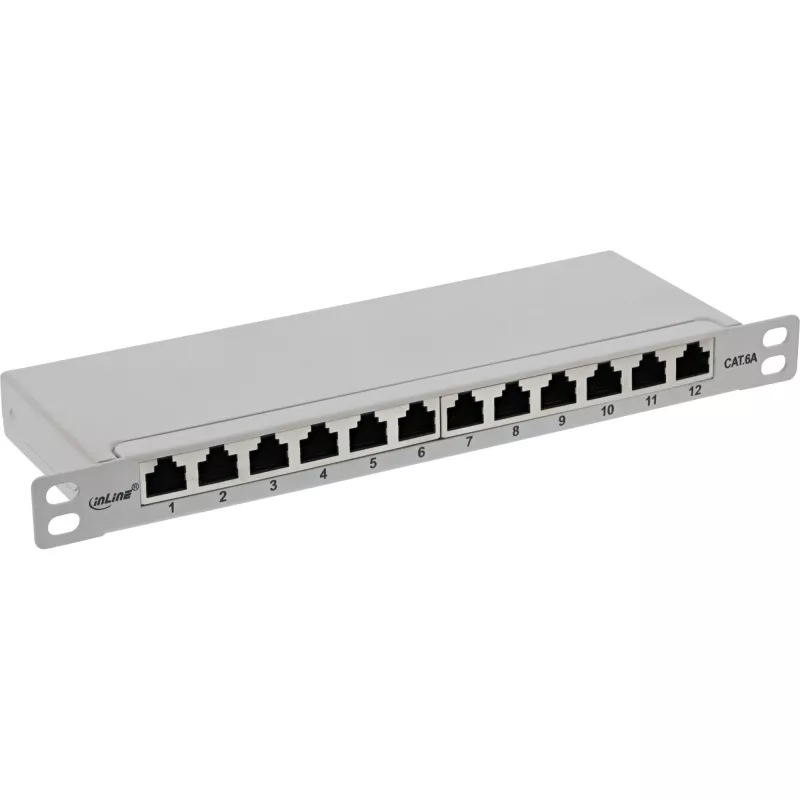

The InLine 10" patch panel is a 0.5U, 12‑port unit designed for Cat.6A installations. Fully shielded and finished in light grey (RAL7035), it provides consecutively numbered RJ45 ports and accepts up to 12 installation cables using LSA insulation displacement connectors. The panel is rack-mountable with a height of 23 mm and is certified to IEC 60603-7-5 for reliable data transmission.

Advantages

Fully shielded construction reduces electromagnetic interference in data cabling. LSA insulation displacement connectors enable secure, tool-assisted termination of up to 12 cables without soldering. Consecutive numbering of RJ45 ports simplifies identification and patching in structured network environments. Compact 0.5U height saves rack space while providing Cat.6A performance.

Suitable for

• Structured Ethernet networks requiring Cat.6A performance
• Server rooms and network cabinets with limited rack space
• Office and data center patching panels and cable management

Key specifications

• Standard: Cat.6A
• Ports: 12 RJ45
• Mounting size: 10"
• Height: 0.5U (23 mm)
• Shielding: Fully shielded

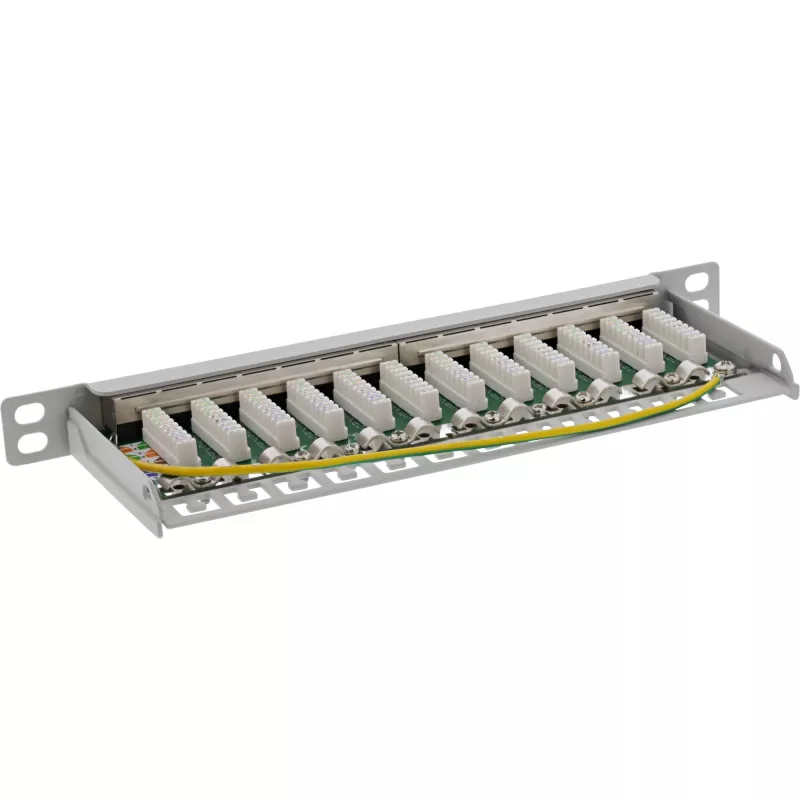

• Termination: LSA insulation displacement connectors
• Colour: Light grey (RAL7035)
• Certification: IEC 60603-7-5

How to use

Mount the patch panel into a 10" rack or cabinet at the desired U position. Terminate each incoming installation cable into the LSA connectors following the port numbering and the cable color code for Cat.6A. After termination, connect patch cords to the corresponding RJ45 ports for linking switches, patch panels, or network devices. Secure cables to maintain strain relief and preserve shielding continuity.

Recommendations

For best performance, use Cat.6A-certified cables and follow recommended cable management practices to avoid sharp bends and maintain proper separation from power lines. Verify terminations and shielding continuity after installation.
