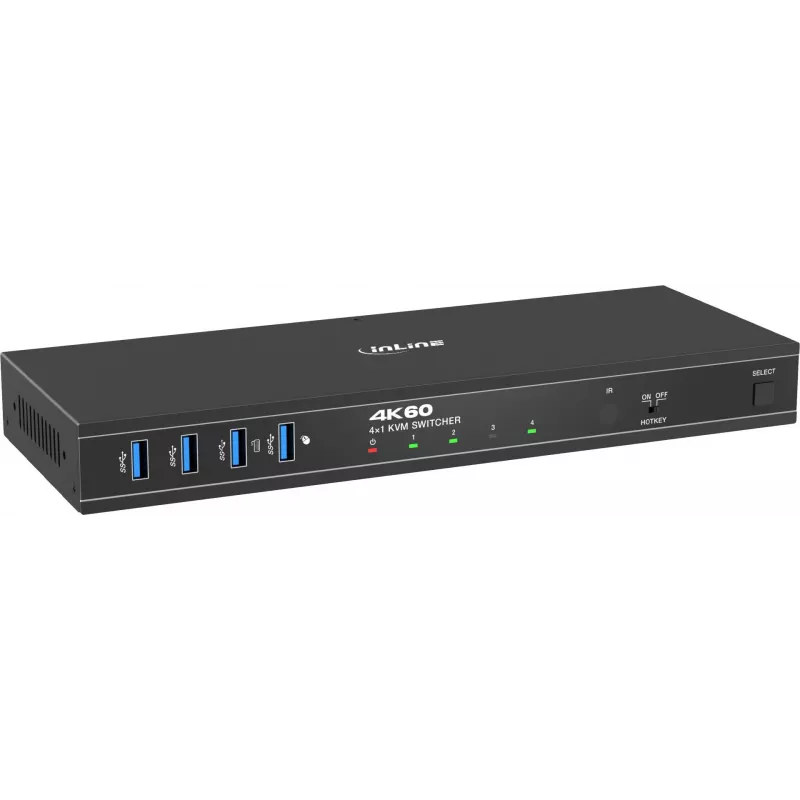

InLine® KVM Switch, 4x1, DP 4K/60Hz, USB 3.2 Hub (57885J)

Managing multiple computers with separate keyboards, mice, and monitors creates clutter and slows you down. The InLine® 4-Port DisplayPort KVM Switch with USB 3.2 Hub solves this by letting you control four computers from a single console. Switch between systems instantly using front-panel buttons, keyboard hotkeys, or mouse gestures—no software required.

Who is it for

This KVM switch is ideal for IT professionals, power users, and anyone who needs to operate multiple PCs or workstations from one desk. It is especially valuable in server rooms, control centers, and multi-computer workstations where space and efficiency matter.

Main features

• Control 4 DisplayPort-equipped computers from one keyboard, mouse, and monitor
• Supports 4K UHD resolution at 60Hz (3840 x 2160) for crisp, fluid video
• Built-in USB 3.2 Gen 1 hub with two high-speed ports for peripherals
• Dedicated USB ports for keyboard and mouse ensure reliable input
• Audio support via 3.5mm microphone and headphone jacks
• Multiple switching methods: front-panel button, hotkeys, and mouse gesture
• HDCP 1.4 and 2.2 compliant for protected content
• Durable metal housing for long-term reliability
• LED indicators show active port at a glance

Specifications

• Computer connections: 4 (DisplayPort 1.2)
• Console connections: 1 (DisplayPort 1.2)
• Maximum resolution: 3840 x 2160 @ 60Hz (4K UHD)
• Video bandwidth: 21.6 Gbps
• USB hub: USB 3.2 Gen 1 (2 ports)
• Keyboard/mouse ports: 2x USB-A
• Audio: 3.5mm stereo (mic and headphone)
• Switching: front panel, hotkey, mouse gesture
• Power: external DC 5V/3A adapter
• Material: metal
• OS compatibility: Windows, macOS, Linux
• LED indicators: yes

Tips

For best results, use high-quality DisplayPort cables that support 4K@60Hz. Connect the power adapter to ensure stable operation, especially when using USB peripherals. Use the hotkey or mouse gesture switching for quick access without reaching for the switch.
