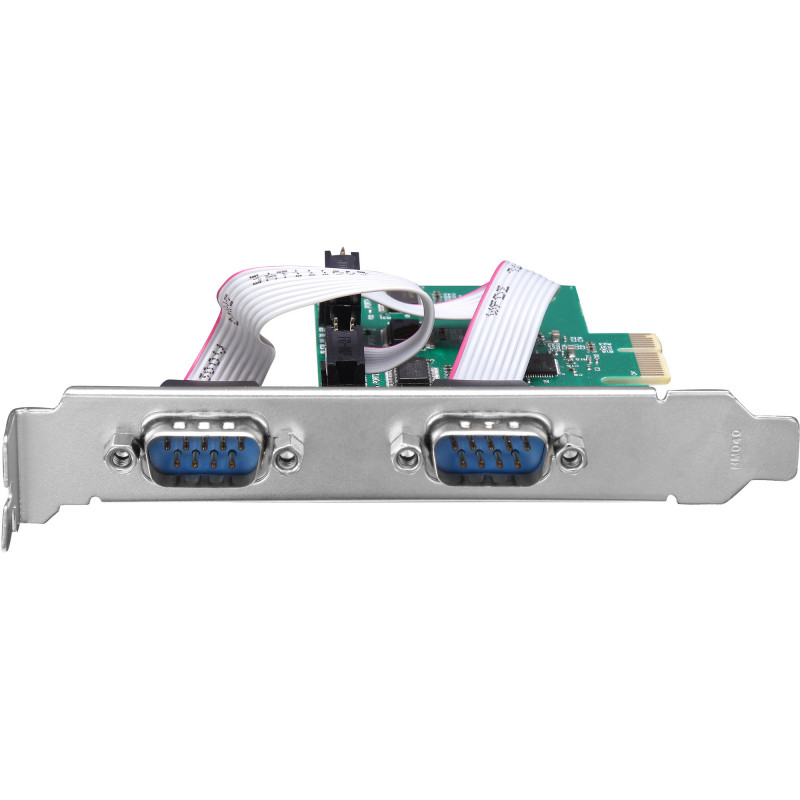

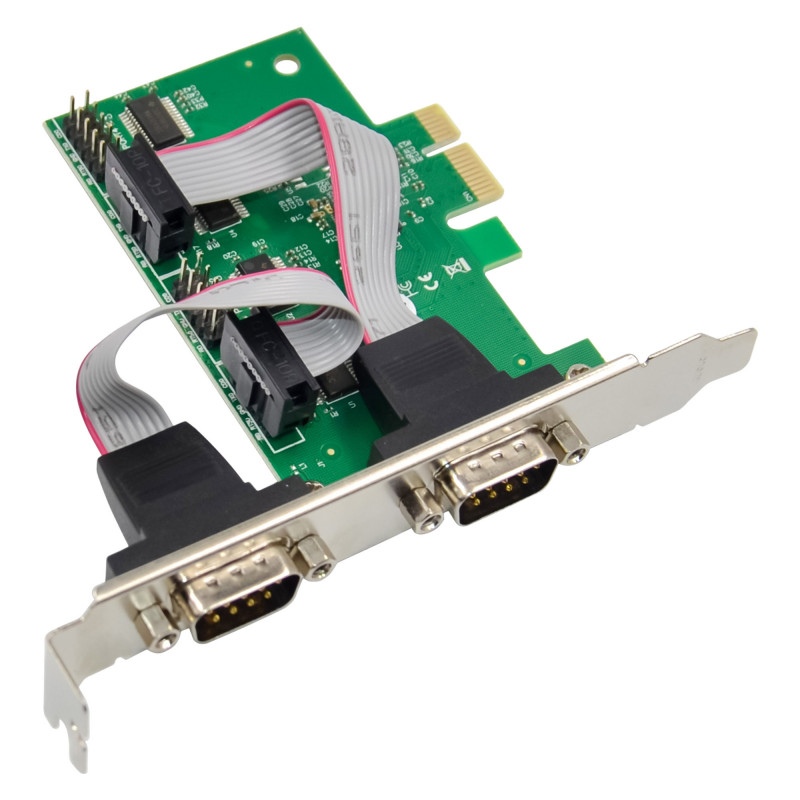

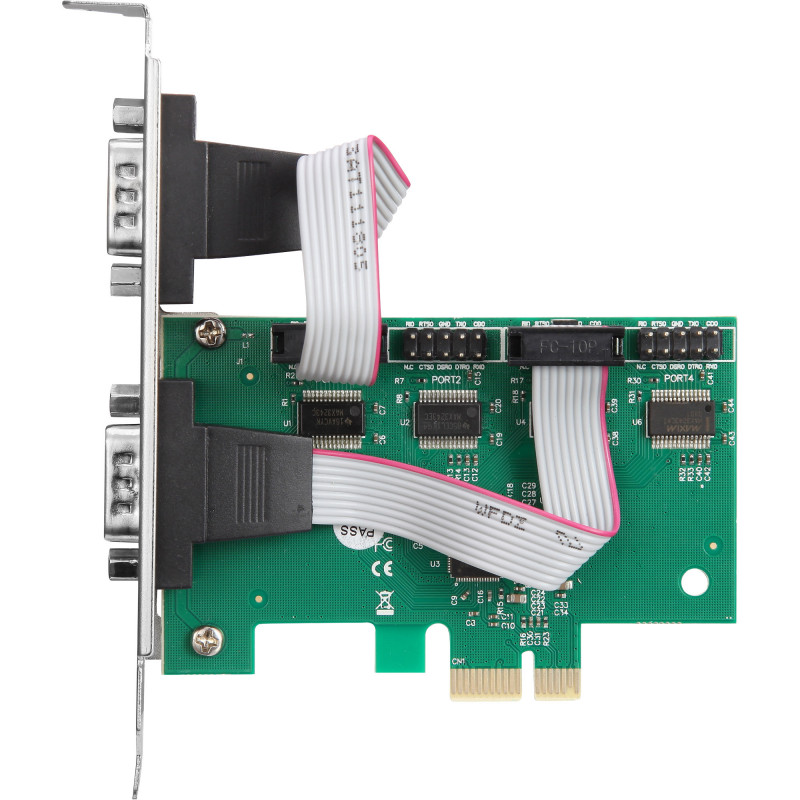

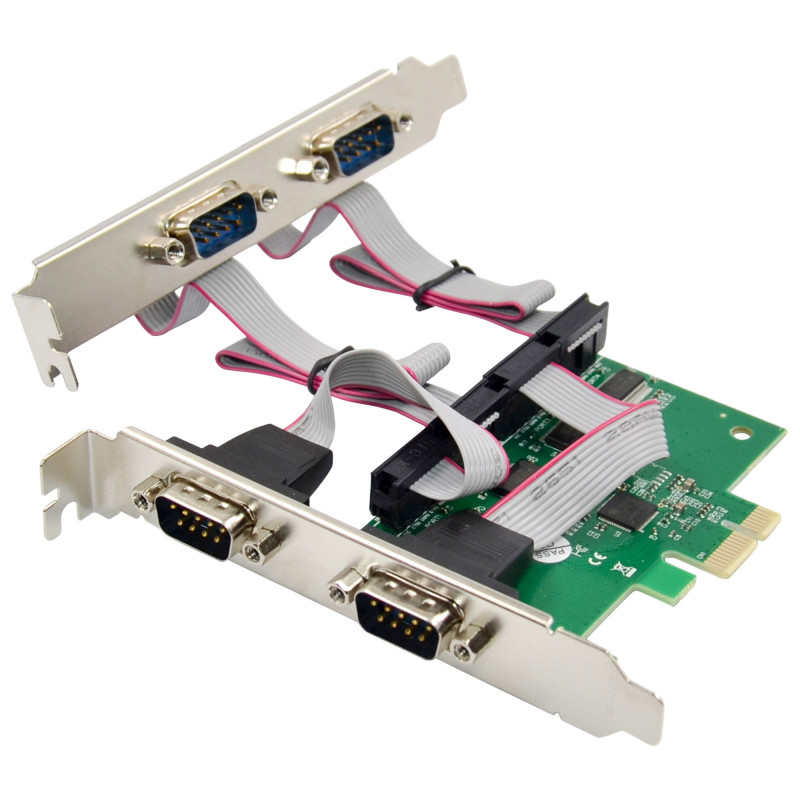

InLine® Κάρτα διασύνδεσης PCIe x1, 4x RS-232, Low Profile

The InLine® PCIe x1 interface card adds four RS-232 serial ports to a compatible computer system via a PCI Express x1 slot. It is also compatible with PCIe x4, x8 and x16 slots, and the included low-profile slot brackets allow installation in compact enclosures.

Key features

• Four RS-232 ports with D-Sub 9 connectors (male)
• ASIX AX99100 controller
• Full RS-232 modem control signals
• Hardware and software flow control
• 256-byte FIFO transmit and receive buffer per port
• Freely configurable baud rates via internal PLL
• Configurable data bits and parity
• Low-profile slot brackets included
• Compatible with PCI Express x1, x4, x8 and x16 slots

Specifications

• Brand: InLine
• MPN: 76623E
• PCIe standard: PCI Express 2.0 Gen1, x1 lane
• Bus interface: PCI Express x1 (compatible with x1, x4, x8 and x16 slots)
• Connections: 4x RS-232, D-Sub 9 connectors (male)
• Chipset: ASIX AX99100
• Serial data rate: up to 115,200 bits/s per port
• UART FIFO: 256-byte transmit and receive buffers per port
• Flow control: Hardware and software flow control
• Modem control: Full RS-232 modem control
• Data bits: 5, 6, 7, 8 or 9 bits
• Parity: None, Even, Odd, Mark, Space
• Baud rate: Freely configurable via internal PLL
• IrDA support: Slow IrDA up to 115,200 bits/s
• Power management: PCI Power Management 1.2 with Remote Wake-Up
• Supported operating systems: Linux kernel 2.6.x, 3.x and 4.x, Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 (32-bit/64-bit), Windows 11 (64-bit)
• Connections external: 4x 9pin serial
• Interface: Serial
• Type: Interface card
• Low Profile: Yes
• Country of origin: China
• Customs tariff number: 8471800000
