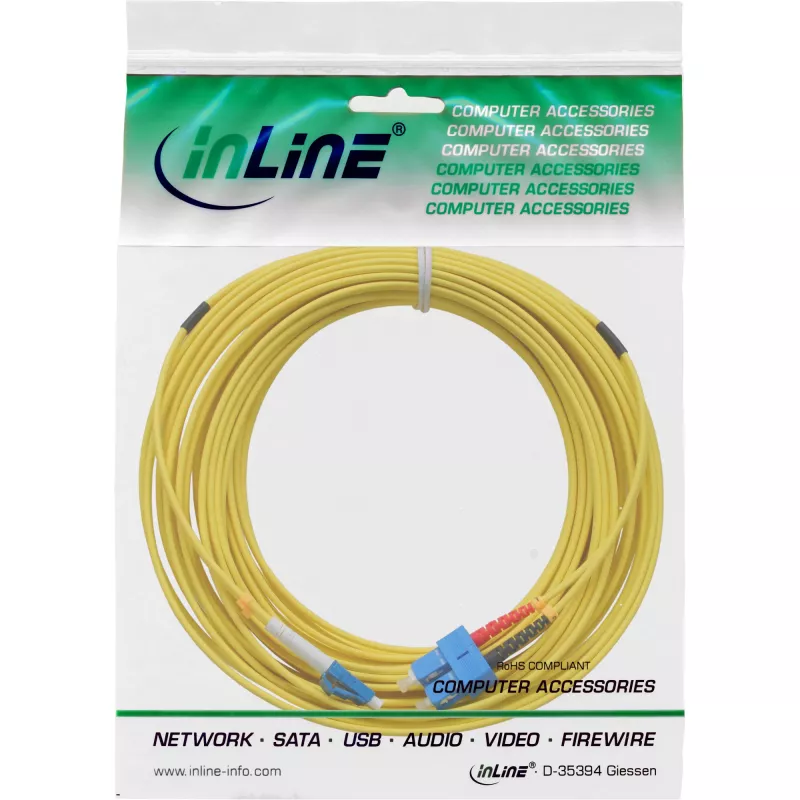

InLine Καλώδιο οπτικών ινών duplex, LC/SC, 9/125µm, OS2, 10m

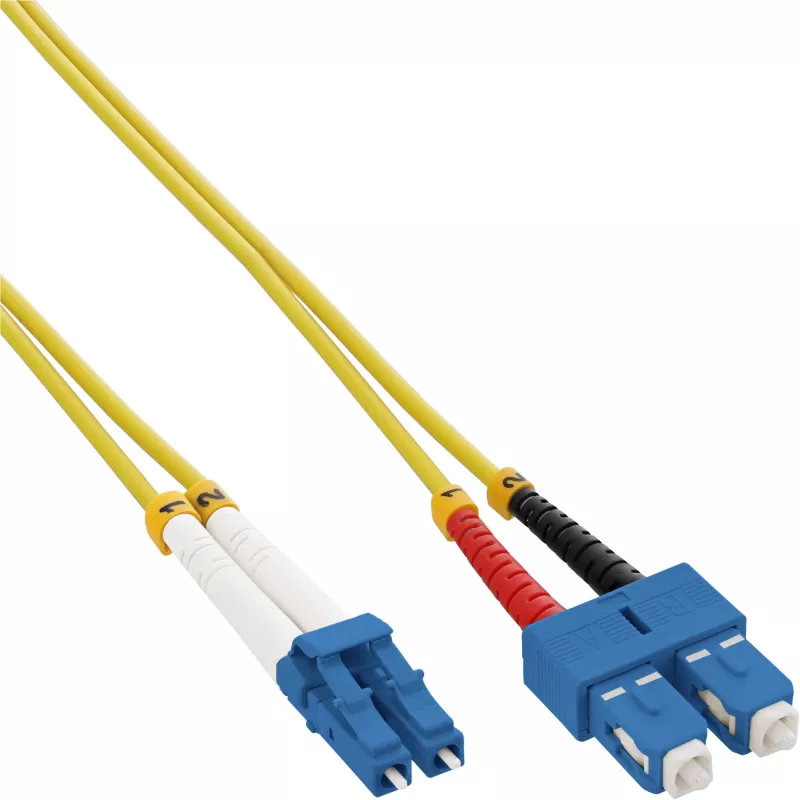

The InLine Fiber Optical Duplex Cable LC/SC 9/125µm OS2 10m is a single-mode duplex patch cable designed for long-distance, high-speed optical networks. It features LC connectors on one end and SC connectors on the other, with a 9/125µm core/cladding dimension optimized for OS2 single-mode transmission. The 10 m length provides flexibility for rack-to-rack and equipment-to-equipment connections in data centers, telecommunications rooms and structured cabling installations.

Advantages

This fiber duplex cable supports OS2 single-mode performance, delivering low attenuation and high bandwidth for long-reach links. The combination of LC and SC connectors allows interoperability between different equipment types and patch panels. Duplex configuration enables simultaneous bi-directional communication, while the standardized 9/125µm core ensures compatibility with common single-mode transceivers and passive components.

Key specifications

• Fiber type: single-mode OS2
• Core/cladding diameter: 9/125 µm
• Connector types: 2×LC to 2×SC (duplex)
• Length: 10 m
• Duplex configuration for bidirectional transmission
• Typical applications: long-reach data and telecom links

How to use

Route the cable through cable management trays or conduits, avoiding sharp bends and excessive tensile strain. Insert LC connectors into compatible LC ports and SC connectors into SC ports until they click or are secured. Verify proper connection by testing link light indicators on transceivers or using an optical power meter and light source to check attenuation. Handle connector endfaces with care and keep protective caps on spare ends to prevent contamination.

Recommendations

For reliable performance, maintain the cable bend radius recommended for single-mode fibers, keep connectors clean using appropriate fiber cleaning tools, and store spare cable ends with dust caps. Use this LC/SC duplex cable in environments where OS2 single-mode characteristics are required for long-distance or high-bandwidth optical links.

Suitable for

• Data center patching and inter-rack connections
• Long-distance telecommunication links
• Connecting single-mode transceivers and passive devices

Ieteicamā lietošana

Lai nodrošinātu drošu darbību, ievērojiet ieteikto saliekšanas rādiusu vienmoda šķiedrām, regulāri tīriet savienotāju galu virsmas ar speciāliem tīrīšanas līdzekļiem un uzglabājiet brīvos galus ar putekļu aizsargiem. Šis LC/SC dūplekss kabelis ir piemērots OS2 vienmoda sakariem, kur nepieciešama līnija uz tālu attālumu vai ar lielu datu caurlaidspēju.
