InLine® καλώδιο επέκτασης DC, γωνιακό βύσμα αρσενικό, 5,5 x 2,5 mm, λευκό, 0,5 m

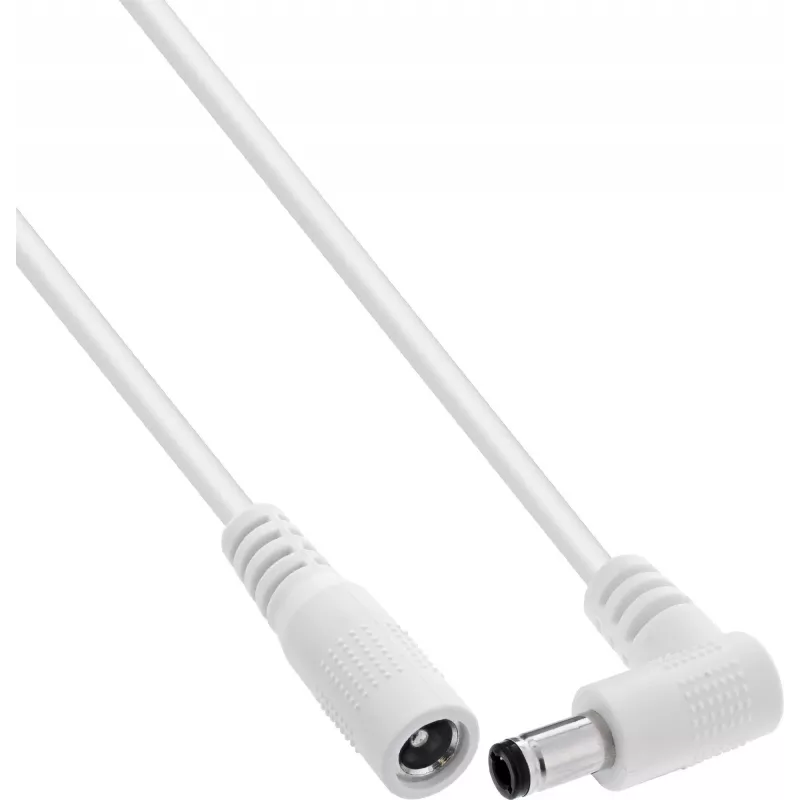

The InLine® DC extension cable with right-angle plug extends existing DC power connections. It features a 5.5 x 2.5 mm DC plug and socket, a 2-core cable with PVC sheath, and is suitable for 12–24 V DC applications.

Key features

• Right-angle DC plug for space-saving connection
• 2-core cable with PVC sheath
• Nickel-plated contact housing
• Unshielded

Specifications

• Brand: InLine
• MPN: 26955K
• Product type: Power Cord
• Connector A: DC plug, angled
• Connector B: DC socket, straight
• Connector dimensions: 5.5 x 2.5 mm
• Conductor cross-section: AWG 18
• Cable construction: 2-core
• Jacket material: Polyvinyl chloride (PVC)
• Outer cable diameter: 5.0 ± 0.2 mm
• Operating voltage: 12–24 V (DC)
• Maximum power: 140 W
• Cable length: 0.5 m
• Product colour: White
• Contact housing: Nickel-plated
• Shielding: Unshielded
• UL: No
• Design: Angled
• Signal: Power
• Country of origin: China
• EAN: 4043718349968
• Customs tariff number: 8544429090
