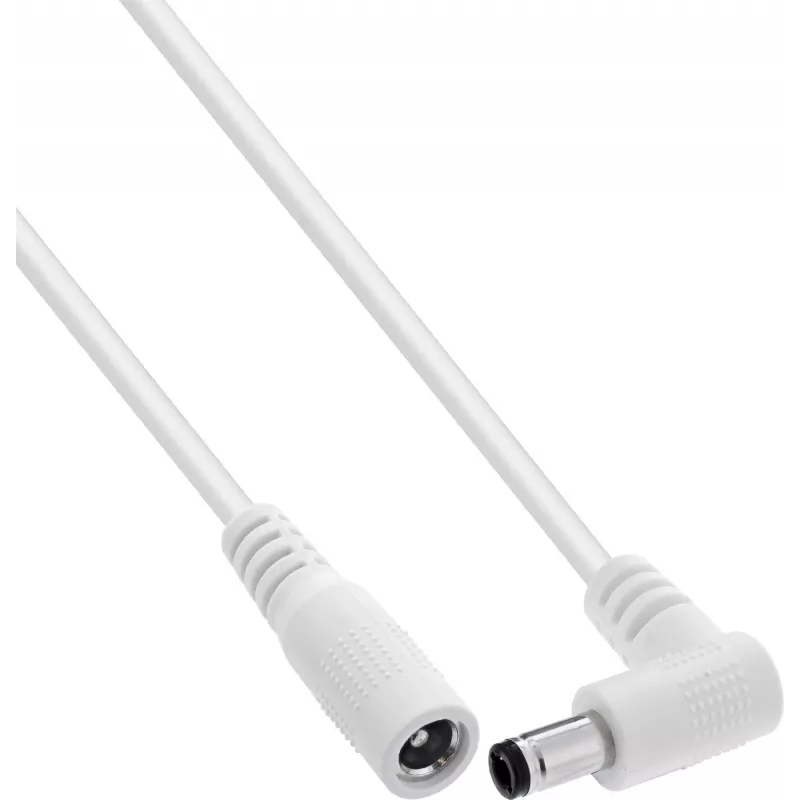

InLine® καλώδιο επέκτασης DC, γωνιακό βύσμα αρσενικό, 5,5 x 2,1 mm, λευκό, 0,5 m

The InLine® DC extension cable with a right-angle plug and 5.5 x 2.1 mm connectors extends existing DC power connections. It features a 2-core AWG 18 cable with a PVC jacket and is suitable for 12–24 V DC applications up to 140 W.

Key features

• Right-angle DC plug and straight DC socket for space-saving connection
• 2-core cable with PVC sheath
• Nickel-plated contact housing
• Unshielded

Specifications

• Brand: InLine
• MPN: 26955M
• Product type: Power Cord
• Cable length: 0.5 m
• Product colour: White
• AWG wire size: 18
• Jacket material: Polyvinyl chloride (PVC)
• Connector A: DC plug, angled
• Connector B: DC socket, straight
• Connector dimensions: 5.5 x 2.1 mm
• Operating voltage: 12–24 V (DC)
• Maximum power: 140 W
• Outer cable diameter: 5.0 ± 0.2 mm
• Contact housing: Nickel-plated
• Shielding: Unshielded
• Design: Angled
• Signal: Power
• Country of origin: China
• EAN Barcode: 4043718349906
