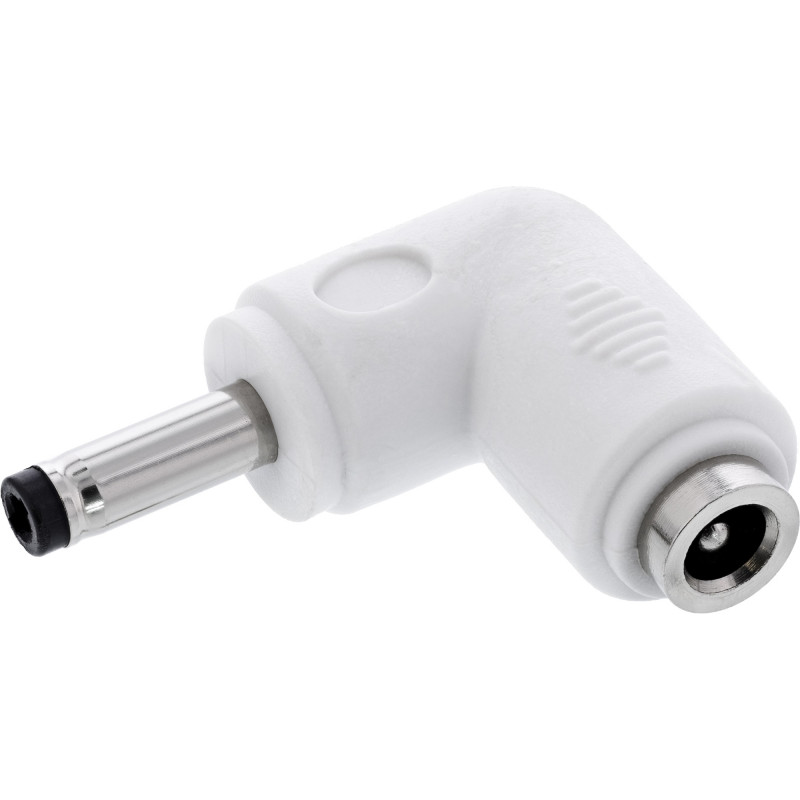

InLine® DC-Adapter, 4,0 x 1,7 mm, αρσενικό βύσμα/θηλυκή υποδοχή, γωνιακό, λευκό

The InLine® DC adapter with 4.0 x 1.7 mm plug and socket features an angled design that directs the connected cable to the side, helping to save space and keep cable management tidy. It is ideal for confined installation spaces, such as behind devices, close to walls, or within compact enclosures where a straight plug would protrude too far. This passive adapter allows you to extend an existing power connection without replacing the cable.

Key features

• Angled 90° design for space-saving cable routing
• Connects a 4.0 x 1.7 mm DC male plug to a DC female socket of the same size
• Passive operation – does not alter voltage or current
• Easy to retrofit between a compatible power supply and device connection
• Suitable for installations, test set-ups, and equipment racks

Specifications

• Brand: InLine®
• MPN: 26899F
• Product colour: White
• Connection 1: DC male plug (4.0 x 1.7 mm)
• Connection 2: DC female socket (4.0 x 1.7 mm)
• Operating voltage: 12 V
• Maximum operating current: 2 A
• Maximum power: 24 W
• Housing material: PVC
• Metal sleeves: Nickel-plated
• Type: Angled
• Article dimensions: 2.40 cm (W) x 1.00 cm (H) x 3.00 cm (L)
• Net weight: 0.004 kg
• EAN: 4043718350056
• Country of origin: China
