InLine χειροκίνητος διακόπτης RJ45 1 σε 4, 5x υποδοχή RJ45 Fast Ethernet

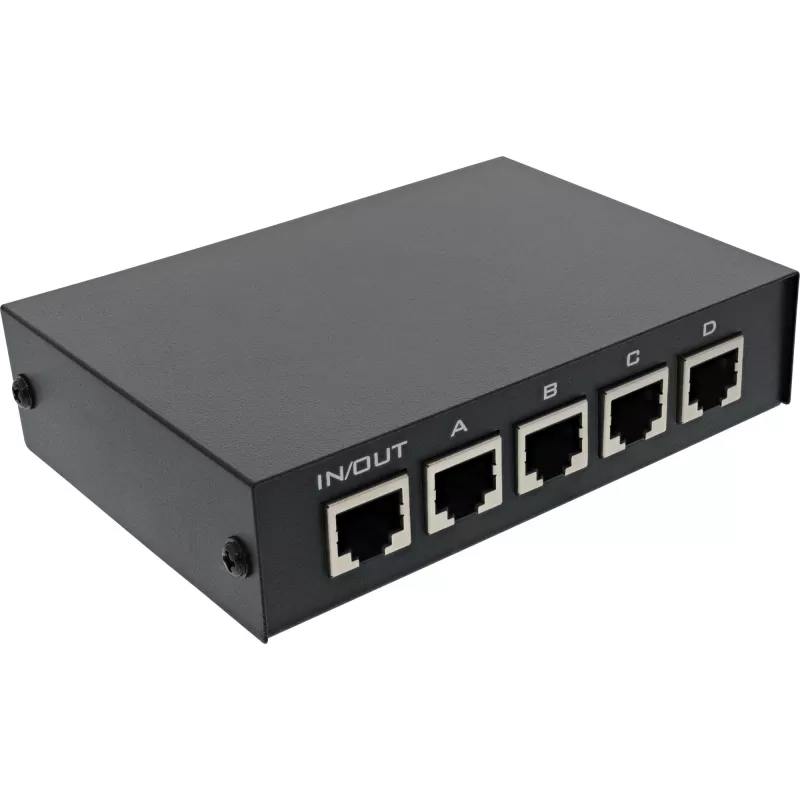

This manual change-over switch allows splitting or selecting signals via RJ45 between one input and four outputs (and vice versa). It provides five RJ45 sockets and supports Fast Ethernet (10/100) for standard network connections. The switching is purely mechanical and requires no external power; the shield is not used.

Advantages

The InLine RJ45 manual 1 to 4 switch offers a simple, power-free solution for connecting up to four devices through five RJ45 sockets. Its mechanical operation ensures immediate switching without configuration, and support for Fast Ethernet (10/100) maintains compatibility with common network equipment. Compact black housing makes it suitable for desk or patch‑panel use where a basic, reliable selector is required.

Suitable for

Key specifications

How to use

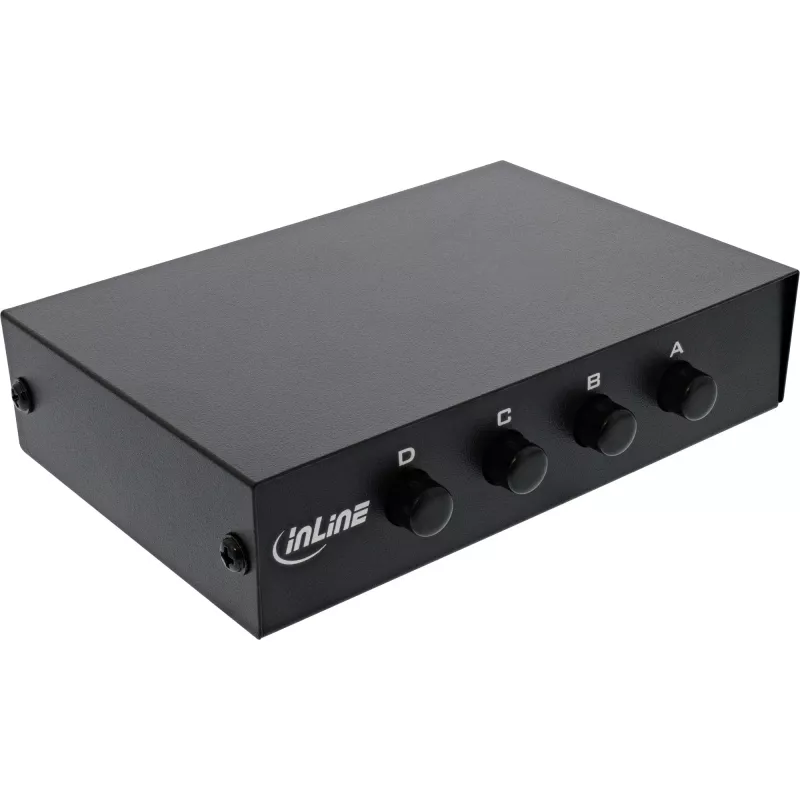

Connect the incoming line to the designated input RJ45 socket and the target devices to the output sockets. Use the manual switch on the unit to select which output is connected to the input. As the device is mechanical, ensure the switch is fully moved into position to establish the connection. No software, drivers or power supply are needed.

Recommendations

For reliable operation, use the switch with standard 10/100 Ethernet cables and avoid hot-plugging under heavy data load. Do not rely on this device for permanent network segmentation or high-speed (Gigabit) applications, as it supports Fast Ethernet only.
