InLine AmpEQ Tri-Tone Hi-Res AUDIO Pre- & Headphone-Amp, 3,5 mm Stereo, τροφοδοσία USB

Individual tone control:The integrated 3-band equalizer enables the targeted adjustment of treble, mid-range and bass for optimum sound balance.
Additional sound optimization:With loudness function and equalizer switch for more dynamics and present reproduction at low volumes.
Versatile connection options:Two line INs and separate outputs for headphones and line OUT offer flexible application options.
Compact, robust and USB-powered:Aluminum housing and power supply via micro USB make the amplifier mobile and suitable for use anywhere.
Ideal for demanding setups:Supports headphones with 16 to 600 ohms and delivers a stable stereo signal with 90 dB channel separation.

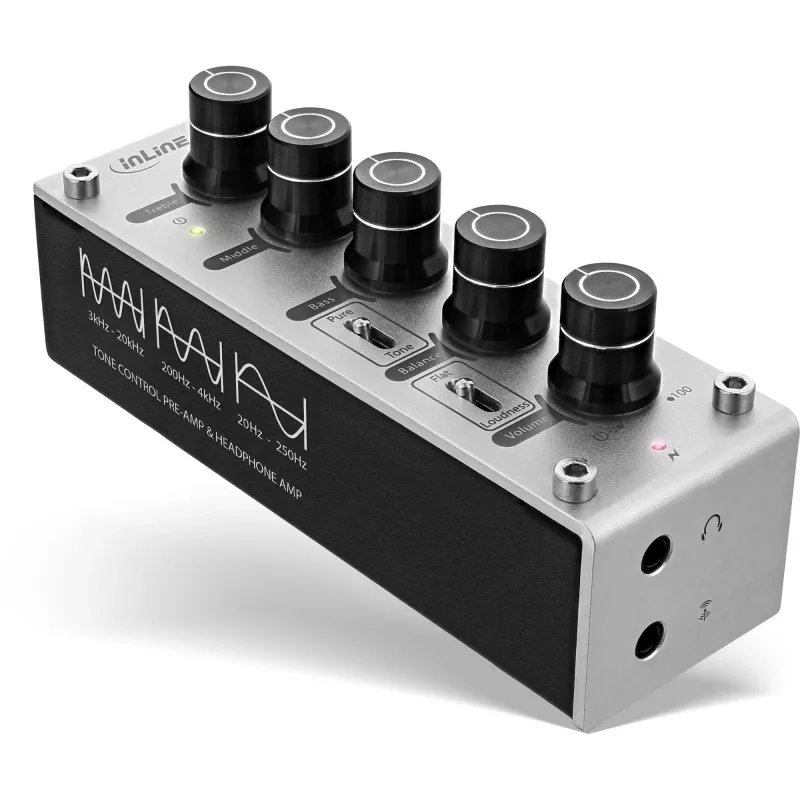

The InLine® AmpEQ is a compact hi-fi headphone amplifier with integrated 3-band equalizer for individual sound control. Thanks to treble, mid-range and bass controls, audio sources can be specifically adjusted - ideal for professional sound assessments or demanding applications at the workplace.
The AmpEQ also offers a loudness function that provides more fullness of sound at low levels. The equalizer can be activated or deactivated with a switch to quickly switch between unprocessed and adjusted sound. The signal processing is analog, which preserves a natural sound character.
Two 3.5 mm line inputs allow you to connect various sources. Separate outputs for headphones (equalizer & amplification) and an additional line OUT (equalizer signal) enable flexible application scenarios - e.g. as an intermediate stage in the audio setup or as a tone control in the monitoring area. Balance and volume controls round off the features.
The amplifier supports headphones with impedances from 16 to 600 ohms and offers stereo crosstalk of 90 dB. Power is conveniently supplied via micro USB (5V), e.g. via a USB power supply unit or a PC. The compact metal housing ensures stability in daily use. The gold-plated connections ensure good signal quality over the long term.

Equalizer frequency ranges:Treble 3KHz-20KHz, Mid 200Hz-4KHz, Bass 20Hz-250Hz
Other controls:volume, balance (L/R)
stereo crosstalk:90 dB
Outputs:3.5mm headphones, 3.5mm line OUT
Inputs:2x 3.5mm line IN
Power supply:5V/0.5A via micro USB
Material:Metal housing with aluminum elements
Dimensions:11.6 x 3.8 x 4.8 cm

How to use

Connect the preamp's USB cable to a USB power source. Plug the audio source or playback device into the 3.5 mm input and connect your headphones to the 3.5 mm output. Use the three EQ controls to adjust bass, midrange and treble to taste, and engage the loudness button when listening at low volumes to restore perceived fullness. Make small incremental adjustments to avoid excessive amplification or distortion.

Recommendations

Do not use the website 'Drivers-Download' referenced in the original operating instructions; it is not affiliated with the manufacturer and has been misused for phishing. Avoid visiting that site. For software or driver needs, consult the official InLine documentation or the retailer from whom you purchased the device.
