InLine 76619K Κάρτα/προσαρμογέας διασύνδεσης εσωτερική PCI

Adds two classic PCI slots to modern systems:Ideal for continuing to use proven PCI expansion cards in new PC or industrial systems.
Reliable signal transmission via connection cable:60 cm long cable connects PCIe main card with add-on card and ensures stable data communication.
Flexible power supply via SATA 15-pin connector:Power supply directly to the main card – no additional adapter required.
Driverless installation for maximum compatibility:Operating system automatically recognizes the card – no manual setup required.

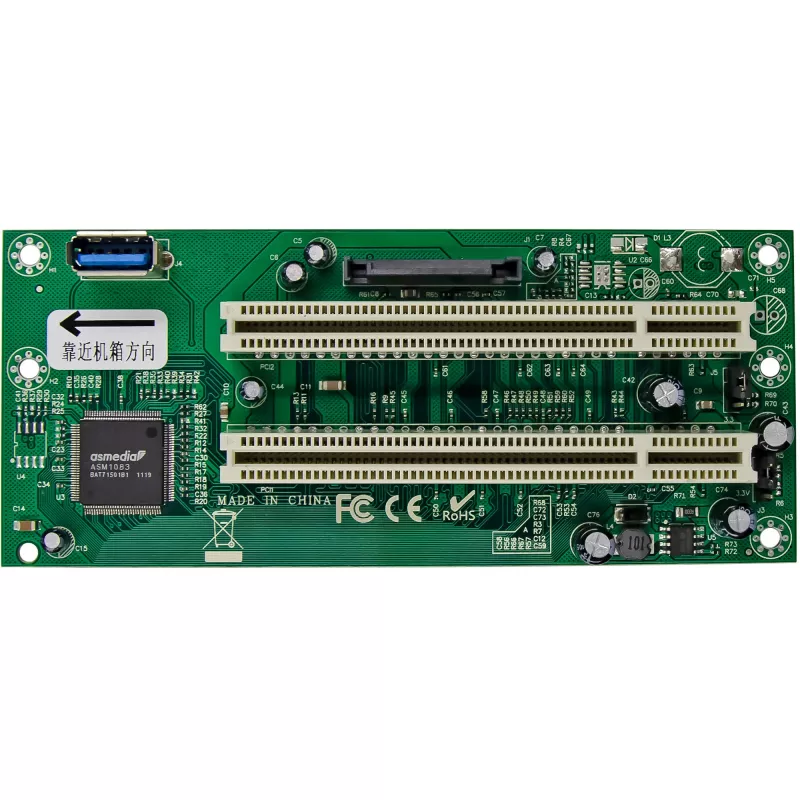

ASMedia bridge chip for high compatibility:The integrated ASM1083 chipset ensures stable PCIe-to-PCI conversion even under older operating systems.

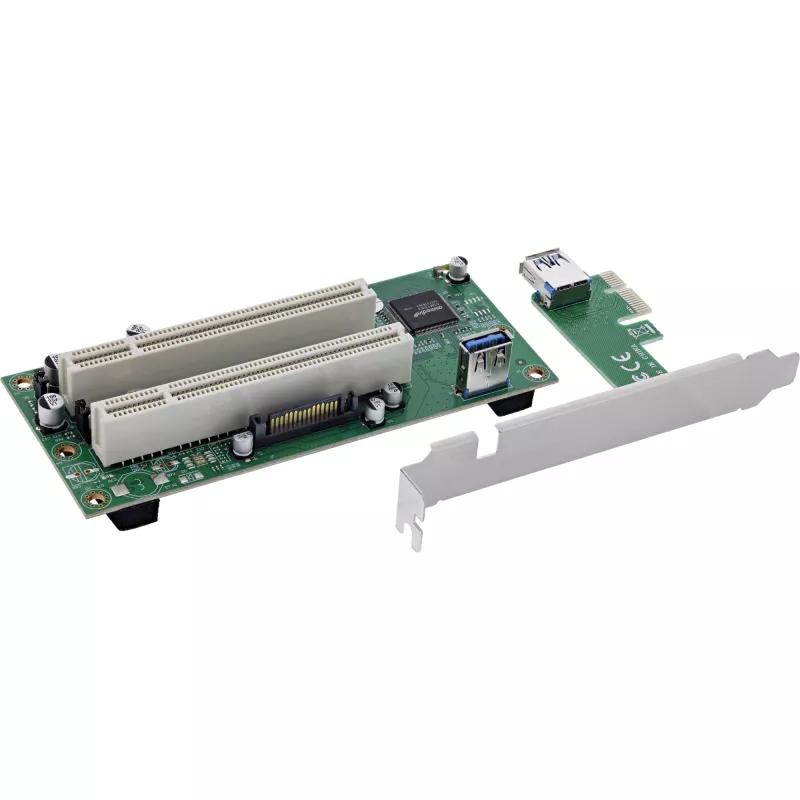

With the InLine® interface card, PCIe x1 to 2x PCI 32-bit, you can expand modern computers with two classic PCI slots. The system consists of a PCIe main card with ASMedia ASM1083 bridge chip and an add-on card connected via a 60 cm cable. This makes the card ideal for continuing to use older but functionally relevant PCI expansion cards – for example, in industrial PCs, test systems, or special applications where PCIe is not a substitute.
The card is driverless and compatible with a wide range of operating systems, including all Windows versions from XP onwards and Linux kernels from version 2.4 onwards. Power is supplied via a standardized SATA 15-pin connector, which allows for easy integration into existing setups. The PCI signals are reliably transmitted to the add-on card via the connection cable, which has two 32-bit slots.
Whether in a professional environment or in ambitious DIY projects, this solution offers a high-quality and durable way to continue using proven PCI hardware – without compromising on system updates.
Technical data

PCIe standard: PCIe v1.1 x1 lane (connection to the main card)
Interfaces: 2× PCI 32-bit, 33/66 MHz (provided on the add-on card)
Chipset: ASMedia ASM1083 (PCIe-to-PCI bridge)
Power supply: SATA 15-pin power connector on the main card
Driver: No driver installation required

Supported operating systems

Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 (32/64-bit)
Windows Server 2003 / 2008 / 2012 / 2016
Linux kernel 2.4 or newer

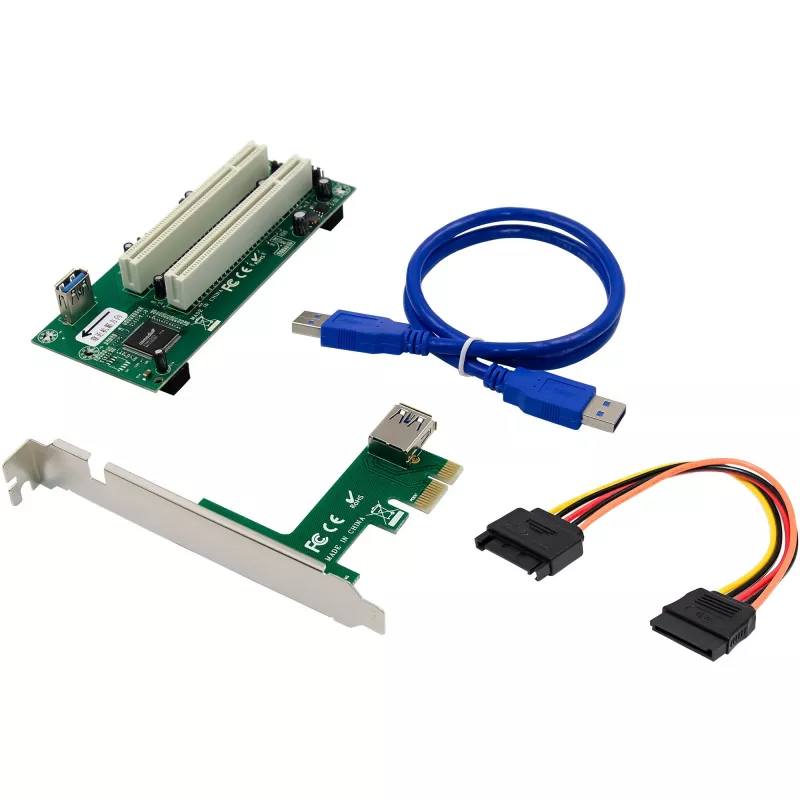

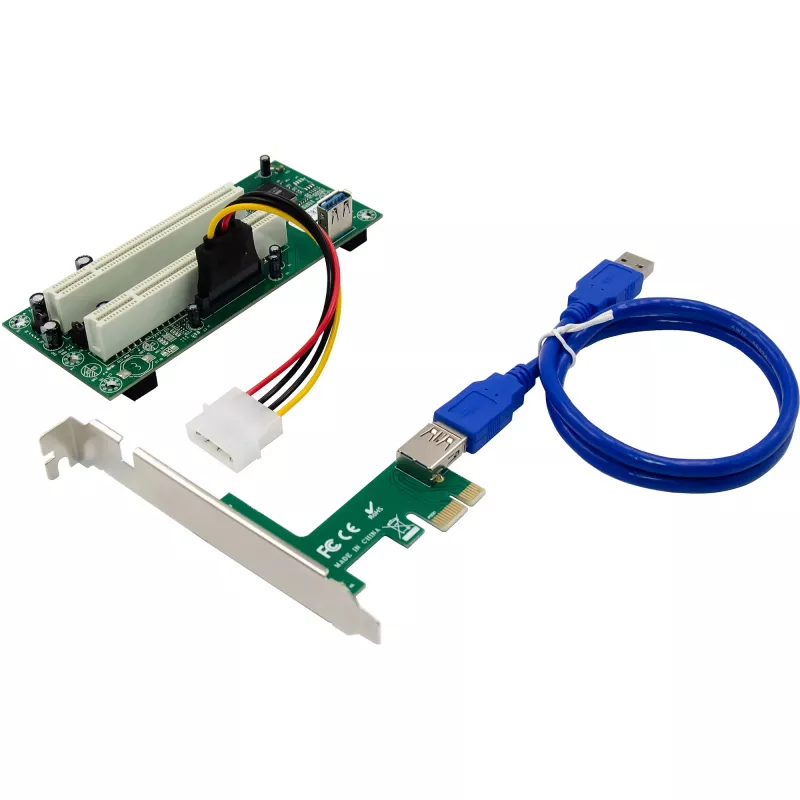

Scope of delivery

1x InLine PCIe x1 to 2× PCI interface card (main card, with PCIe plug-in card)

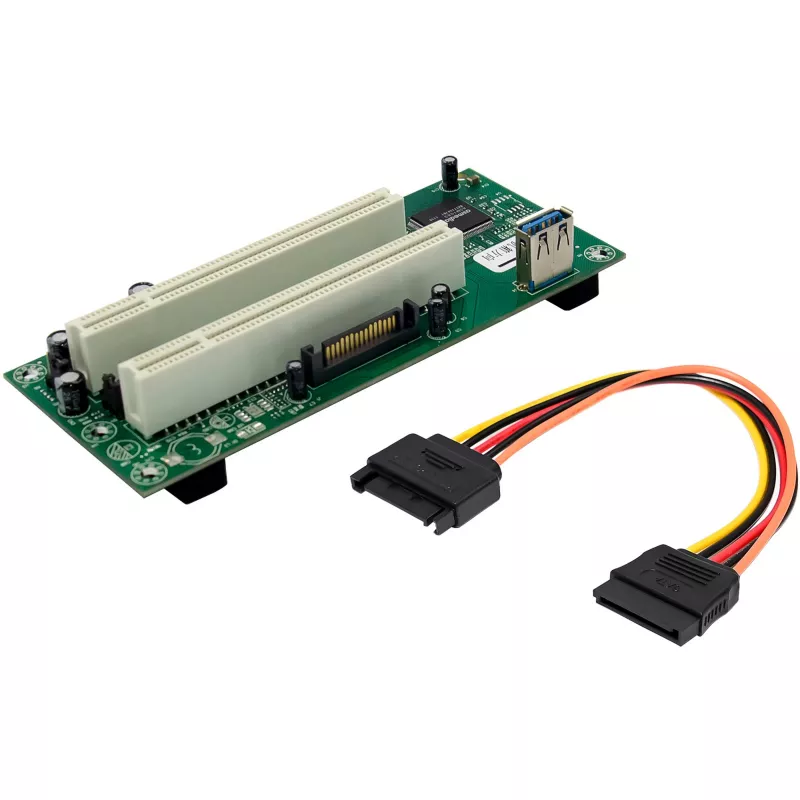

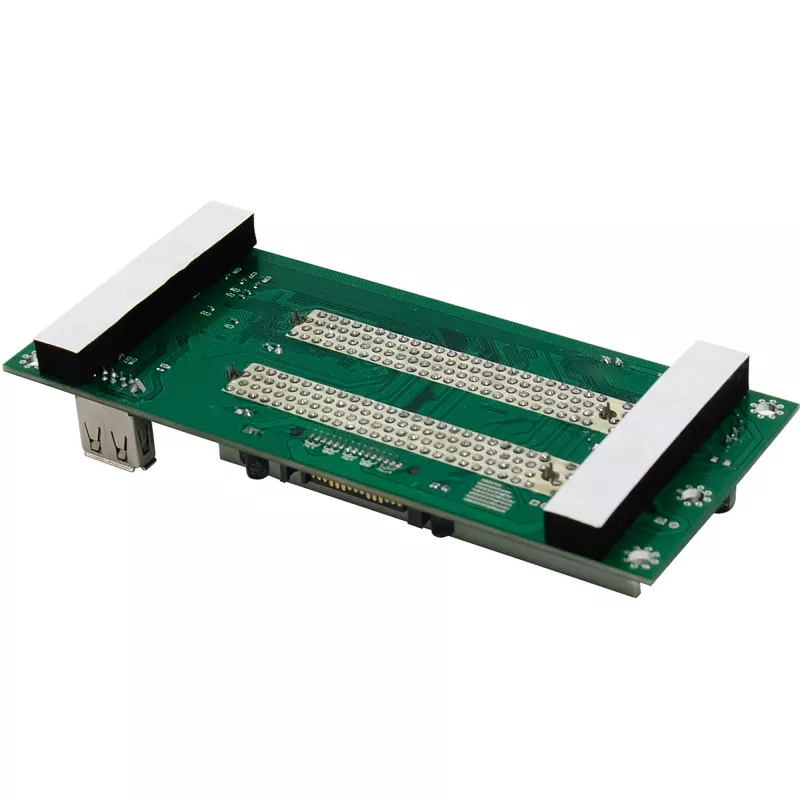

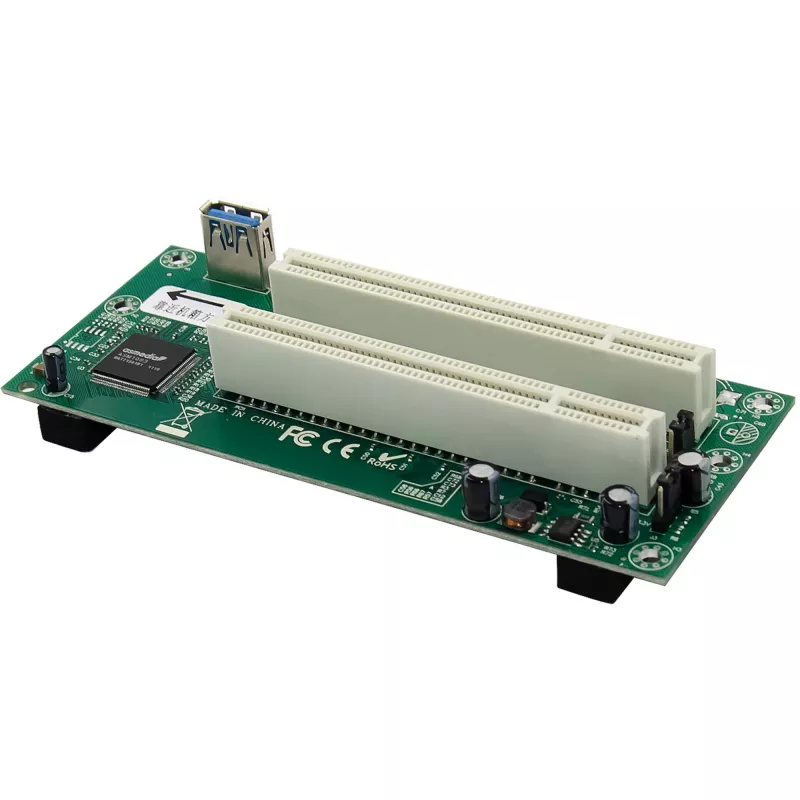

1x Add-on card with 2× PCI slots
1x 60 cm connection cable between main card and add-on card
1x SATA 15-pin power cable (approx. 5 cm)
1x User manual German/English

InLine 76619K. Host interface: PCIe, Output interface: PCI, Host interface gender: Male. Chipset: ASMedia ASM1083. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP, Linux operating systems supported: Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4,..., Server operating systems supported: Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016. Width: 132 mm, Depth: 1.84 mm, Height: 60 mm. Cables included: SATA, USB, Package width: 125 mm, Package depth: 180 mm

How to use

Install the main card into an available PCIe x1 slot on the motherboard, connect the add-on card using the supplied 60 cm cable and supply power to the main card via the SATA 15-pin power cable. The operating system should detect the adapter automatically; then install and configure any legacy PCI expansion cards in the add-on card’s slots according to the cards’ documentation.

Recommendations

For reliable operation, connect the SATA power cable to a stable power source and secure both cards inside the chassis to avoid strain on connectors. Verify operating system compatibility with the ASMedia ASM1083 bridge when using older systems and place the add-on card where it does not obstruct airflow or other components.
