InLine 69927G Υποδοχή LWL SC, κοντό, IP68, 2x2 υποδοχή SC θηλυκή, M20

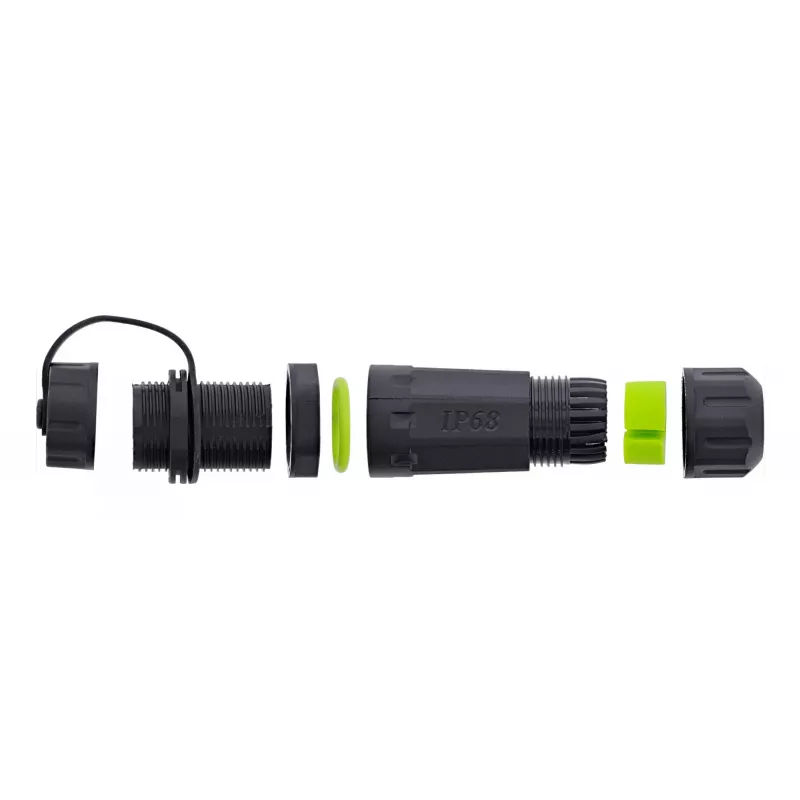

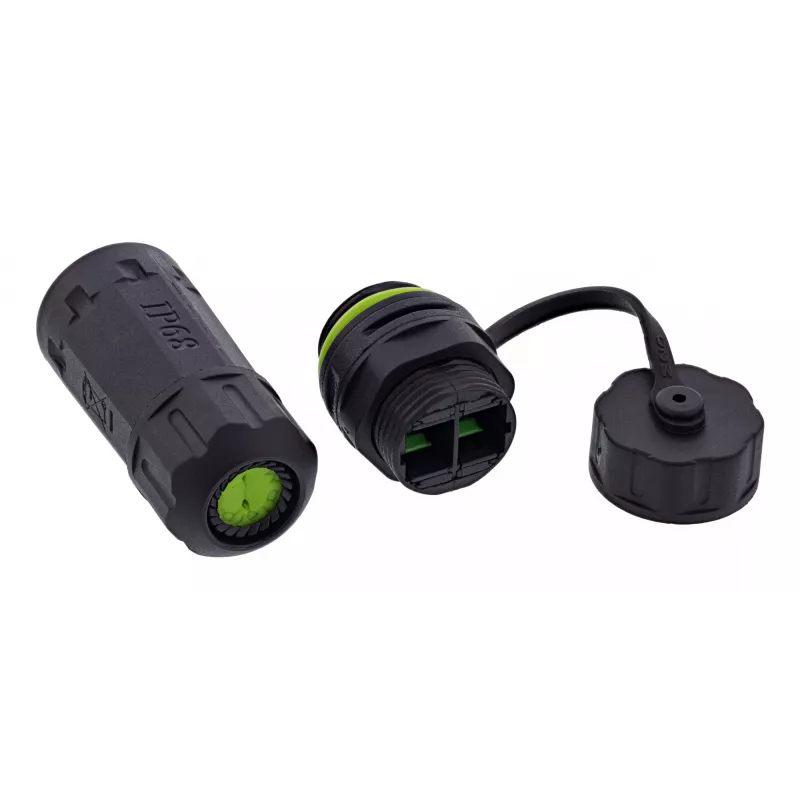

The InLine 69927G is a compact SC duplex fiber optic coupler with a short 74 mm body, designed for space-saving installations in outdoor boxes, network cabinets, and distribution housings. Its IP68-rated PA66 housing with silicone seal protects the connection against dust, water, and mechanical influences. The pre-assembled SC duplex female/female module supports single-mode UPC and APC fibers and installs tool-free via an integrated screw mechanism with M20 thread.

Key features

• Compact 74 mm length for confined installations
• IP68 protection against dust, water, and mechanical influences
• SC duplex female/female module for single-mode UPC/APC fibers
• Tool-free installation with integrated screw mechanism and rubber seal
• M20 thread for integration into standard housing openings
• PA66 housing with silicone seal
• Repeated installation possible without losing protective effect

Specifications

• Brand: InLine
• MPN: 69927G
• Module: SC duplex female/female
• Application: Single-mode UPC/APC
• Thread size: M20
• For cable diameter: 2.9 mm
• Dimensions: 74 x 26 mm
• IP protection class: IP68
• Temperature resistance: -40 °C to +85 °C
• Material: Nylon (PA66)
• Seal: Silicone
• Colour: Black
• Country of origin: Taiwan
