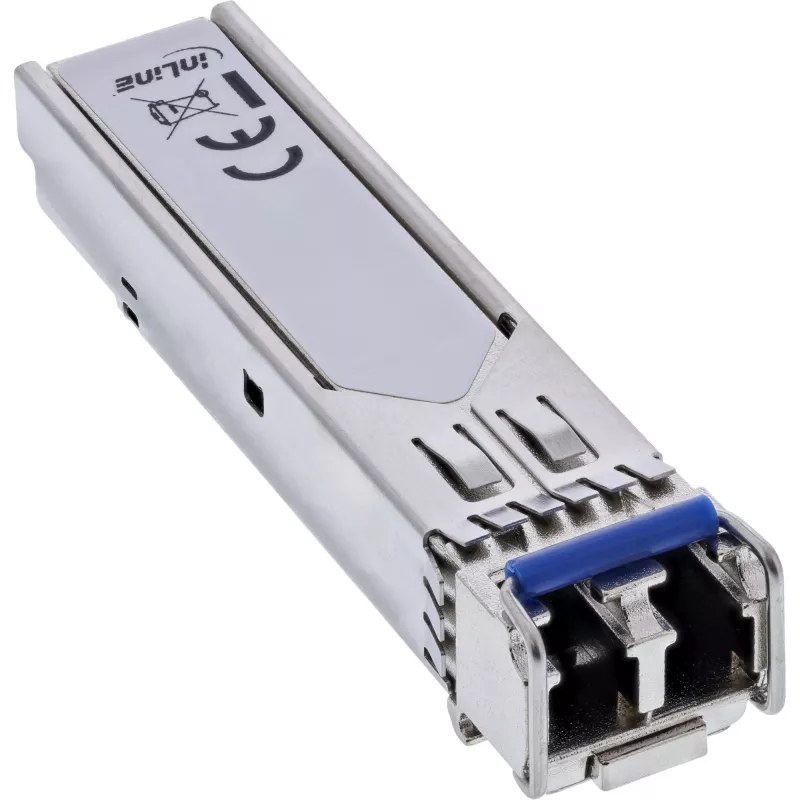

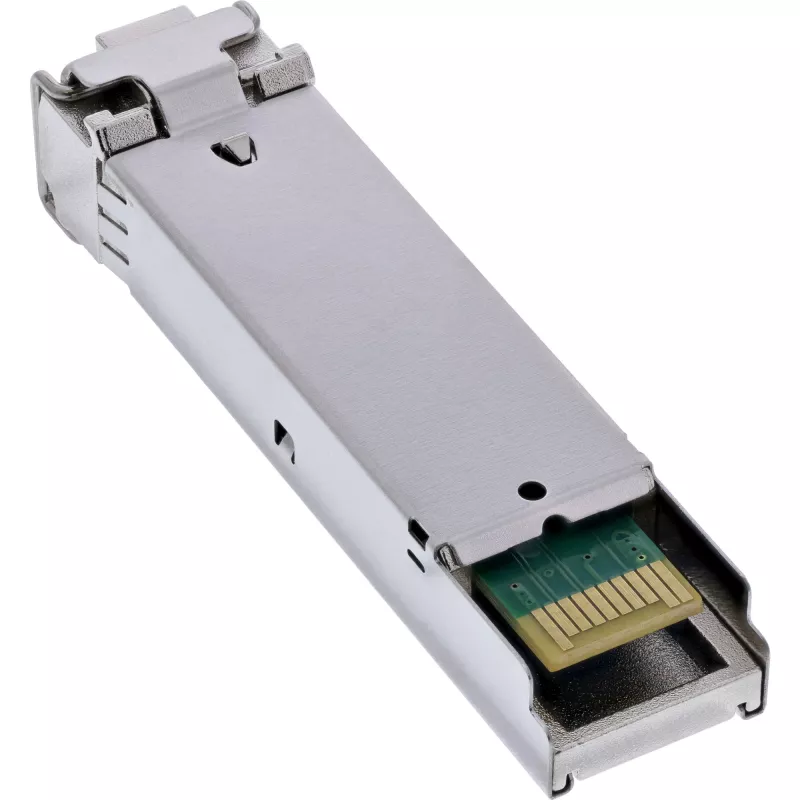

InLine 32335S Μονάδα SFP, 2,5 Gb/s, οπτική ίνα Singlemode 1310 nm, 15 km, LC

The InLine 32335S is an SFP transceiver module designed for 2.5 Gb/s data transmission over single-mode fiber. It features an optical LC duplex interface with a 1310 nm wavelength and supports distances up to 15 km. The module includes digital diagnostic monitoring (DDM) for real-time performance control and is hot-pluggable for easy installation or replacement.

Key features

• Transmission speed: 2.5 Gb/s
• Optical interface: LC duplex
• Wavelength: 1310 nm
• Max. distance: 15 km (single-mode fiber)
• Digital diagnostic monitoring (DDM)
• Hot-pluggable design
• Operating voltage: +3.3 V
• Operating temperature: 0 °C to 70 °C
• Storage temperature: -40 °C to 85 °C
• Coding: CISCO
• Number of ports: 1

Specifications

• Brand: InLine
• MPN: 32335S
• Type: SFP module
• Transmission speed: 2.5 Gb/s
• Wavelength: 1310 nm
• Optical interface: LC duplex
• Max. distance: 15 km
• Digital diagnostic monitoring (DDM)
• Hot-pluggable design
• Operating voltage: +3.3 V
• Operating temperature: 0 °C to 70 °C
• Storage temperature: -40 °C to 85 °C
• Coding: CISCO
• Number of ports: 1
