InLine 23103B Βάση τοίχου TV 109,2 cm (43 ίντσες) Μαύρο

Full freedom of movement:Swivels ±90° and tilts from +5° to −10° for flexible adaptation to any room situation.
Space-saving & variable:Extendable wall distance from 48 mm to 418 mm for optimal integration into different environments.
Universal compatibility:Supports VESA standards from 75×75 to 200×200 mm for TVs from 23 to 43 inches.
Robust construction:Powder-coated steel with a high load capacity of up to 35 kg ensures a durable solution.
Efficient installation:Removable panel plate and included mounting hardware enable quick and secure installation.

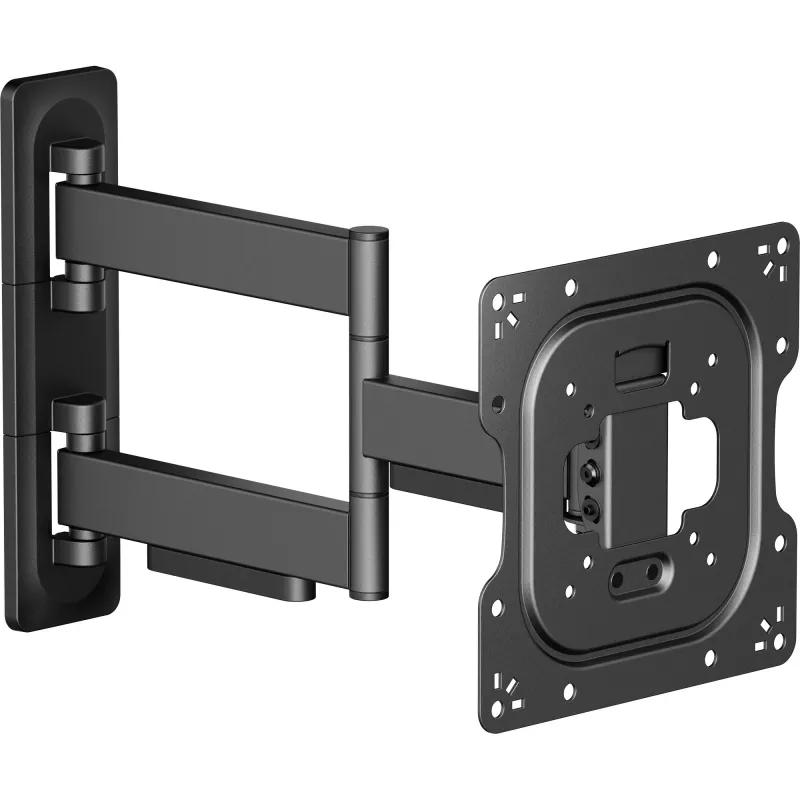

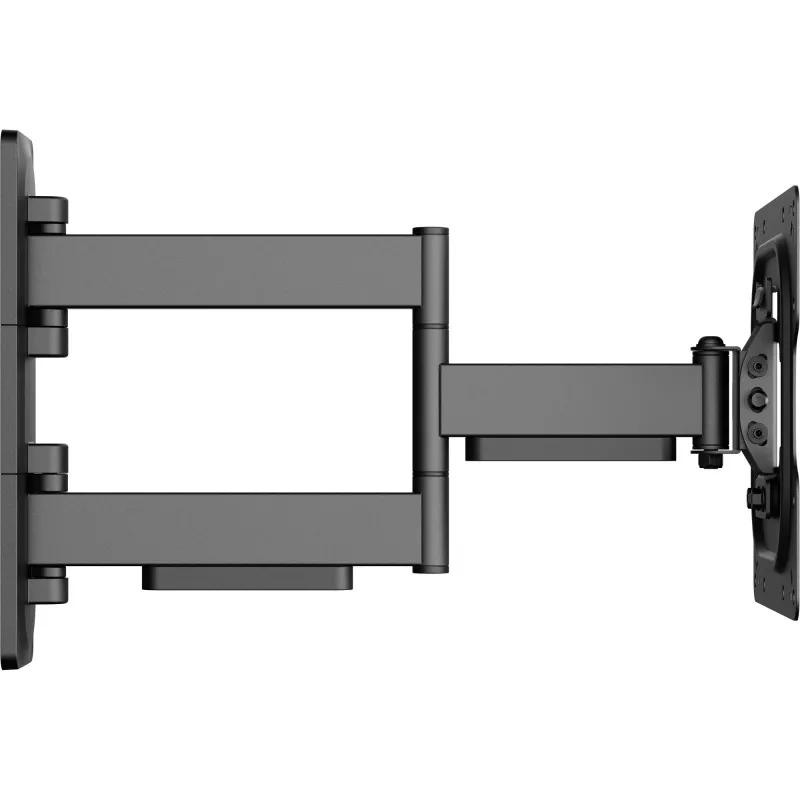

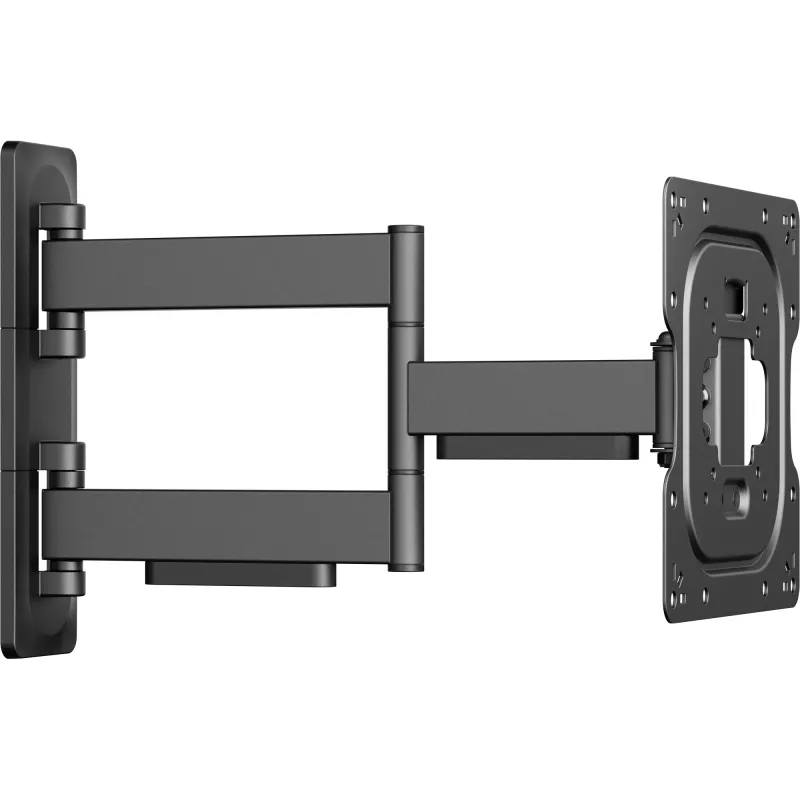

The InLine® Full-Motion TV Wall Mount offers a reliable and flexible solution for professional mounting of TVs ranging from 23 to 43 inches. With a load capacity of up to 35 kg, it meets the requirements for stability and safety in a wide variety of environments.
Thanks to the ±90° swivel function and a tilt of +5° to −10°, screens can be optimally aligned. This facilitates use in rooms with changing lighting conditions or variable seating positions. The extendable wall distance of 48 mm to 418 mm provides additional flexibility and enables space-saving mounting when the device is not in use.
The mount is compatible with common VESA standards (75×75, 100×100, 200×100, 200×200 mm) and is therefore versatile. The robust steel and plastic material ensures durability and high load capacity. The powder-coated surface in matt black gives the mount a modern design that blends discreetly into any environment.
For quick installation, the mount is equipped with a removable panel plate. In addition, the screws and dowels supplied facilitate installation on solid or stud walls. Cable management and decorative covers round off the product by ensuring a tidy and professional appearance.

Screen size: 23–43 inches
Load capacity: up to 35 kg
VESA compatibility: 75×75, 100×100, 200×100, 200×200 mm
Swivel range: ±90
Tilt range: +5° to −10

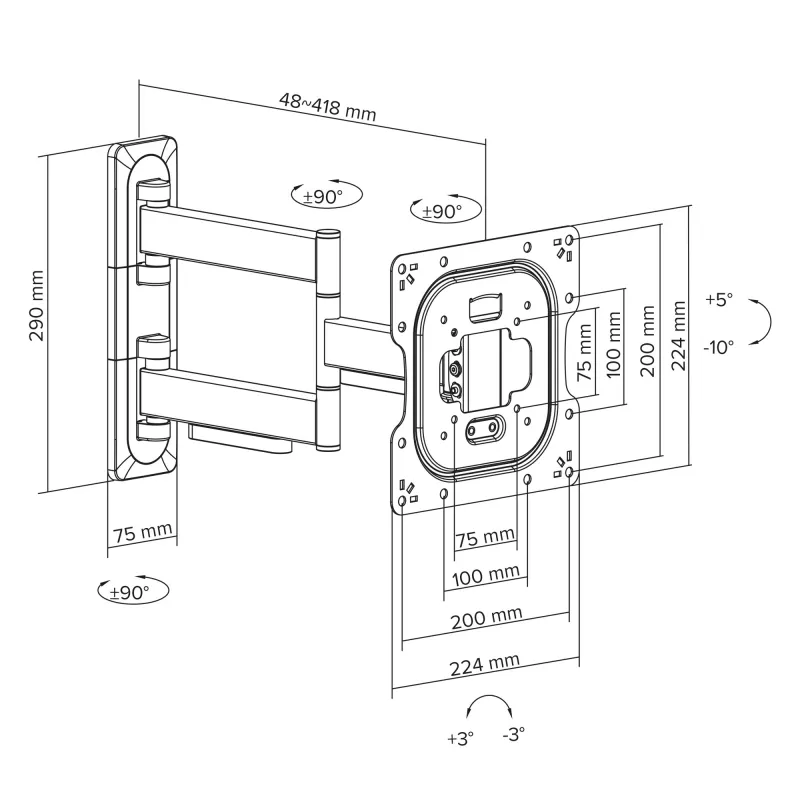

Wall distance: 48–418 mm (extendable)
Material: Steel, powder-coated in matt black
Integrated cable management
Removable panel plate for easy installation
Mounting: Suitable for solid walls and stud walls

InLine 23103B. Maximum weight capacity: 35 kg, Minimum screen size: 58.4 cm (23"), Maximum screen size: 109.2 cm (43"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 200 mm. Tilt angle range: -10 - 5°, Swivel angle range: -90 - 90°, Distance to the wall (min): 4.8 cm, Distance to the wall (max): 41.8 cm. Product colour: Black

How to use

Select a structurally sound mounting location on a solid wall or stud wall and verify that the chosen position supports the weight of the TV and mount. Attach the removable panel plate to the TV using the appropriate VESA holes and hardware, then fix the mount to the wall using the supplied screws and dowels following the installation instructions. Hang the TV onto the mounted arm assembly, secure the locking mechanism if present, and adjust swivel and tilt to the desired viewing angle. Route cables through the integrated cable management system for a neat finish.

Recommendations

For safe and stable installation, confirm wall material and choose fixings suitable for concrete, brick or stud walls. Do not exceed the specified load capacity of 35 kg. When adjusting swivel and tilt, support the TV to avoid sudden movement. Periodically check mounting hardware for tightness and inspect the mount for signs of wear. Use the extendable wall distance to optimize viewing angle and room clearance as required.
