InLine 17925X Καλώδιο HDMI 25 m HDMI Type A (Standard) Μαύρο

High transmission quality over long distances:Hybrid cable technology combines fibre optics and copper for loss-free 8K/4K signal transmission up to 50 m.
Future-proof thanks to HDMI 2.1 support:Transmits up to 48 Gb/s and supports 3D, Dynamic HDR, eARC and 240 Hz - ideal for current and upcoming AV standards.
Rugged aluminium connectors:High-quality workmanship with gold-plated contacts for stable, long-lasting connections in professional installations.
Compact cable diameter:With an outer diameter of just 4.8 mm, it can be laid flexibly, even in tight cable ducts and wall openings.

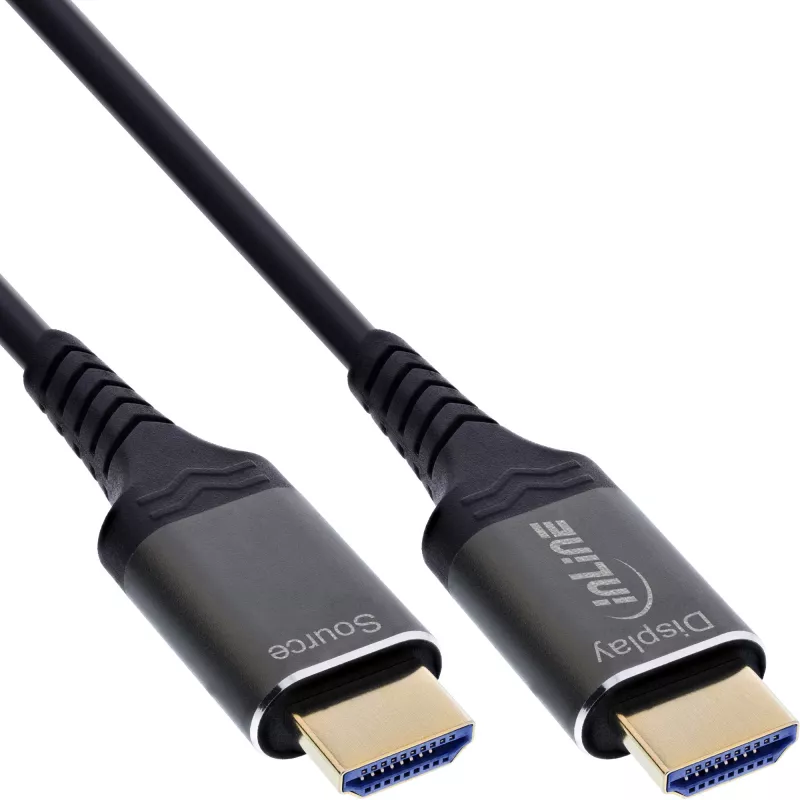

Directional for stable signal quality:Clear labelling of the signal direction ensures error-free installation and maximum performance.

The InLine® HDMI AOC cable series is the ideal solution for professional applications where the highest signal quality is required, even over long distances. Thanks to the combination of four fibre optic cores and seven copper strands, these hybrid cables offer uncompromising transmission of 8K/4K video signals with a bandwidth of up to 48 Gb/s. All current HDMI 2.1 standards such as Dynamic HDR, eARC, 3D or 240 Hz are reliably supported.
The cables are designed to be directional to ensure maximum signal stability - clearly indicated by the labelling on the connectors (source/display). Robust aluminium connectors with gold-plated contacts ensure long-lasting connections in demanding AV installations. Thanks to the narrow cable diameter of just 4.8 mm and the flexible PVC sheathing, the AOC cables can be laid easily and save space - ideal in conference rooms, digital signage applications or technical centres.
Rely on modern connection technology that makes no compromises, even over longer distances.

Hybrid cable consisting of 4 fibre optic and 7 solid copper strands
Directional signal cable: HDMI plug (source) to HDMI plug (display)
Cable: Ø 4.8 mm, PVC-sheathed
Max. Data transfer rate: 48 Gb/s (12 Gb/s per channel)
Supports 3D, HDCP, EDID, CEC, DDC, Dynamic HDR, eARC, ARC and other specifications according to HDMI

InLine 17925X. Cable length: 25 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.1, 3D, Data transfer rate: 48 Gbit/s, Audio Return Channel (ARC), Product colour: Black

How to use

Connect one HDMI connector to the source device (player, PC, AV receiver) and the other connector to the display (TV, monitor, projector). Ensure both devices are powered and set to the appropriate input. The cable is plug-and-play for typical HDMI equipment; the connected devices will negotiate the highest mutually supported resolution and audio format. For optimal performance, avoid tight bends near the cable ends and route the cable away from large sources of electrical noise.

Recommendations

Install the cable with gentle curves and secure strain relief at both ends. Verify HDMI settings on source and display to enable 8K modes if supported. For long-term installations, avoid repeated heavy flexing and keep the connectors free of dust. If using with extenders, switchers or splitters, confirm that intermediate devices explicitly support Ultra High Speed HDMI and the desired resolution and audio features.
