Ηχητικό θυροτηλέφωνο 2N 9153102

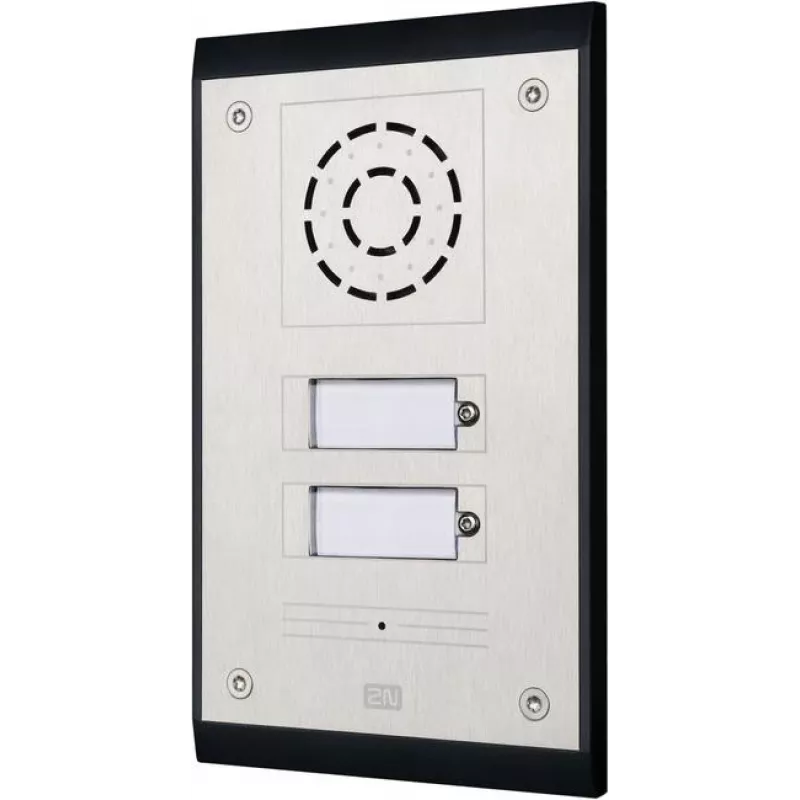

The 2N 9153102 Audio Intercom System (2N Helios IP Uni) is a compact, professionally built door intercom designed for simple installation and reliable audio communication. With a black and silver chassis and dimensions of 115 x 39 x 193 mm, it supports two push buttons, control of one electric lock and includes a protective switch. The device uses IP technology and SIP protocol to integrate with telephone systems and existing LAN networks, providing clear voice connections for entrances to homes, offices or small commercial buildings.

Advantages

The intercom combines the benefits of IP-based communication and SIP telephony with a straightforward installation process that uses standard LAN infrastructure. Its durable construction and practical design ensure resistance to environmental influences, while an intuitive web interface and software application simplify configuration and management of single or multiple units. The system provides controlled access to premises with reliable audio quality and compact dimensions for flexible mounting.

Suitable for

• Residential front doors and family homes
• Small to medium office buildings and reception entrances
• Controlled access points in commercial premises
• Surface or flush mounting in walls or plasterboard

Key specifications

• Model: 2N Helios IP Uni (2N 9153102)
• Dimensions: 115 x 39 x 193 mm
• Buttons: 2 push buttons
• Lock control: control of one electric lock
• Protective switch included
• Connectivity: IP network, SIP protocol

How to use

Install the intercom on a surface or recess it in a wall or plasterboard opening according to the mounting instructions. Connect the device to the local LAN and configure SIP settings via the web interface or the manufacturer’s configuration software. Assign button functions and connect the electric lock to the lock control terminal. Verify audio communication and test the protective switch and lock operation before putting the system into regular service.

Recommendations

For reliable long-term operation, use a stable LAN connection and follow 2N installation guidelines. Regularly back up configuration settings and update firmware through the official 2N interface to maintain compatibility and security.
