Rack τοίχου Intellinet 9U γκρι

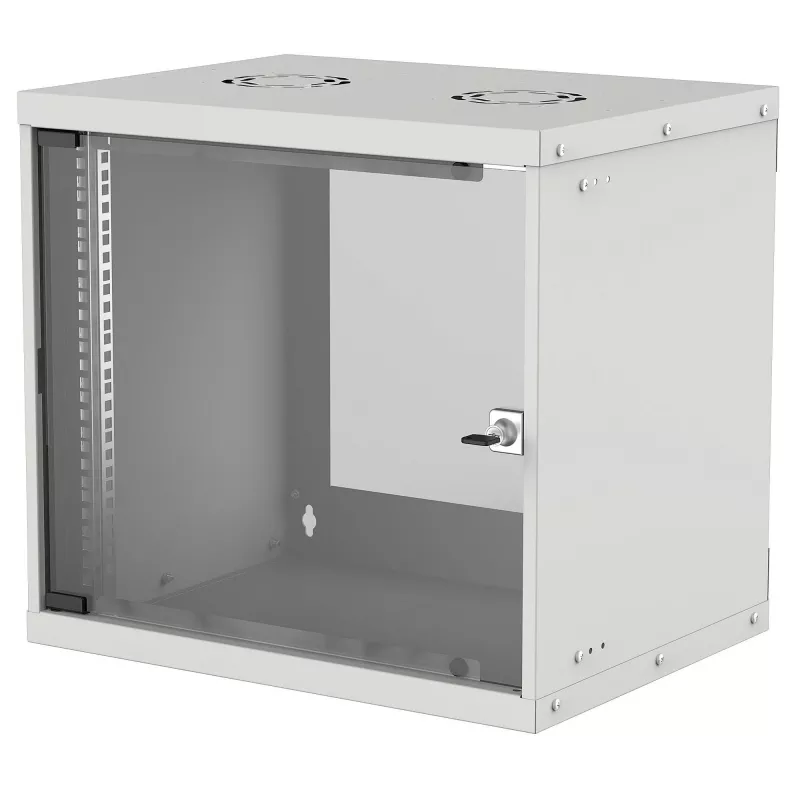

The Intellinet Wall Mounted Rack 9U in grey is a compact wallmount cabinet designed to house and protect network equipment in small or shared spaces. Constructed from cold-rolled, galvanized steel with a reversible tempered-glass front door, the cabinet provides an IP20 level of protection while allowing equipment visibility and easy access. This 9U model has a usable internal depth suitable for common network devices and is intended for fixed wall installation.

Advantages

The cabinet combines sturdy construction and a tempered glass door for visual access, a compact footprint for space-saving wall installation, and an IP20 rating for basic protection against dust and contact. Its grey finish and standard 19" rack compatibility make it suitable for typical network racks and devices. The unit supports a maximum load of up to 50 kg while remaining relatively lightweight for handling and mounting.

Suitable for

• Small office network equipment (switches, patch panels, routers)
• Home lab and SOHO installations where wall space is preferred
• Equipment cabinets in corridors or server closets with limited floor space

Key specifications

• Rack capacity: 9U
• IP rating: IP20
• External dimensions (H×W×D): 487 mm × 540 mm × 400 mm
• Usable depth: approx. 340 mm (as typical for the 9U model)
• Maximum load: 50 kg
• Weight: 10.67 kg
• Colour: Grey
• Front door: reversible tempered glass

How to use

Mount the cabinet to a suitable load-bearing wall using appropriate mounting hardware (not included). Install equipment on the 19" mounting rails inside the cabinet, ensuring the device depth does not exceed the usable internal depth. Route power and network cables through the cabinet openings, close the tempered-glass door for visibility and protection, and secure the door as required. Ensure the total mounted equipment weight does not exceed the specified maximum load.

Recommendations

Choose a mounting location that allows adequate airflow and access for maintenance. Use certified wall anchors or brackets suitable for the wall material and confirm the mounting surface can support the cabinet plus installed equipment. For environments requiring higher ingress protection or locking security, consider a different cabinet model with suitable IP rating or lock options.
