i-tec Universal 5x 4K/60Hz Display Docking Station + Power Delivery 100W

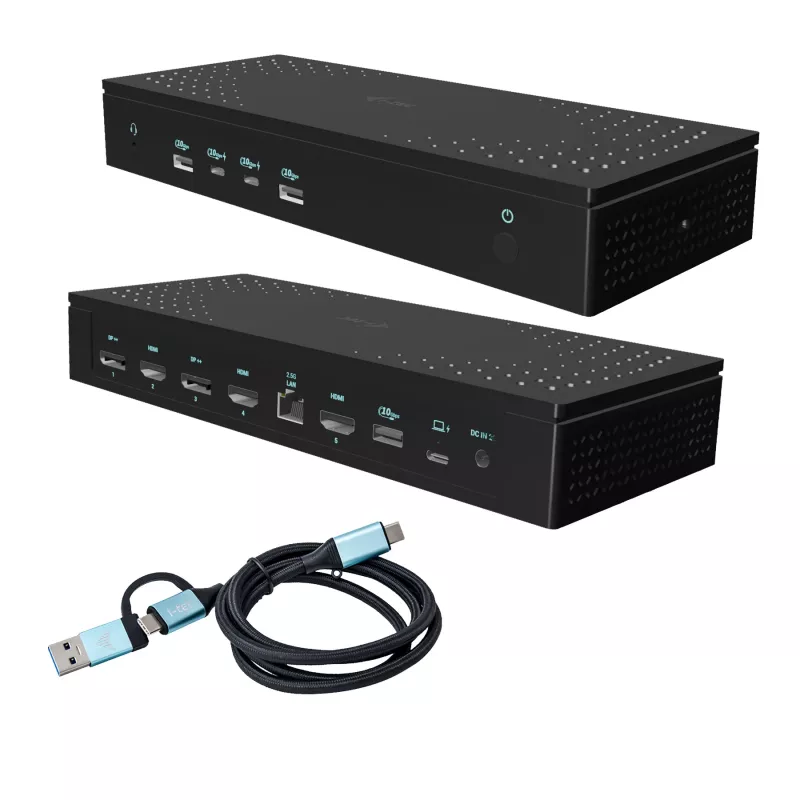

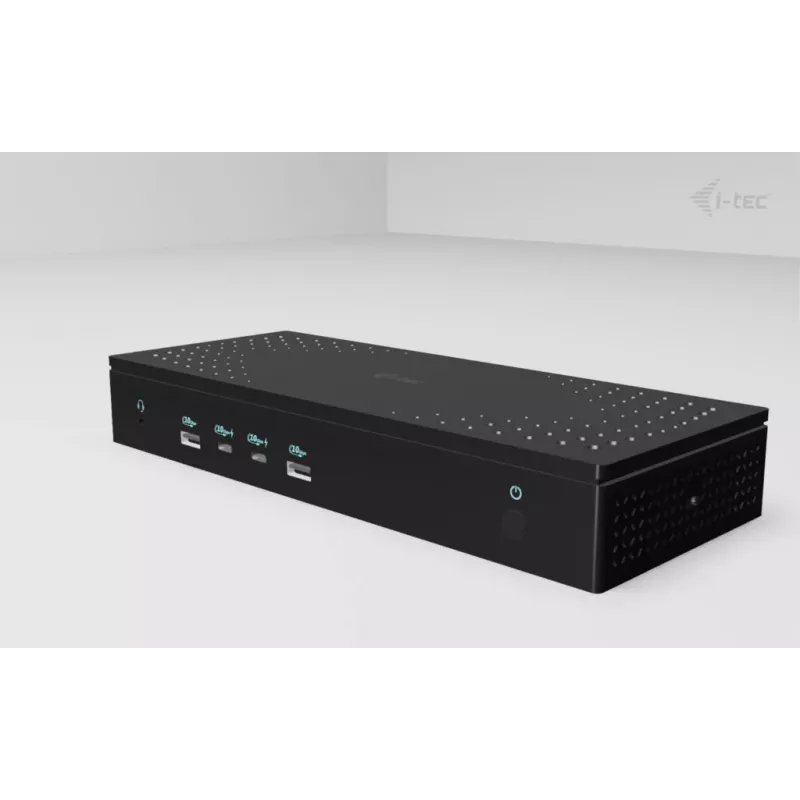

The docking station delivers maximum connectivity and display performance for users who need multiple external monitors without sacrificing resolution or refresh rate. It supports up to five external monitors with 4K/60Hz, or a single monitor at 8K/60Hz. The dock includes two USB-C fast-charging ports (up to 15W) for smartphones and tablets, high-speed USB-A/C data ports, a 2.5 Gbps LAN port and standard audio I/O. It is compatible with virtually any notebook via a USB connection and can be mounted behind a VESA-compatible monitor using the i-tec VESA mount.

Advantages

High multi-monitor capability: up to 1x 8K/60Hz or 5x 4K/60Hz for stable image quality and high refresh rates. Flexible connectivity with three HDMI and two DisplayPort video outputs, plus multiple high-speed USB ports. Two USB-C ports provide up to 15W charging for mobile devices. Wired network performance is improved with a 2.5 Gbps LAN port. The dock includes a power on/off button and supports installation behind a monitor to save desk space.

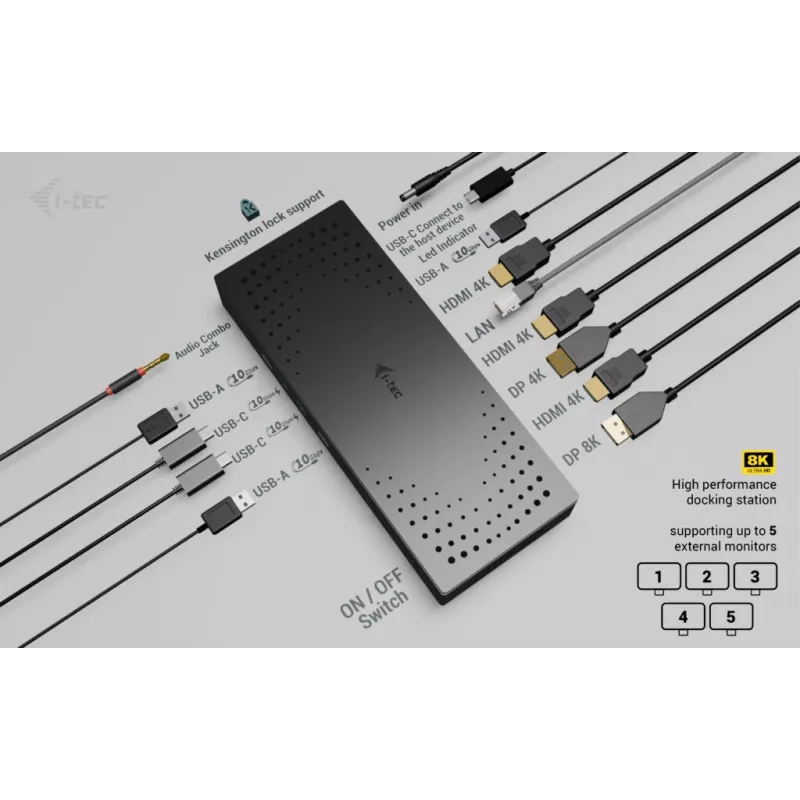

Key specifications

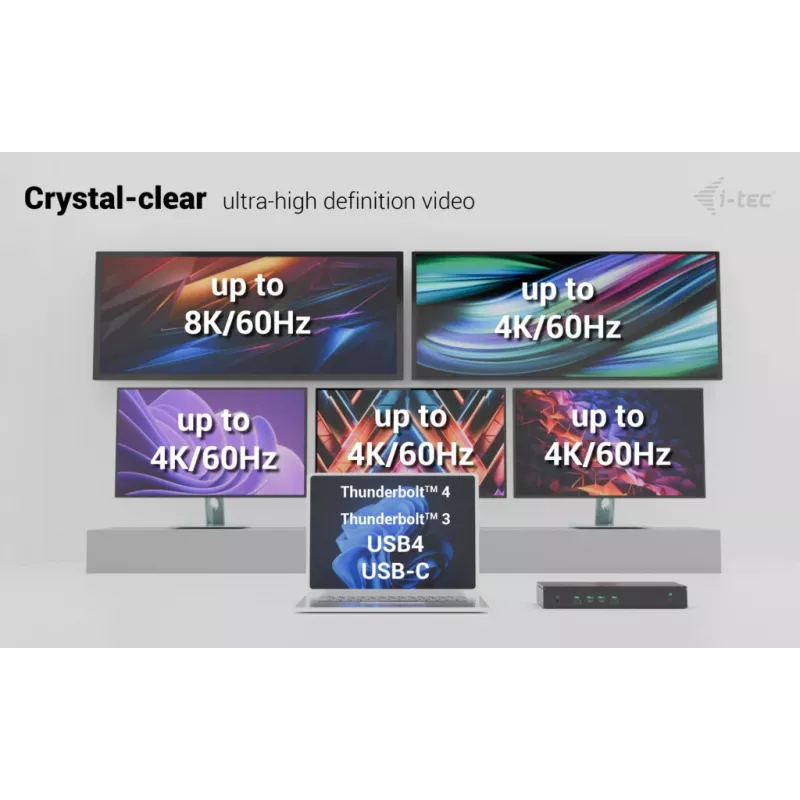

• Maximum monitors: up to 5 external displays (1x 8K/60Hz or 5x 4K/60Hz)

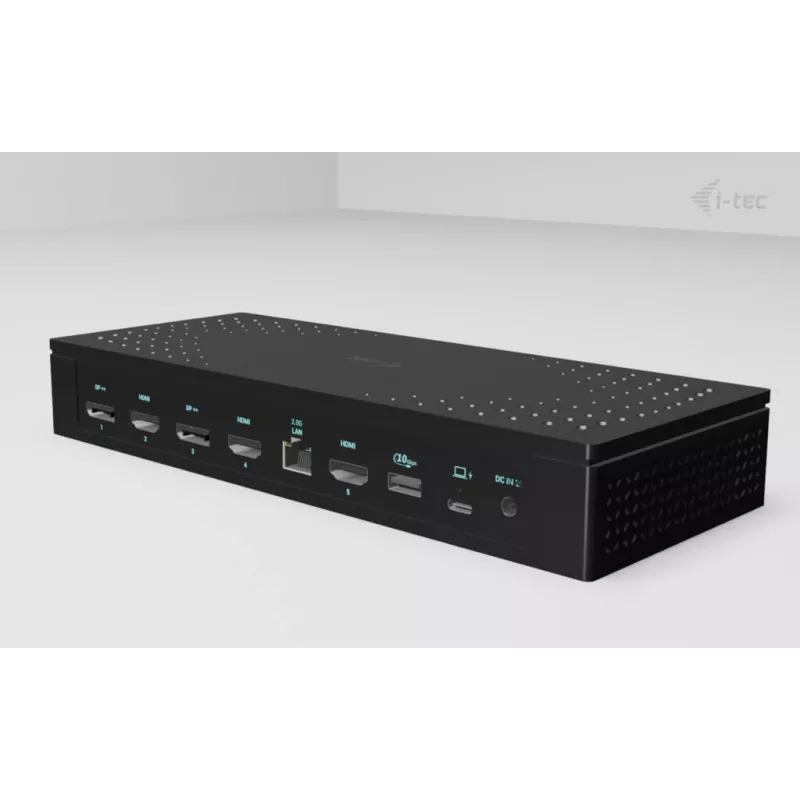

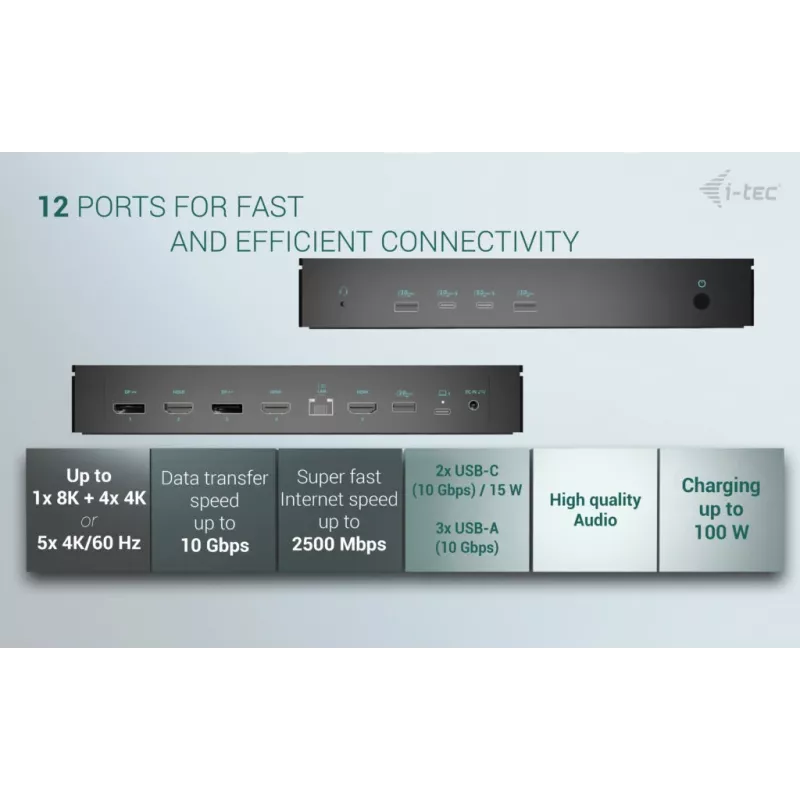

• Video outputs: 3x HDMI, 2x DisplayPort
• USB ports: 2x USB-C (10 Gbps, up to 15W charging), 3x USB-A (10 Gbps)
• LAN: 2.5 Gbps (10/100/1000/2500 Mbit)
• Audio: 5 mm combo audio/microphone port
• Laptop power delivery: up to 100 W
• Dock controls: power on/off button
• Mounting: supports VESA rear monitor installation (with i-tec VESA mount)

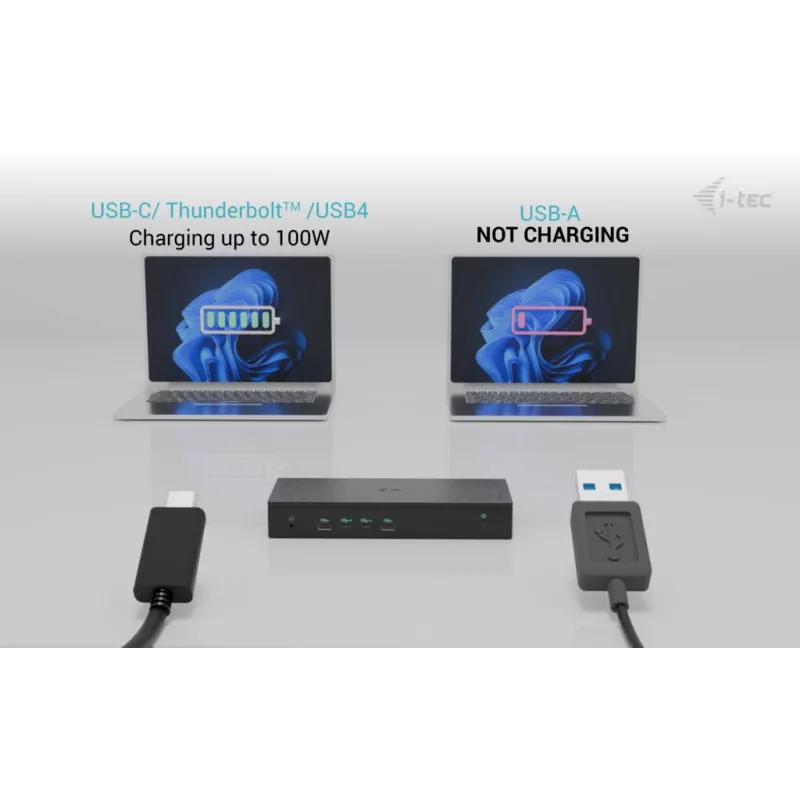

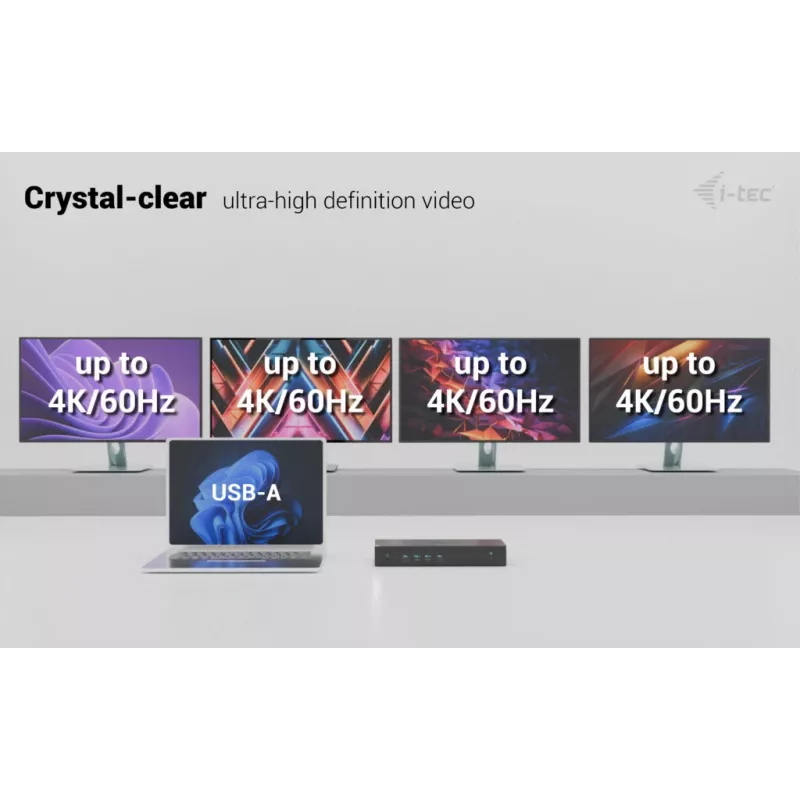

• Note: When connected via USB-A, only four monitors (video ports 1–4) are supported and notebook/tablet charging is not available

How to use

Connect the docking station to your notebook using any available USB port. Attach external monitors to the HDMI and DisplayPort outputs according to required resolutions and refresh rates. Use the USB-C charging ports to power mobile devices and the USB-A/C ports for high-speed data transfer. Connect a wired network cable to the 2.5 Gbps LAN port for improved network performance. If desired, mount the dock behind a VESA-compatible monitor using the i-tec VESA mount and use the on/off button to control dock power. If connecting via USB-A, expect support for only four external monitors and no notebook/tablet charging.

Recommendations

For full 5-monitor support and device charging, connect the dock via a compatible USB-C port on the notebook. Verify monitor capabilities and cables to achieve 4K/60Hz or 8K/60Hz where required.
