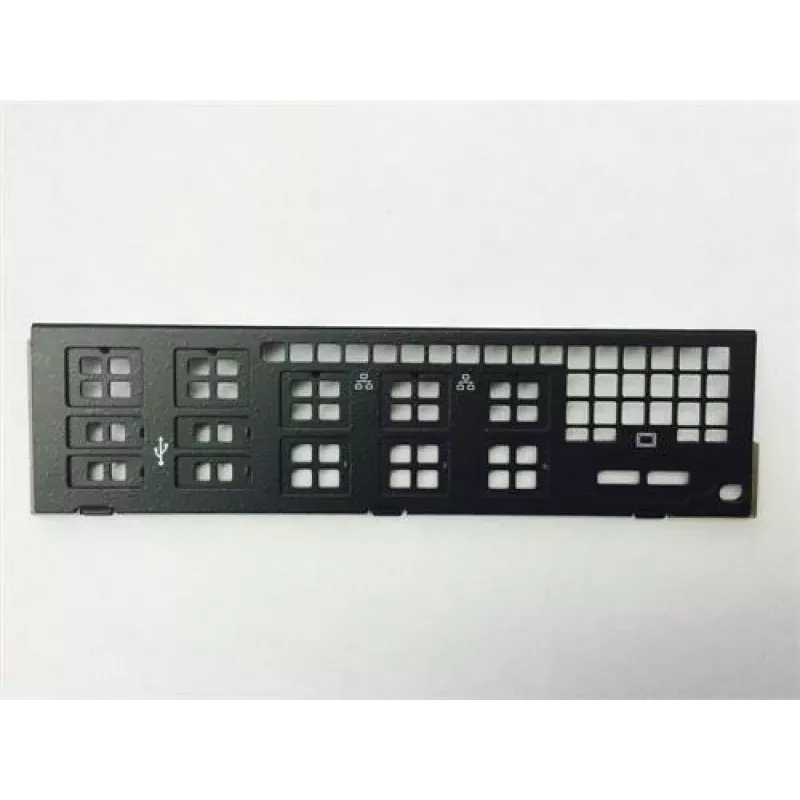

I/O κάλυμμα Supermicro MCP-260-00100-0B

1U I/O shield for Supermicro X10SDV-4C+-TP4F motherboards, compatible with SC510, SC505 and SC504 rack chassis. The metal shield provides correct alignment for rear-panel ports, protects internal components from dust and electromagnetic interference, and maintains proper airflow in a 1U server enclosure. Supplied as a single replacement part (MCP-260-00100-0B).

Advantages

The Supermicro MCP-260-00100-0B is made from durable metal to ensure a precise fit and long service life. It restores secure mounting and correct port access for the X10SDV-4C+-TP4F I/O layout, helps prevent cable strain at the rear panel, and contributes to EMI shielding. Being a genuine Supermicro spare, it matches OEM hole patterns and finishes for straightforward installation.

Suitable for

• Supermicro X10SDV-4C+-TP4F motherboard in 1U systems
• SC510 rack chassis
• SC505 rack chassis
• SC504 rack chassis

Key specifications

• Manufacturer: Supermicro
• Model / MPN: MCP-260-00100-0B
• Compatible motherboards: X10SDV-4C+-TP4F
• Compatible chassis: SC510, SC505, SC504 (1U)
• Contents: 1 x metal I/O shield
• EAN: 0672042222339

How to use

Remove the server from the rack and open the chassis according to the chassis manual. Align the I/O shield with the motherboard rear I/O cutout and the chassis mounting points, then press the shield into place until it clicks or seats flush with the chassis. Reinstall the motherboard or secure any retained screws/cages and close the chassis. Verify that all rear ports align correctly with the shield openings before returning the server to service.

Recommendations

Install or replace the I/O shield only when the server is powered down and disconnected from power and network cables. Use the OEM Supermicro MCP-260-00100-0B part to ensure correct port alignment and maintain warranty and support compatibility.
