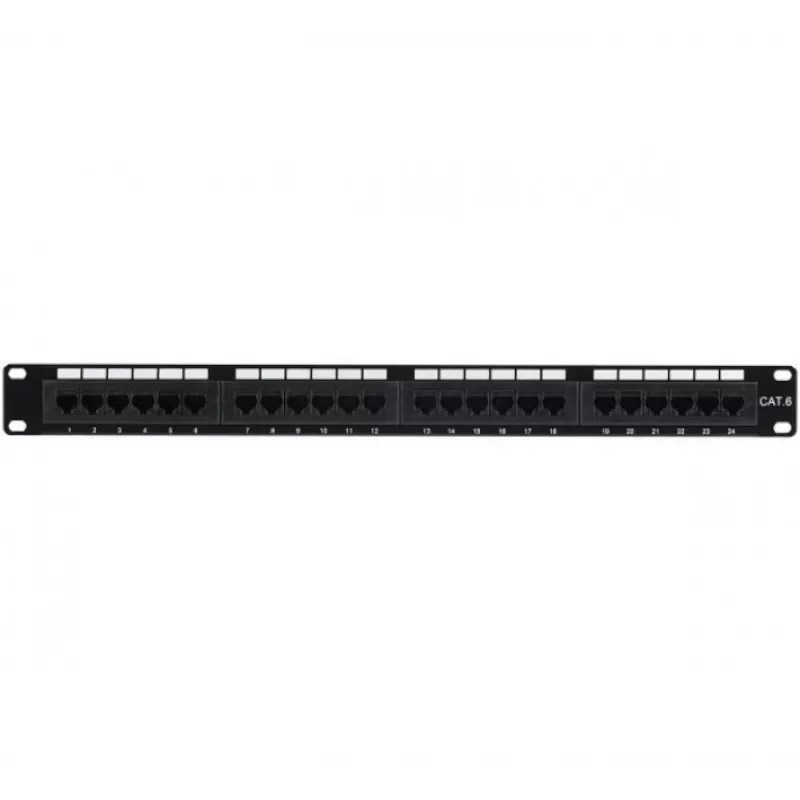

Hypertec 257250-HY Patch panel 1U

The Hypertec 257250-HY is a 1U rack-mounted patch panel designed for organizing U/UTP network cabling in server racks and communication cabinets. Finished in black, the 24‑port panel provides a compact, standard-height solution for terminating horizontal cabling runs and centralizing patch connections. The unit is intended to support orderly cable layout, reduce clutter and help maintain rack airflow in professional networking environments.

Advantages

This 1U patch panel offers a dense 24‑port configuration in a slim rack footprint, enabling efficient use of rack space. The black finish provides a uniform appearance in racks, while its metal construction delivers physical stability and resistance to routine handling. By grouping connections in one accessible location, the panel simplifies moves, adds and changes and contributes to consistent cable management practices.

Suitable for

Key specifications

How to use

Mount the patch panel into a standard 19-inch rack using appropriate rack screws and ensure it is secured at 1U height. Terminate each horizontal U/UTP cable onto the designated port following the color code recommended for the cabling standard in use (for example T568A or T568B). Label ports clearly to reflect downstream connections and use cable management accessories such as horizontal organizers or Velcro straps to route and secure patch cords, preserving signal integrity and preventing strain on terminations.

Recommendations

When installing the panel, maintain appropriate bend radius for U/UTP cables and avoid over-tightening fasteners. Use compatible keystone modules or pre-terminated patch cords for reliable connections, and plan port labeling to simplify future changes and maintenance.
