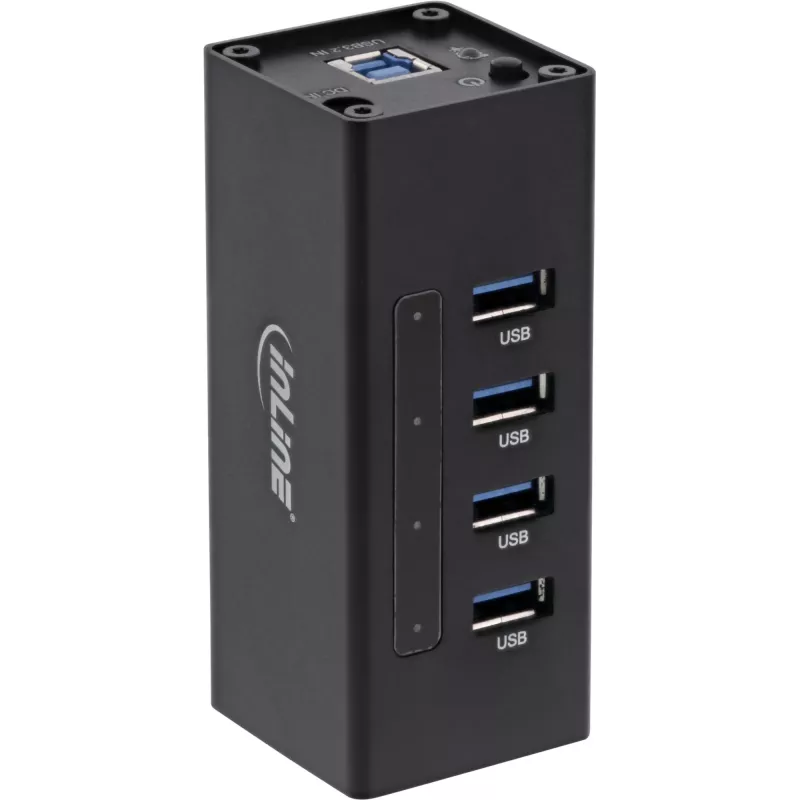

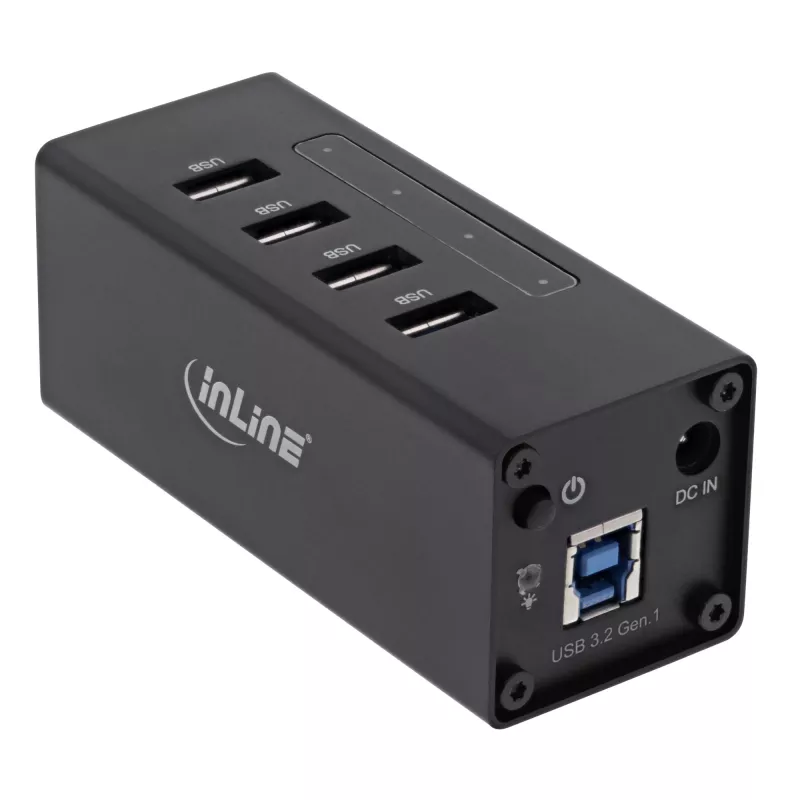

Hub USB 3.0 InLine, 4 θύρες, θήκη αλουμινίου, με τροφοδοτικό 2,5A

High data transfer rate:Achieve speeds of up to 5 Gb/s - ideal for demanding applications and fast file transfers.
Simultaneous operation:The enclosed 2.5 A power supply unit enables the simultaneous operation of several devices without any loss of performance.
Robust aluminium design:The elegant, black aluminium housing combines sophisticated design with outstanding stability.
Comprehensive compatibility:Thanks to backwards compatibility (USB 3.1, 3.0, 2.0, 1.1), you have flexible access to a wide range of systems.

Benefit from an active USB hub that has been specially developed for professional applications. With the InLine® USB 3.2 Gen.1 hub, you get a solution that meets the highest demands - whether in the data centre or in the office. The ultra-fast data transfer of up to 5 Gb/s and the reliable power supply via the high-performance power supply unit enable trouble-free operation, even if several devices are connected at the same time. The high-quality aluminium housing in elegant black is not only visually appealing, but also offers increased stability and durability. The simple operation via an ON/OFF button and the LED status indicators mean you always have an overview of the connection status.

Material: Aluminium
Colour: Black
Output interface:
35395A: 4x USB-A 3.2 Gen.1 sockets
35395B: 7x USB-A 3.2 Gen.1 sockets
System: from Windows XP and MAC OS X
Product dimensions:
35395A: 98 (L) x 50 (W) x 50 (H) mm
35395B: 140 (L) x 50 (W) x 50 (H) mm
Weight:
35395A: 160 g
35395B: 240 g

Scope of delivery:

1x USB 3.2 Gen.1 hub
1x USB 3.2 Gen.1 data cable (1 m)
1x operating instructions (German/English)
1x mains adapter (1.2 m) 12 V/2.5 A

Technical data power supply unit:

Input voltage: 220-250 V AC
Input alternating current frequency: ~50/60 Hz, 1.2 A
Output voltage: 12.0 V DC
Output current: max. 2.5 A
Output power: 30.0 W
Average efficiency in operation: 86.99 %
Efficiency at low load (10 %): 82.95 %
Power consumption at no load: 0.09 W

InLine USB 3.0 Hub, 4 port, aluminium case, with 2.5A power supply. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Aluminium. Power source type: DC, Input voltage: 12 V. Width: 40 mm, Depth: 100 mm, Height: 40 mm. Quantity per pack: 1 pc(s), Package width: 102 mm, Package depth: 150 mm

How to use

Connect the hub to a host computer using the Type-A cable provided. Plug the AC adapter into a mains outlet and the hub to enable the active power supply. Insert USB devices into the hub’s downstream ports; the host system will detect connected devices automatically. For high-speed transfers, use USB 3.0/3.2 compatible cables and devices. Safely eject storage devices from the operating system before unplugging to avoid data loss.

Recommendations

Place the hub on a flat, ventilated surface to ensure adequate cooling of the aluminium case. Use the supplied AC adapter when connecting several power-hungry devices to maintain stable operation and avoid relying solely on bus power from the host.
