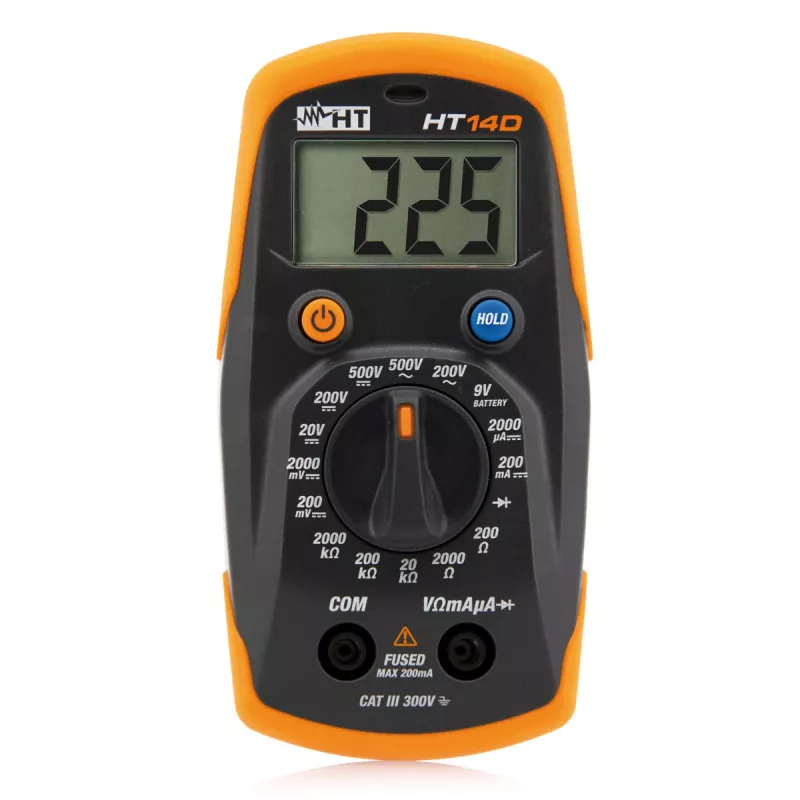

HT Instruments HT14D Ψηφιακό πολύμετρο CAT III 300 V, CAT II 600 V, 2000 Counts 1010160

The HT14D stands out with its 2000-count LCD and auto-ranging capability, making it a practical choice for everyday electrical measurements. It safely handles CAT III 300 V and CAT II 600 V environments, backed by overload protection.

Highlights

• 2000-count LCD display with data hold
• Auto-ranging for AC/DC voltage, current, resistance, capacitance, and frequency
• Diode and continuity tests with buzzer
• Powered by two AAA batteries

In daily use

Whether checking outlets, troubleshooting circuits, or testing components, the HT14D provides reliable readings. Its compact design and clear display make it suitable for both bench and field work.

Full specifications

• DC voltage range: 200 mV / 2 V / 20 V / 200 V / 600 V
• AC voltage range: 200 V / 600 V
• DC current range: 200 µA / 2 mA / 20 mA / 200 mA / 10 A
• AC current range: 200 µA / 2 mA / 20 mA / 200 mA / 10 A
• Resistance range: 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ
• Capacitance range: 2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF
• Frequency range: 2 kHz / 20 kHz
• Diode test: Yes
• Continuity test: Yes (with buzzer)
• Safety category: CAT III 300 V, CAT II 600 V
• Auto-ranging: Yes
• Data hold: Yes
• Power supply: 2x 1.5V AAA batteries
• Overload protection: Yes
• Display type: LCD

Final note

A dependable multimeter for general electrical work, offering essential functions and safety ratings without unnecessary complexity.
