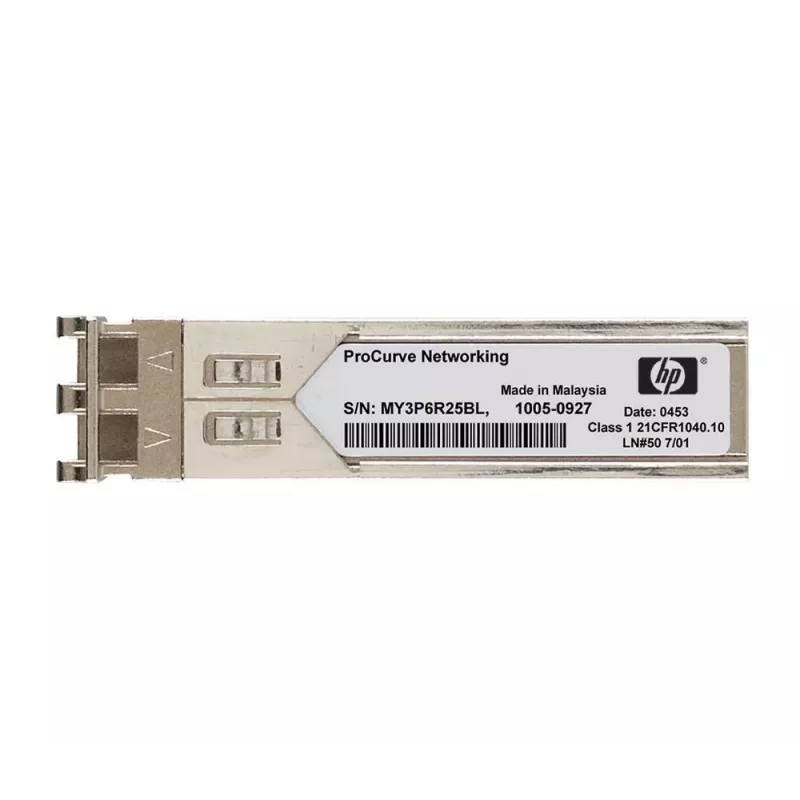

Πομποδέκτης SFP+ HP Enterprise X130 10GBase-SR LC (JD117B-RFB)

HP Enterprise X130 10GBase-SR LC (JD117B-RFB) is a hot-pluggable SFP+ optical transceiver designed for short-reach 10 Gigabit Ethernet over multimode fiber. The module fits SFP+ ports on switches and servers and provides high-speed fiber connectivity for data center links, server uplinks and enterprise LANs. The transceiver uses an LC connector and supports 10GBase-SR signaling for reliable short-distance multimode fiber links.

Advantages

The HP Enterprise X130 SFP+ transceiver offers compact hot-pluggable design and compatibility with SFP+ form-factor ports, enabling quick installation and replacement without powering down equipment. It supports 10G speeds over multimode fiber using an LC connector and is optimized for short-reach links typically found in data centers and enterprise networks. The module is compliant with the 10GBase-SR standard, ensuring interoperability with equipment that follows the same specification.

Suitable for

• Short-reach 10 Gigabit Ethernet links over multimode fiber
• Server uplinks to top-of-rack and aggregation switches
• Data center interconnects and rack-to-rack fiber connections
• Enterprise LANs requiring compact 10G fiber ports

Key specifications

• Brand: HP Enterprise
• Model / MPN: JD117B-RFB
• Form factor: SFP+
• Standard: 10GBase-SR
• Connector: LC
• Hot-pluggable: Yes
• Intended use: Short-reach multimode fiber 10G links
• EAN: 5706998322692

How to use

Install the SFP+ transceiver into a compatible SFP+ port on a switch, server or network appliance while the device is powered on if hot-plug capability is supported. Connect multimode fiber using an LC patch cable, ensuring proper polarity and secure connections on both ends. Configure the network device port for 10 Gigabit operation if required by the equipment’s management interface. Monitor link status through the switch or server management tools to verify that the transceiver is functioning and the link is established.

Recommendations

Use OM3/OM4 multimode fiber for optimal short-reach 10GBase-SR performance and follow manufacturer guidelines for fiber attenuation and connector cleaning. Verify compatibility with host equipment and firmware requirements before deployment. Store unused transceivers in anti-static packaging and avoid touching optical interfaces to maintain performance.
