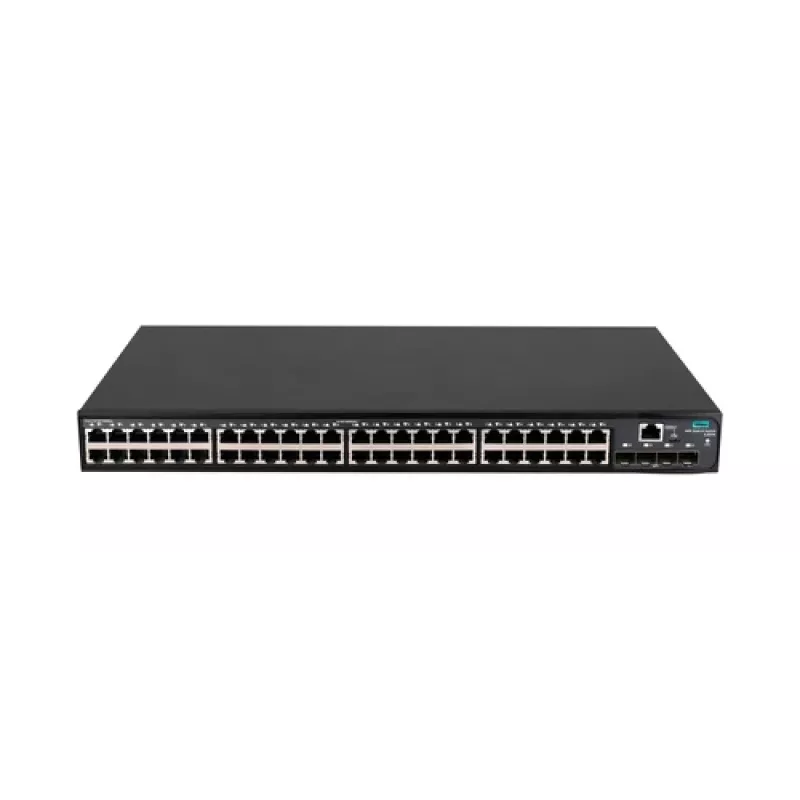

HPE FlexNetwork 5140 48G 4SFP+ EI Switch - 48x Gigabit Ethernet, 4x 10G SFP+ Uplinks, Layer 3 Smart Managed, Rack-Mountable

The HPE FlexNetwork 5140 48G 4SFP+ EI switch stands out by combining enterprise-class Layer 3 routing with a compact 1U footprint, delivering wire-speed performance for demanding campus and branch networks. Unlike basic Layer 2 switches, this model supports OSPF, RIP, and BGP, enabling dynamic routing and efficient traffic segmentation without additional hardware.

Highlights

• 48 x 10/100/1000Base-T RJ-45 ports for high-density Gigabit connectivity
• 4 x 1/10 Gigabit Ethernet SFP+ uplink ports for flexible fiber or copper uplinks
• Layer 3 smart managed with static routing, RIP, OSPF, BGP, and ECMP
• 176 Gbps switching capacity and 130.9 Mpps throughput for non-blocking performance
• Advanced security: ACLs, 802.1X, port security, DHCP snooping, IP Source Guard
• Energy-efficient IEEE 802.3az support reduces power consumption during low activity

In daily use

Deploy this switch at the aggregation or access layer where high port density and routing intelligence are required. The 48 Gigabit ports easily accommodate IP phones, access points, and workstations, while the four SFP+ uplinks provide 10G connectivity to the core. Manage the device via CLI, web GUI, or SNMP, and leverage features like VLANs, QoS, and jumbo frames up to 9216 bytes to optimize traffic for voice, video, and data. Redundancy protocols such as RSTP, MSTP, and LACP ensure network resilience, and the internal AC power supply simplifies installation in standard racks.

Full specifications

• Device type: Layer 3 smart managed switch
• Form factor: 1U rack-mountable
• Ports: 48 x 10/100/1000Base-T (RJ-45)
• Uplink ports: 4 x 1/10 Gigabit Ethernet SFP+
• Switching capacity: 176 Gbps
• Throughput: 130.9 Mpps
• MAC address table size: 16384 entries
• Routing protocols: OSPF, RIP, BGP, static IP routing, ECMP
• Management: CLI, web-based GUI, SNMP, RMON, Telnet, SSH, HTTPS
• VLAN support: IEEE 802.1Q
• QoS: Yes
• PoE support: No
• Jumbo frame support: up to 9216 bytes
• Security: ACL, 802.1X, port security, DHCP snooping, IP Source Guard
• Redundancy: RSTP, MSTP, LACP
• Power supply: Internal AC 100-240V
• Energy efficiency: IEEE 802.3az
• MTBF: 30 years

Final note

For organizations that need reliable Layer 3 switching with 10G uplinks in a space-saving design, the HPE FlexNetwork 5140 48G 4SFP+ EI delivers the performance, security, and manageability required for modern converged networks.
