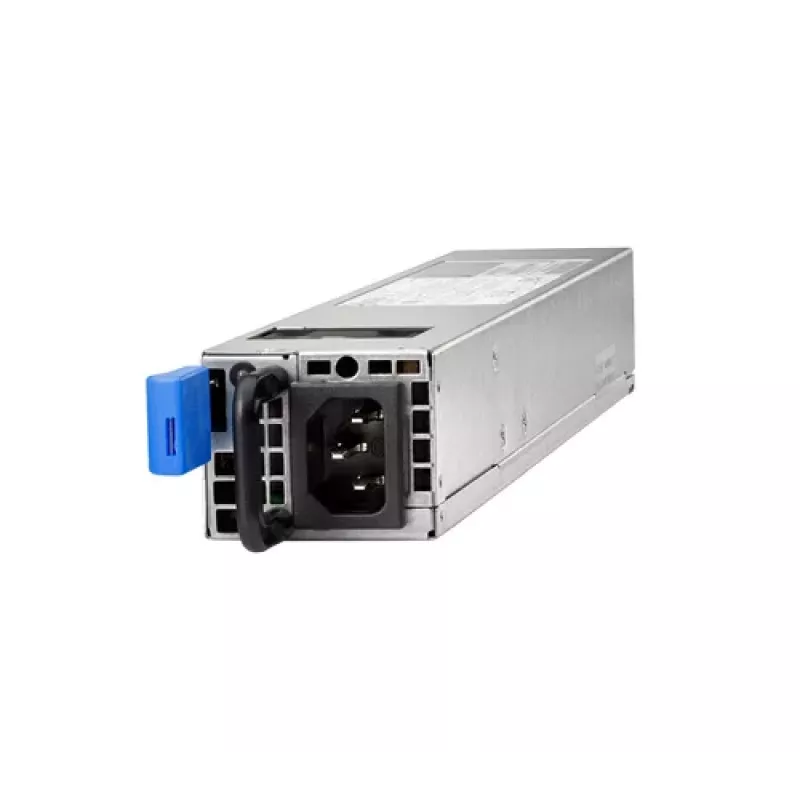

HPE Aruba 650W Hot-Plug Redundant Power Supply (JL633A)

The HPE Aruba JL633A is a high-performance 650W hot-plug redundant power supply module designed for HPE Aruba 2930F Switch Series. It provides reliable and efficient power delivery with 80 PLUS Platinum certification, ensuring energy savings and reduced operational costs. The hot-plug capability allows for replacement without powering down the switch, maximizing uptime. With active Power Factor Correction (PFC) and comprehensive protection features, this power supply module is ideal for mission-critical network environments.

Advantages

Hot-plug and redundant design ensures continuous operation and easy maintenance. 80 PLUS Platinum efficiency reduces power consumption and heat generation. Active PFC improves power quality and complies with international standards. Robust protection against over-voltage, over-current, short-circuit, and over-temperature safeguards your equipment.

Suitable for

• HPE Aruba 2930F Switch Series
• Enterprise and data center networks requiring high availability
• Environments where energy efficiency is a priority

Key specifications

• Product Type: Power supply - hot-plug / redundant module
• Input Voltage: AC 100-240 V
• Frequency Required: 50/60 Hz
• Output Power: 650 Watt
• Power Efficiency: 80 PLUS Platinum
• Hot-Plug Capability: Yes
• Redundancy Support: Yes
• Form Factor: Plug-in module
• Power Factor Correction (PFC): Active PFC
• Protection Features: Over-voltage, Over-current, Short-circuit, Over-temperature
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Operating Humidity: 15% to 95% (non-condensing)
• Certifications: UL, CSA, TUV, CE, FCC Class A, RoHS
• Input Current: 8A (max @ 100V AC)

Recommendations

For optimal performance and reliability, use this power supply module with compatible HPE Aruba 2930F switches. Ensure proper ventilation and adhere to operating temperature and humidity ranges. This module is a direct replacement for existing power supplies in supported switch models.
