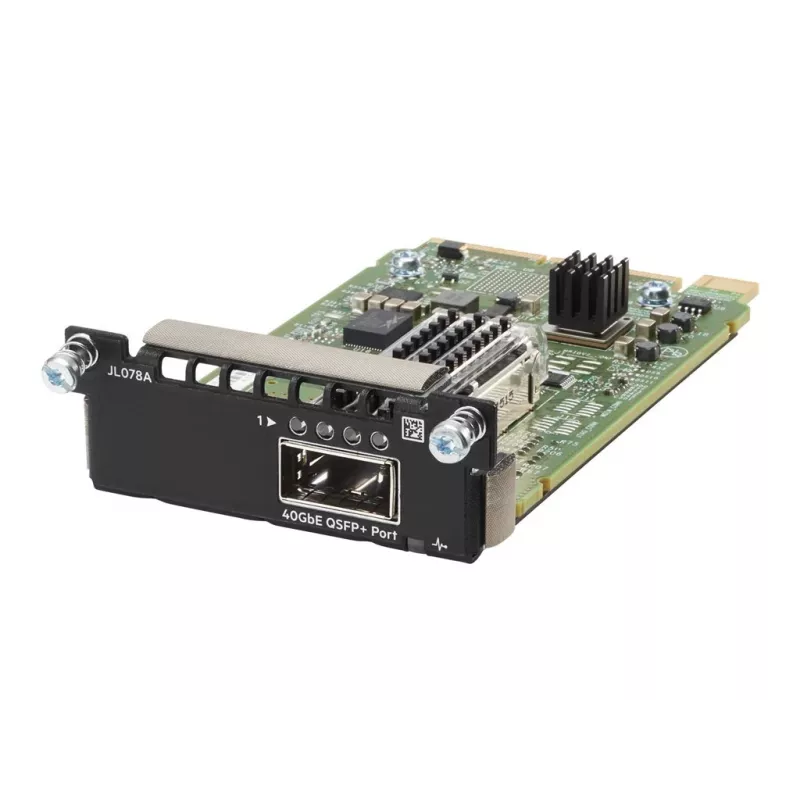

HPE Aruba 3810M 1QSFP+ 40GbE Module

The HPE Aruba 3810M 1QSFP+ 40GbE Module is a high-performance networking module designed to enhance the capabilities of the Aruba 3810M switch series. This module provides one 40 Gigabit Ethernet QSFP+ port, enabling high-speed uplinks and aggregation for demanding network environments. It supports advanced features such as Quality of Service (QoS), IGMP snooping, and broadcast storm control, ensuring reliable and efficient data transmission. The module is hot-swappable and easy to install, making it an ideal choice for expanding network capacity without disrupting operations.

Advantages

This module offers a cost-effective solution for upgrading to 40GbE speeds, providing increased bandwidth for data-intensive applications. It is fully compatible with the Aruba 3810M switch series, ensuring seamless integration and management. The module's compact design saves space in the switch chassis, while its low power consumption helps reduce operational costs.

Suitable for

• Enterprise data centers requiring high-speed server and storage connectivity
• Campus networks needing high-bandwidth uplinks between switches
• Virtualized environments where low latency and high throughput are critical

Key specifications

• One 40GbE QSFP+ port
• Port speed: 40 Gbps
• Switch type: Module & No fixed ports
• Number of ports: 1 Port
• Networking standards: IEEE 802.3ba (40GBASE-SR4, 40GBASE-LR4, etc.)
• Quality of Service (QoS) support: Yes
• IGMP snooping: Yes
• Broadcast storm control: Yes
• MAC address filtering: Yes
• System event log: Yes
• Management protocols: SNMP, RMON, sFlow
• LED indicators: Yes
• Rack mounting: Yes
• Product colour: Silver
• Certification: CE, FCC, UL
• Harmonized System (HS) code: 85176200

Recommendations

For optimal performance, pair this module with compatible 40GbE QSFP+ transceivers and cables. Ensure your switch firmware is updated to the latest version to support all features. This module is ideal for network upgrades where future scalability is a priority.
