HP μοτέρ κίνησης DC SL-FIN501H

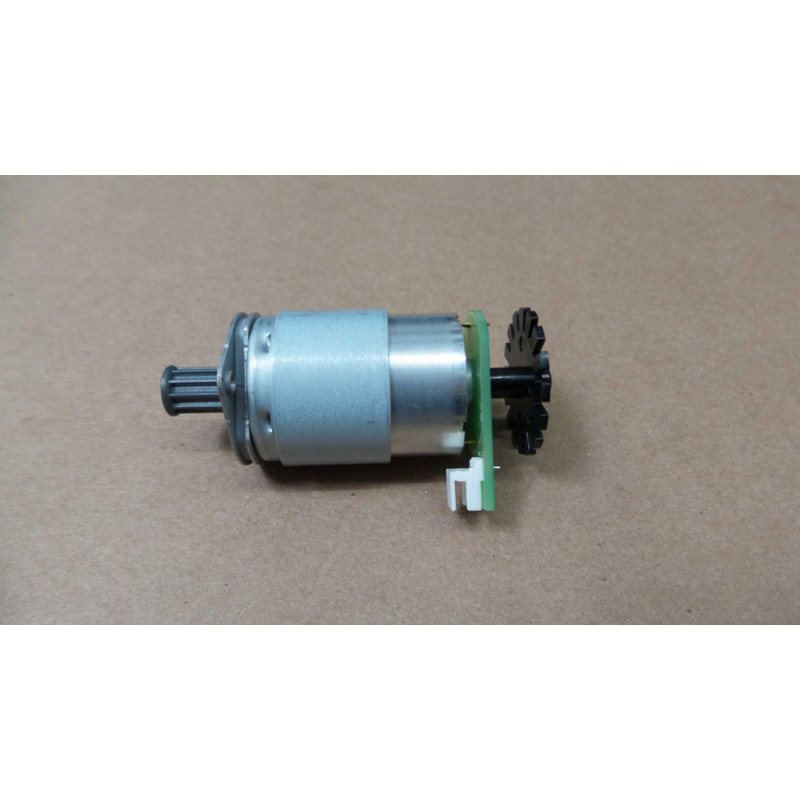

Precision DC brushed motor engineered for HP LaserJet 4000, 4050, and 4100 series printers, delivering reliable paper feed and printhead movement with a 24V DC supply and low-noise operation. Its robust metal alloy and plastic composite housing ensures durability in demanding office environments, while the bi-directional rotation and D-cut shaft provide exact mechanical integration.

Advantages

This motor offers a long lifespan exceeding 5000 hours, reducing maintenance frequency and downtime. The 2-pin header connector simplifies installation, and the compact design fits seamlessly into existing printer chassis. With a nominal current of only 1.0 A, it balances performance with energy efficiency.

Suitable for

• HP LaserJet 4000 Series printers
• HP LaserJet 4050 Series printers
• HP LaserJet 4100 Series printers
• Paper feed mechanisms and printhead drive systems

Key specifications

• Motor type: DC brushed
• Voltage rating: 24V DC
• Nominal current: 1.0 A
• Nominal power: 24 W
• Shaft diameter: 2.3 mm (round with flat/D-cut)
• Connector: 2-pin header
• Mounting: 2-hole screw-mount
• Operating temperature: 0°C to 60°C
• Expected lifespan: >5000 hours
• Rotation: Bi-directional

Recommendations

For optimal performance, ensure the motor is installed by a qualified technician and verify compatibility with your specific printer model. Regular cleaning of the drive mechanism will extend the motor's operational life.
