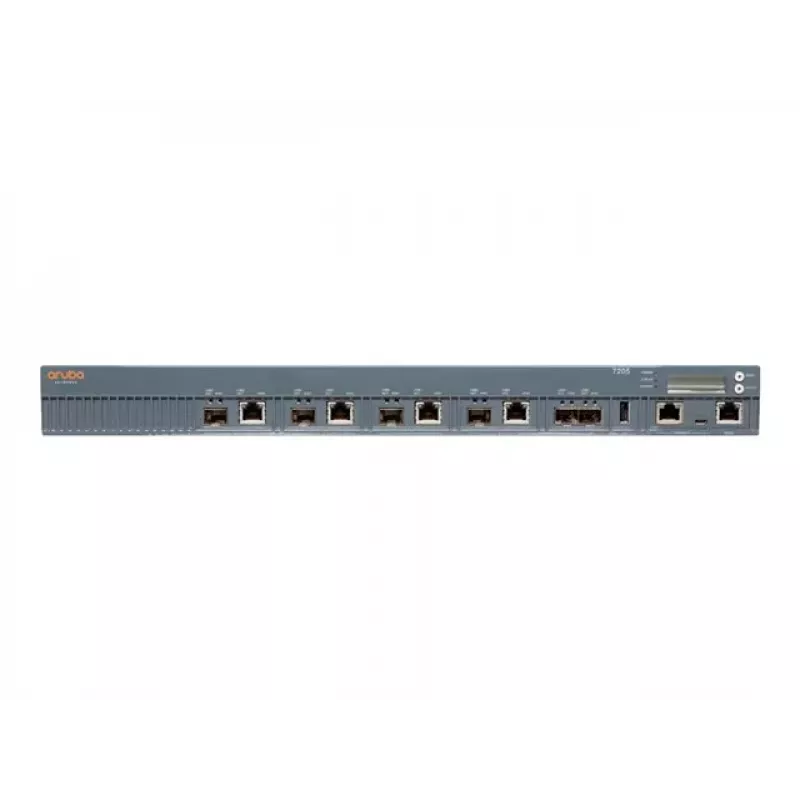

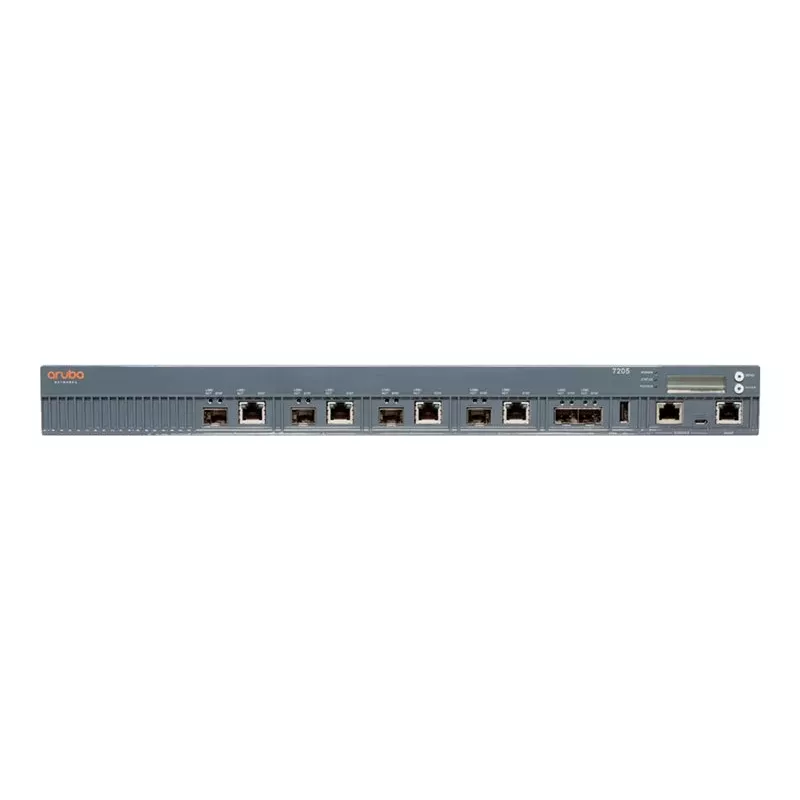

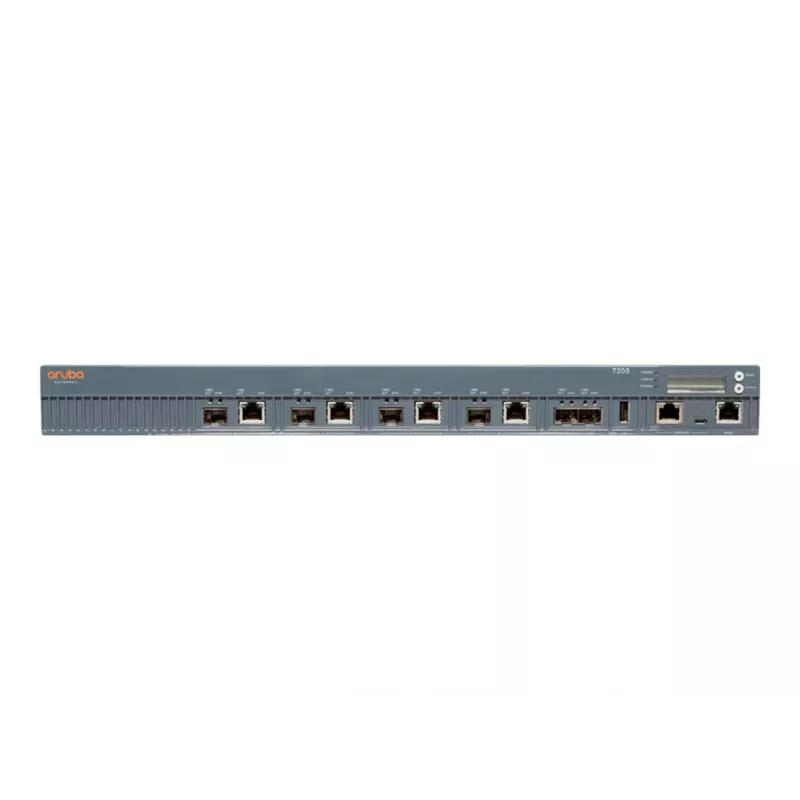

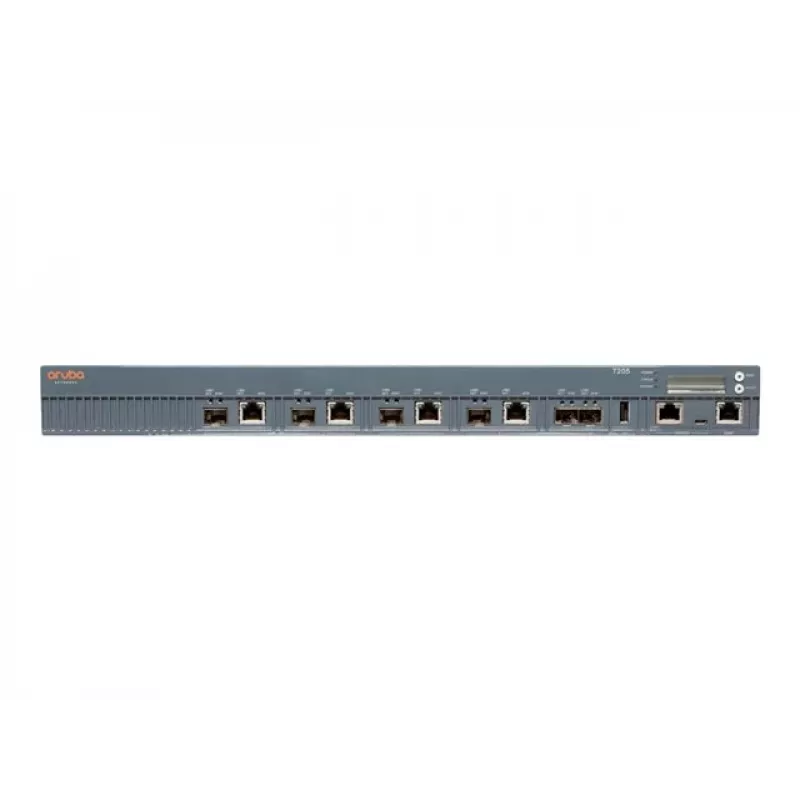

HP Aruba 7205 (RW) Wireless LAN Controller - 10 Gigabit Ethernet

The HP Aruba 7205 (RW) Controller is a high-performance wireless LAN controller designed for enterprise networks. It provides centralized management, security, and optimization for up to 256 access points and 8,192 concurrent devices, making it ideal for medium to large deployments.

Advantages

Delivers robust security with stateful firewall, VPN, and intrusion detection/prevention. Supports high-density environments with 20 Gbps firewall throughput and 10 Gbps encryption throughput. The 1U rack-mountable form factor fits seamlessly into data centers.

Suitable for

• Enterprise wireless networks requiring centralized AP management
• Organizations needing high-performance VPN and security features
• Deployments in Rest of World (RW) regulatory domain

Key specifications

• Device Type: Wireless LAN Controller
• Form Factor: 1U Rack-mountable
• Max Access Points: 256
• Max Concurrent Devices: 8,192
• Firewall Throughput: 20 Gbps
• Encryption Throughput: 10 Gbps
• IPSec VPN Tunnels: 8,192
• Ethernet Ports: 4 x 10 Gigabit Ethernet (SFP+)
• Management Ports: 1 x RJ-45 Console, 1 x USB 2.0
• Processor: Dual-core ARM
• RAM: 4 GB DDR3 SDRAM
• Flash Memory: 8 GB
• Operating System: ArubaOS
• Power Supply: Internal AC (Optional Redundant PSU support)
• Regulatory Domain: RW

Recommendations

Ideal for enterprises seeking a scalable, secure wireless solution. Pair with Aruba access points for optimal performance.
