Hormann Rotamatic PL2 868MHz BiSecure Σετ για Δίφυλλες Πόρτες έως 8m

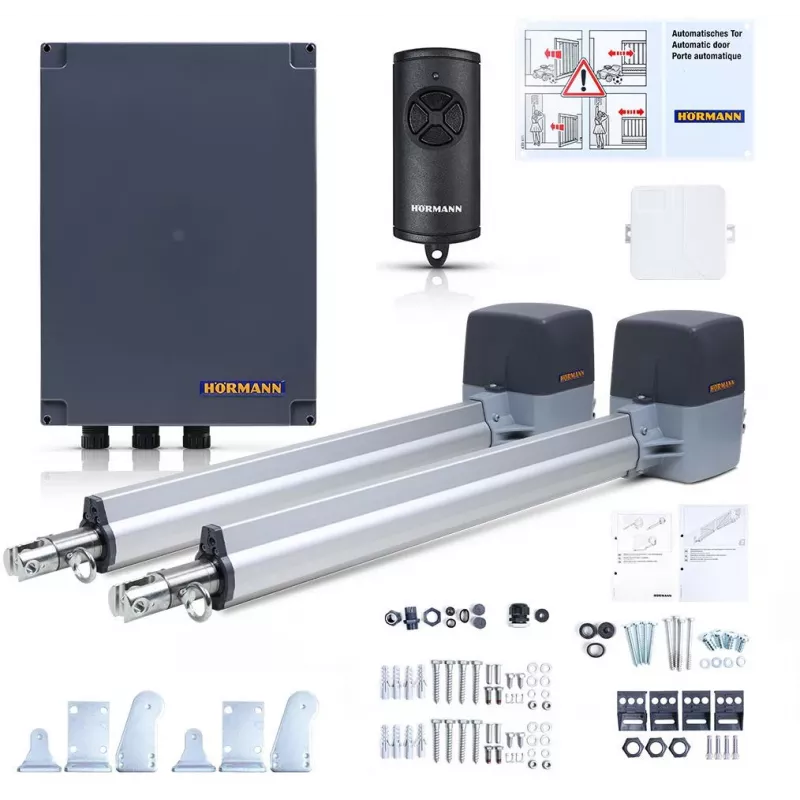

Automate double-leaf swing gates up to 8 metres wide with this complete Hormann Rotamatic PL2 BiSecure set. The electromechanical linear operators deliver smooth, reliable movement for leaves up to 4 metres and 400 kg each, while the 868 MHz BiSecure radio ensures secure, interference-free control.

Advantages

Powerful 24 V DC motors with soft start/stop and automatic force limitation protect both gate and users. The IP44-rated aluminium and weather-resistant plastic housings withstand outdoor conditions from -20°C to +60°C. Two 5-button HS 5 BS hand transmitters and a separate A/B 460 control unit offer flexible operation and easy integration with safety devices like photocells and warning lights.

Suitable for

• Private residential double-leaf swing gates up to 8 m total width
• Leaf widths up to 4 m and leaf weights up to 400 kg
• Installations requiring secure 868 MHz BiSecure radio technology
• Gates with up to 120° opening angle and max. 25 cycles per day

Key specifications

• Gate type: double-leaf swing gate
• Max total gate width: 8000 mm
• Max leaf width: 4000 mm
• Max leaf weight: 400 kg

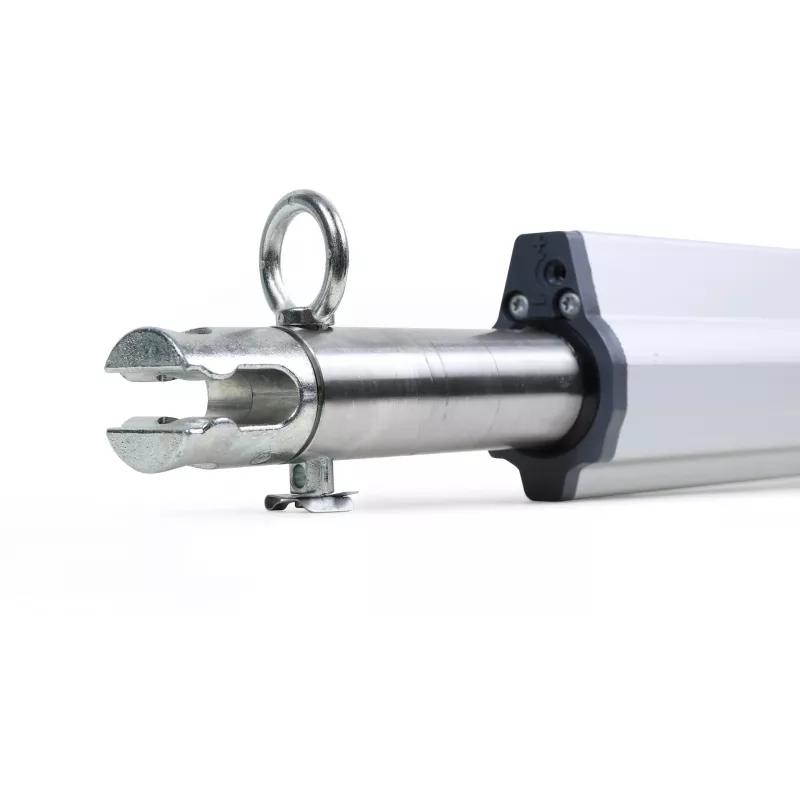

• Motor type: electromechanical linear operator
• System voltage: 230 V AC, 50 Hz; motor voltage: 24 V DC
• Protection class: IP44
• Radio system: Hormann BiSecur 868 MHz
• Max opening angle: 120°
• Duty cycle: max. 25 cycles/day
• Operating temperature: -20°C to +60°C
• Soft start/stop: adjustable
• Obstacle detection: automatic force limitation
• Control unit: separate A/B 460
• Included remotes: 2 x HS 5 BS (5-button, BiSecur)
• Housing material: aluminium / weather-resistant plastic
• Max pull/push force: 2500 N
• Operator speed: approx. 18-22 mm/s
• Safety device connections: yes (photocells, warning light)

Recommendations

For reliable, secure automation of heavy double-leaf gates, this Hormann set provides robust performance and advanced BiSecure radio technology. Professional installation is recommended to ensure optimal safety and longevity.
