Τροφοδοτικό 12V, 4,5A, 60W, ράγα DIN

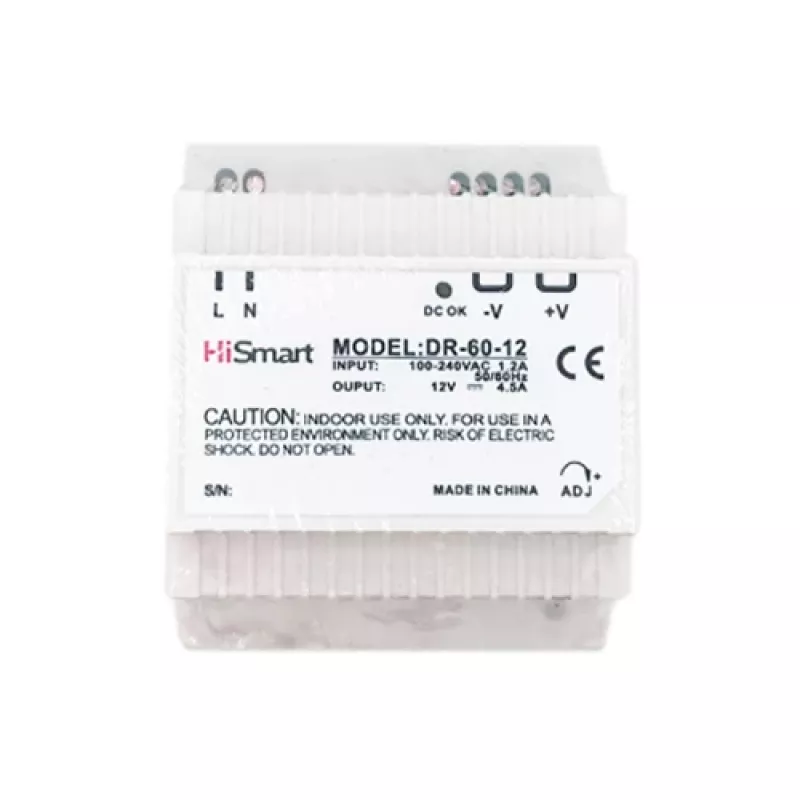

This HISMART power supply delivers a stable 12V DC output at 4.5A with a maximum power of 60W, designed for reliable industrial and automation applications. It features a compact DIN rail mountable design for easy installation on standard 35mm rails, ensuring efficient power conversion in control cabinets and equipment racks.

Key features

• Input voltage range: AC 90-264V, 47-63Hz with low inrush current (up to 1mA at 240V AC)
• Adjustable output voltage: 12V DC with -9%/+10% fine-tuning capability
• Protection: Overload, overvoltage, and short circuit protection for safe operation
• Cooling: Free air convection, no fan required for silent and maintenance-free performance
• Efficiency: Up to 82% for reduced energy loss and heat generation
• Operating temperature: -20°C to +60°C, suitable for harsh environments
• Compact dimensions: 65.5 x 125.2 x 100mm, weight 0.8kg for space-saving installation
