Hikvision DS-K4G100(O-STD) Βάση στήριξης

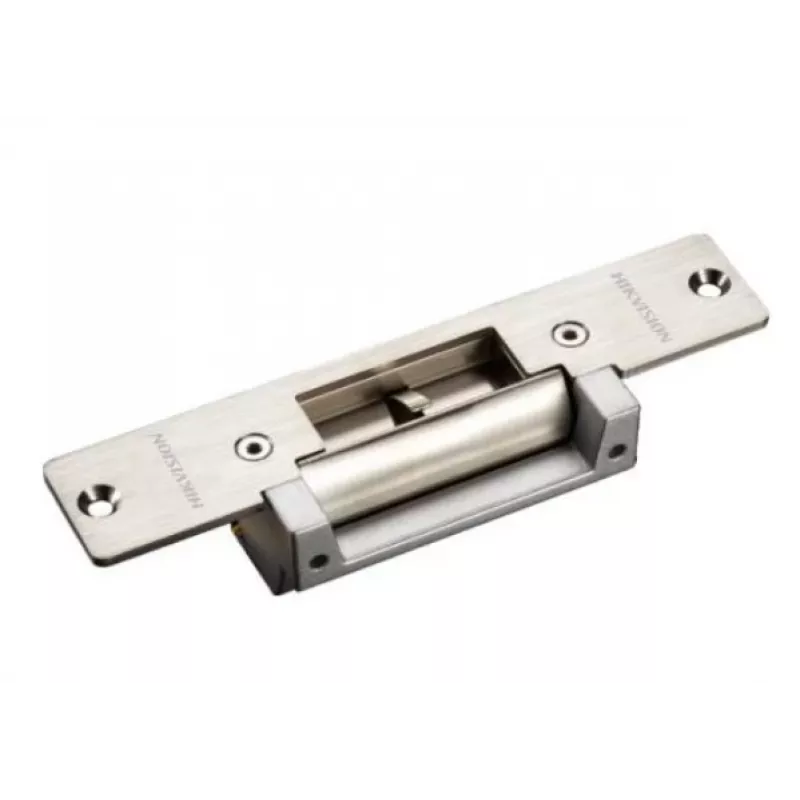

The Hikvision DS-K4G100(O-STD) is an electric strike lock designed for access control. It features a stainless steel latch and a faceplate with a wire drawing surface finish. The lock supports a maximum static linear load of 800 kg (1764 lb) and has a latch groove depth of 15 mm.

Key features

• Electric strike lock
• Fail-safe and fail-secure selectable
• Latch material: US304 stainless steel
• Faceplate material: wire drawing surface
• Supports static linear load up to 800 kg (1764 lb)
• Electromagnetic coil rated for 100,000 operations
• Latch groove depth: 15 mm
• Strong suction prevents forced door opening when locked
• Double insulation
• Signal output: potential-free contact; NO output when locked, NC output when unlocked

Specifications

• Model: DS-K4G100
• Power supply: 12 VDC, 320 mA / 24 VDC, 160 mA ± 15%
• Operating temperature: -10°C to 55°C (14°F to 131°F)
• Operating humidity: 0 to 95% (non-condensing)
• Dimensions: 165 mm × 43.7 mm × 35 mm (6.5" × 1.7" × 1.4")
• Weight: 0.4 kg (0.9 lb)
• Material: Latch: stainless steel
• Holding force: Max. 800 kg (1764 lb)
• Door type: Wooden doors, metal doors, PVC doors
