HELOS Καλώδιο Patch Οπτικών Ινών OS2 Simplex LSZH 2,0mm SC/APC-LC/APC κίτρινο 15m

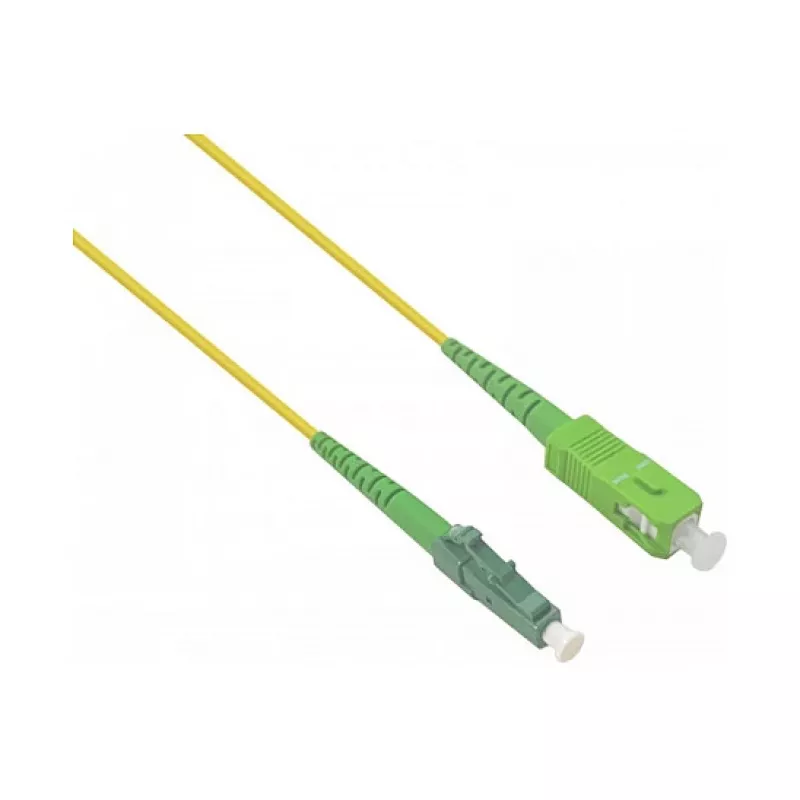

The HELOS LWL OS2 Patchkabel Simplex LSZH 2.0mm SC/APC-LC/APC Yellow 15m is a high-performance single-mode fiber optic patch cable designed for reliable data transmission in demanding network environments. With OS2 fiber type and APC polish, it ensures low insertion loss and high return loss, making it ideal for applications requiring minimal signal reflection.

Advantages

This patch cable offers excellent signal integrity with typical insertion loss ≤0.25 dB and return loss ≥60 dB. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces by emitting minimal smoke and no toxic halogen gases in case of fire. The 2.0 mm cable diameter provides flexibility while maintaining durability.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• FTTx (Fiber to the x) installations
• Local Area Networks (LAN) and Storage Area Networks (SAN)
• Any single-mode fiber optic application requiring APC connectors

Key specifications

• Fiber Type: OS2 (Single-mode)
• Connector A: SC/APC
• Connector B: LC/APC
• Cable Length: 15 m
• Cable Diameter: 2.0 mm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss: ≤ 0.25 dB (typical)
• Return Loss: ≥ 60 dB (typical)
• Attenuation at 1310nm: ≤ 0.35 dB/km
• Attenuation at 1550nm: ≤ 0.25 dB/km
• Operating Temperature: -20°C to +70°C
• Minimum Bend Radius: 10 mm (static), 20 mm (dynamic)
• Standards: IEC 60794-2, TIA/EIA-568.3-D

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC/APC and LC/APC ports. Store in a clean, dry environment.
