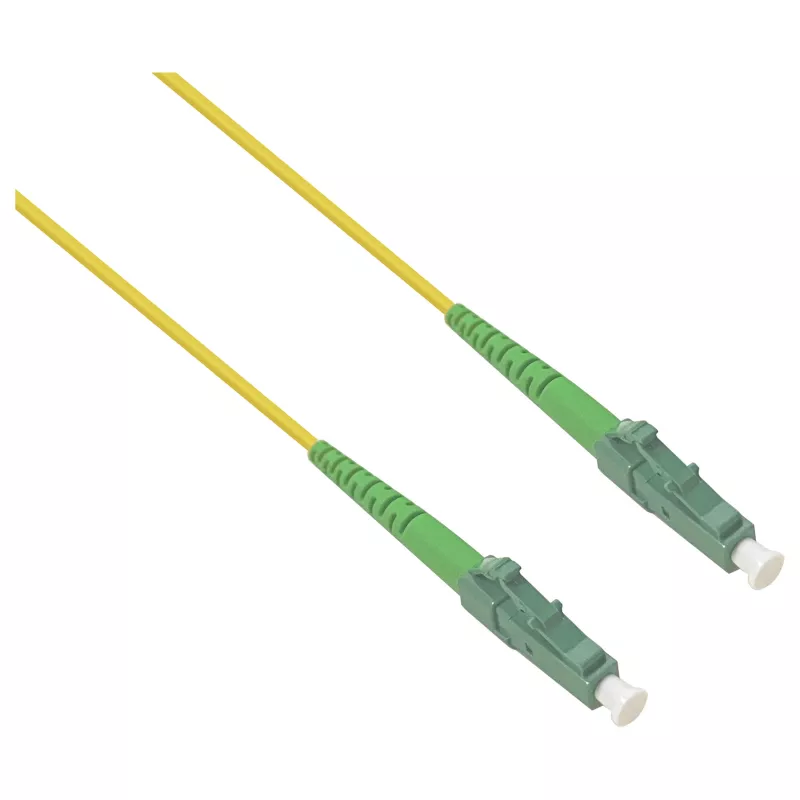

HELOS Καλώδιο Patch Οπτικών Ινών OS2 Simplex LSZH 2,0mm LC/APC-LC/APC κίτρινο 15m

The HELOS LWL OS2 Patchkabel Simplex LSZH 2.0mm LC/APC-LC/APC Yellow 15m is a high-performance fiber optic patch cable designed for single-mode applications. It features LC/APC connectors on both ends, ensuring low insertion loss and high return loss for reliable data transmission. The cable is constructed with a 2.0mm LSZH (Low Smoke Zero Halogen) jacket, making it safe for use in enclosed spaces. Ideal for FTTH, data centers, and telecommunications networks.

Advantages

Low insertion loss (≤0.2 dB) and high return loss (≥60 dB) ensure excellent signal integrity. LSZH jacket reduces toxic smoke in case of fire. Simplex design for single-fiber connections. Durable zirconia ceramic ferrule for long-lasting performance.

Suitable for

• Fiber-to-the-Home (FTTH) installations
• Data center patching
• Telecommunications networks
• Local Area Networks (LAN)
• Security and surveillance systems

Key specifications

• Fiber Type: Single-mode OS2
• Connector Type: LC/APC to LC/APC
• Cable Length: 15 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 2.0 mm
• Cable Color: Yellow
• Insertion Loss: ≤ 0.2 dB
• Return Loss: ≥ 60 dB
• Ferrule Material: Zirconia Ceramic
• Polish Type: APC
• Attenuation at 1310nm: ≤ 0.35 dB/km
• Attenuation at 1550nm: ≤ 0.25 dB/km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 20 mm
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to maintain bend radius. This cable is compatible with all standard LC/APC interfaces.
